BCHR-80 - Assembly instructions

  • Updated

This article explains how to assemble the BCHR-80 by Boretti.

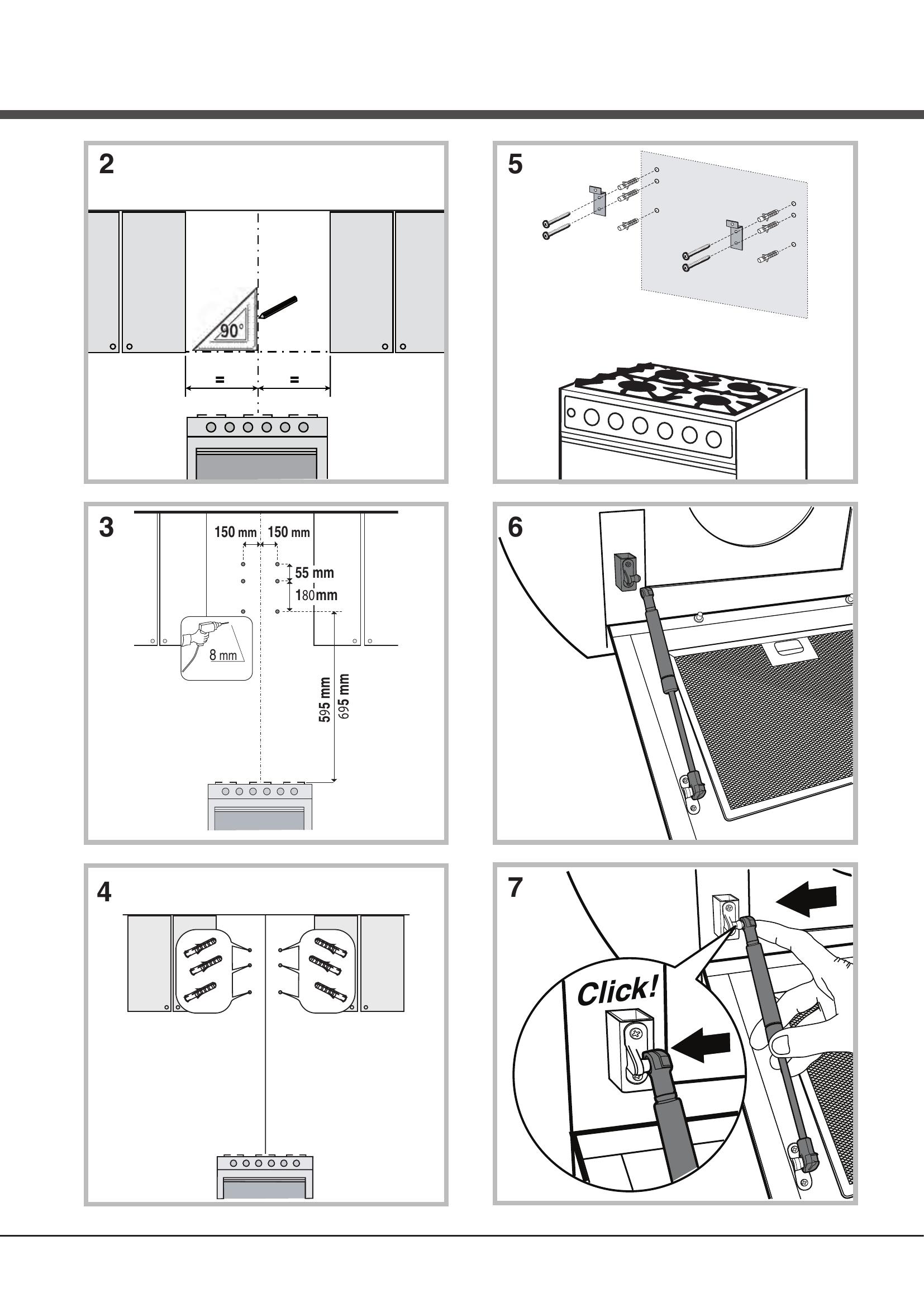

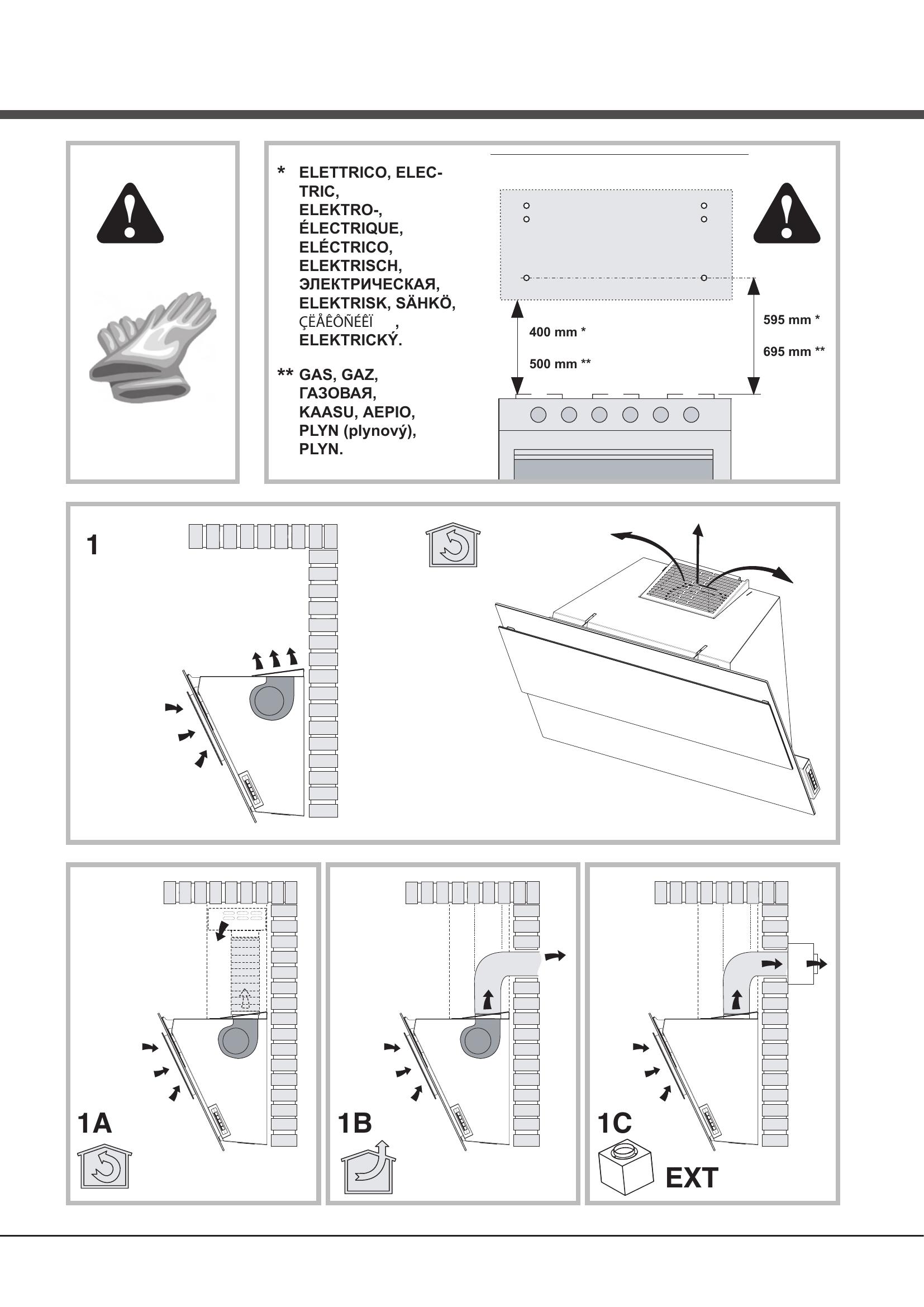

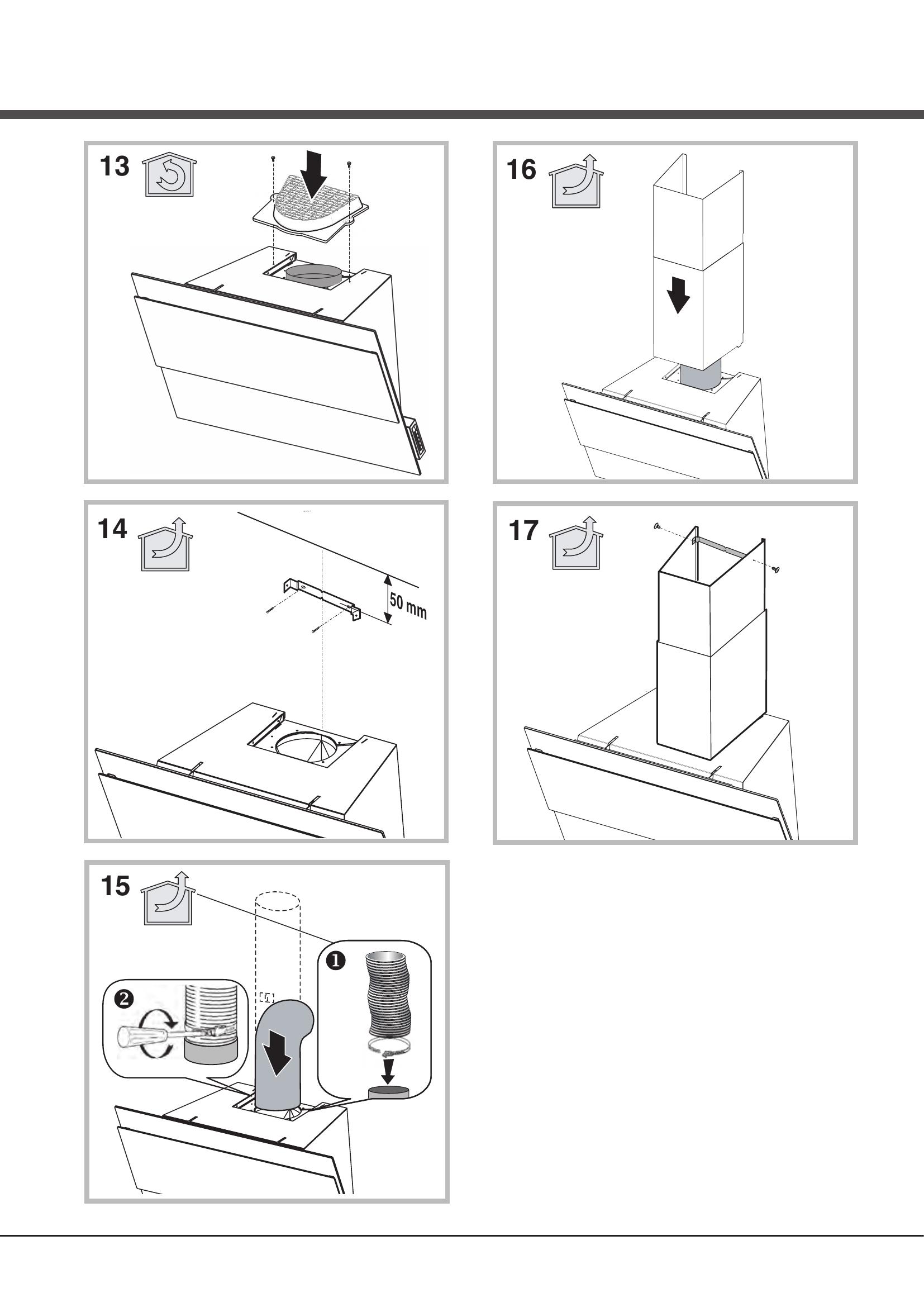

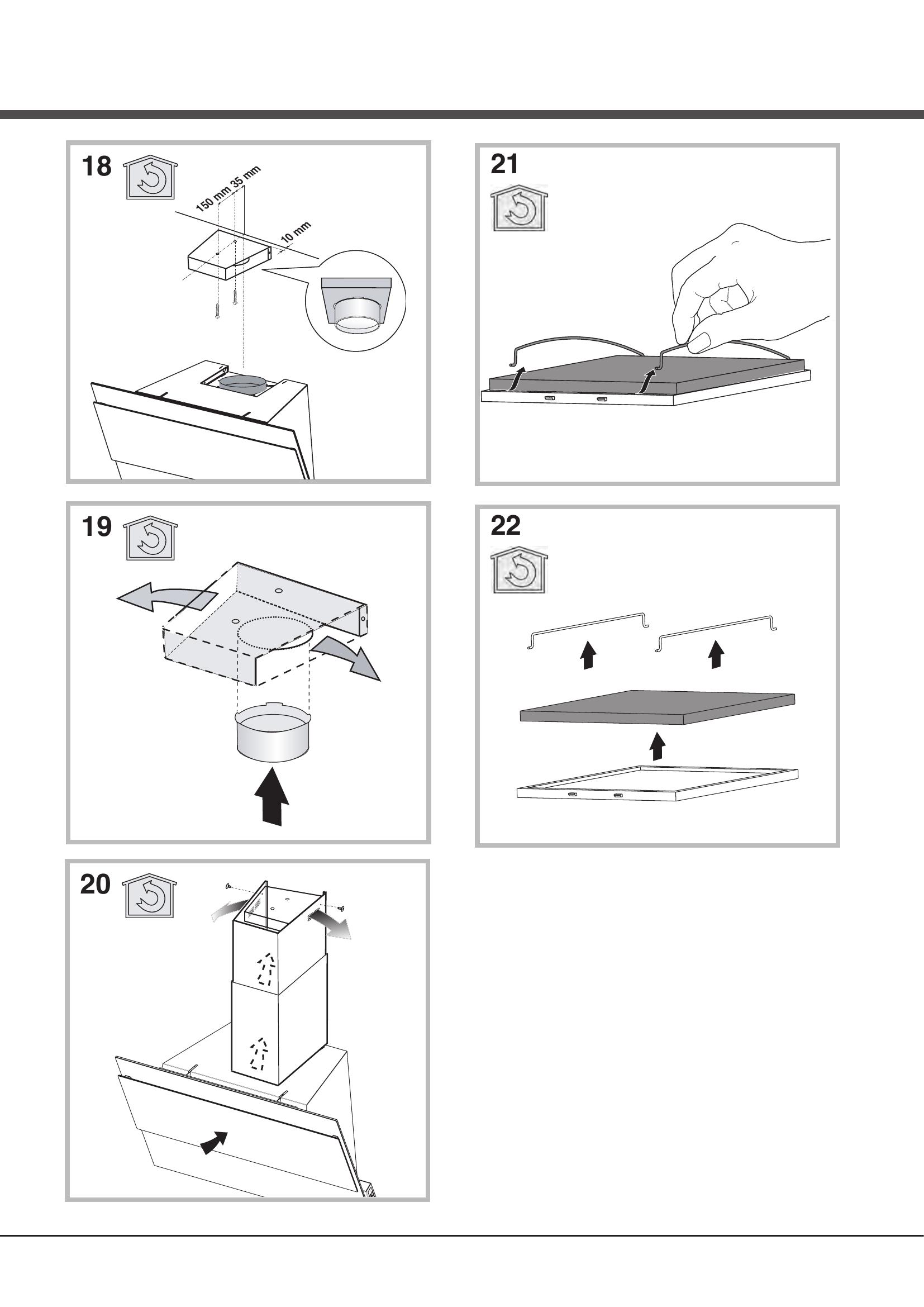

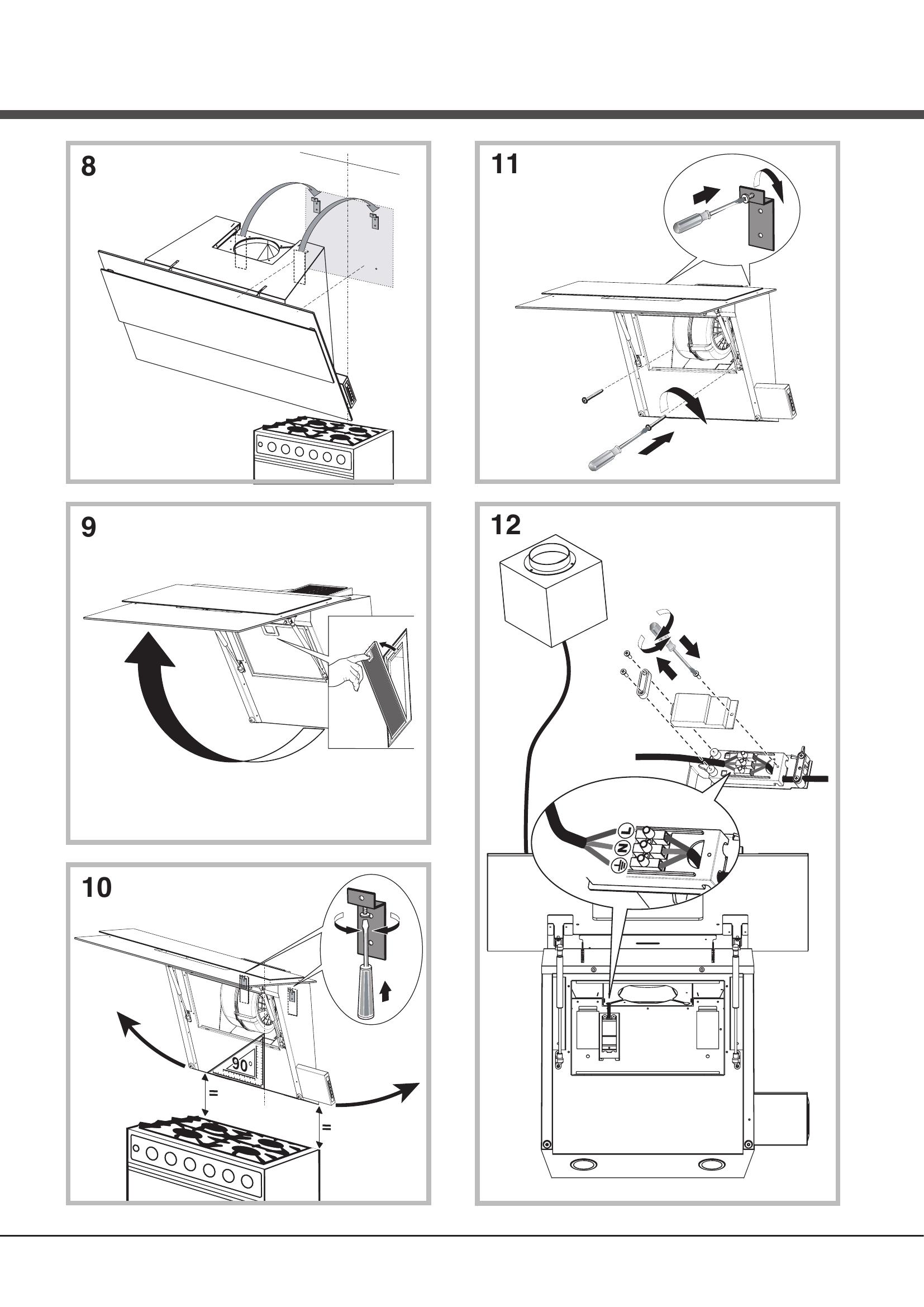

assembly - Page 1 assembly - Page 2 assembly - Page 3 assembly - Page 4 assembly - Page 5
