PARETE B 90 / PARETE P 90 - Assembly instructions

  • Updated

This article explains how to assemble the PARETE B 90 / PARETE P 90 by Boretti.

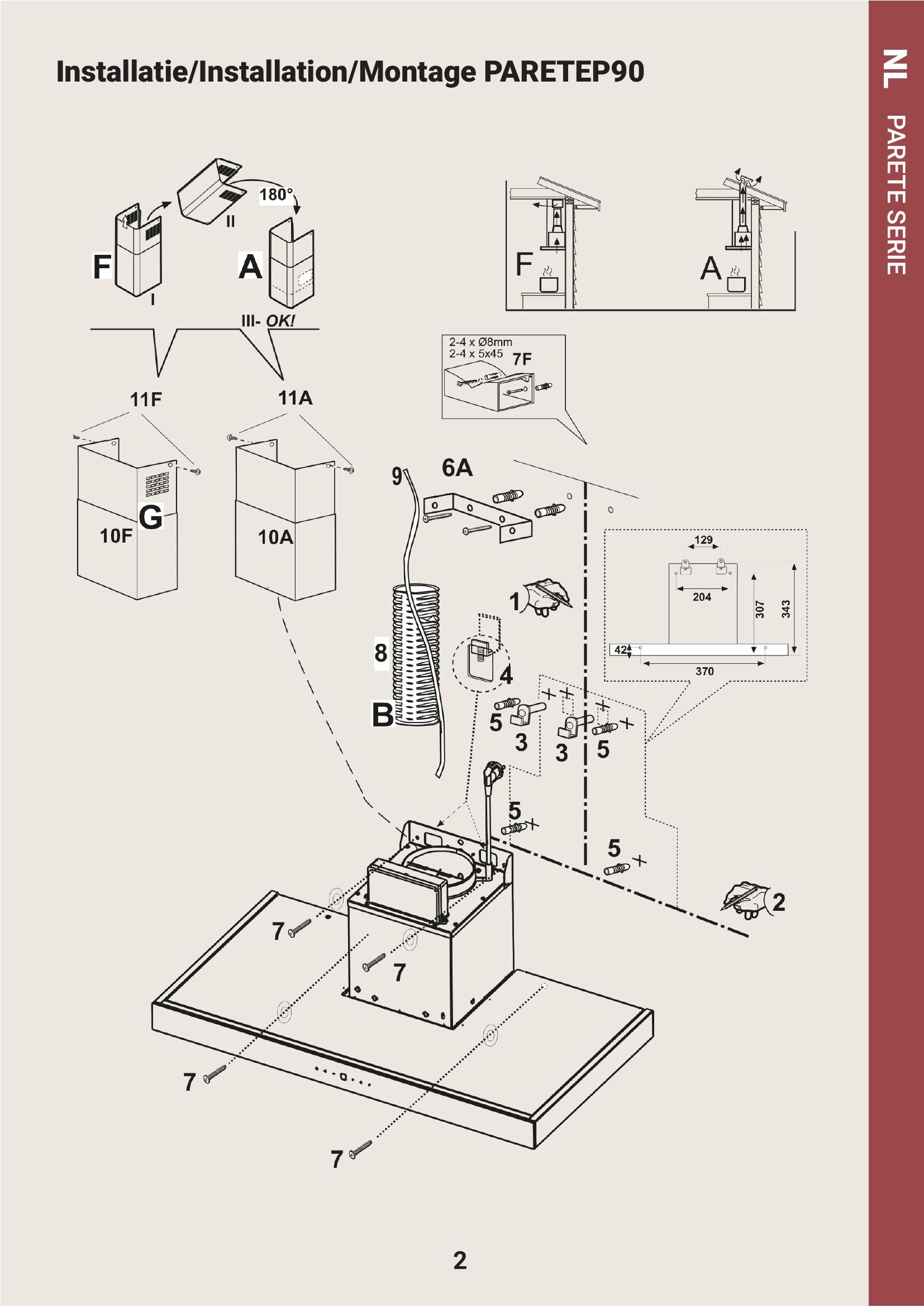

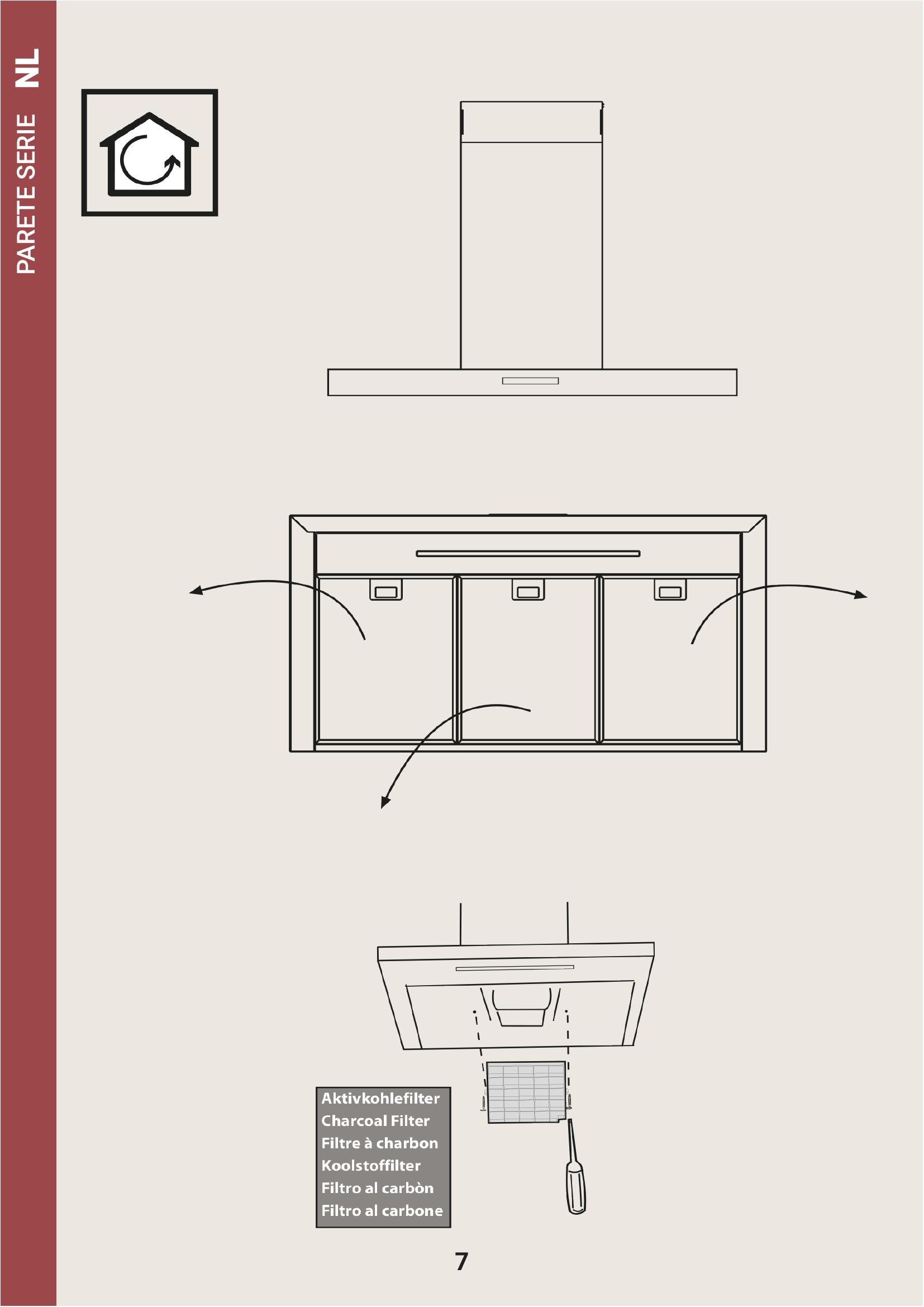

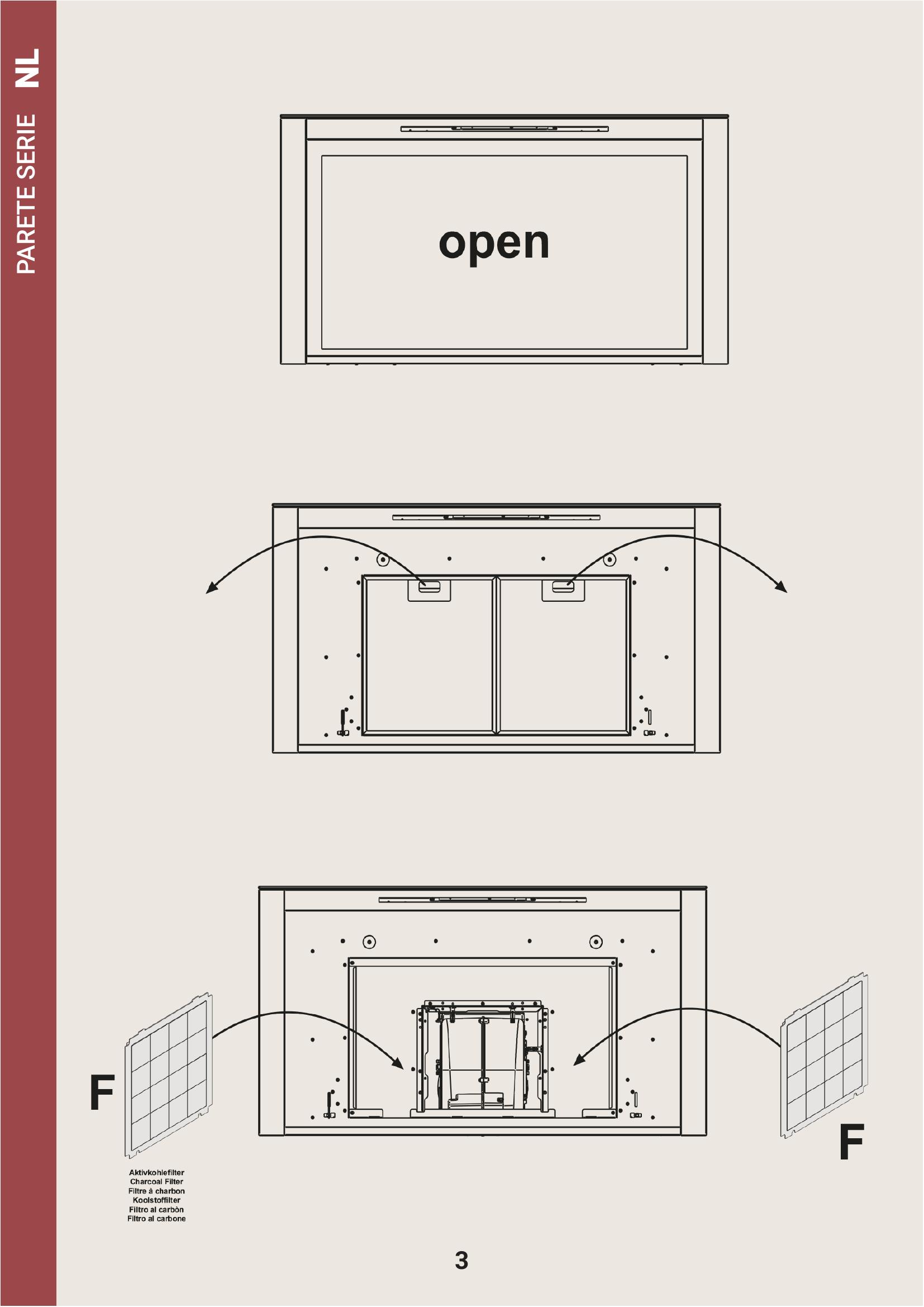

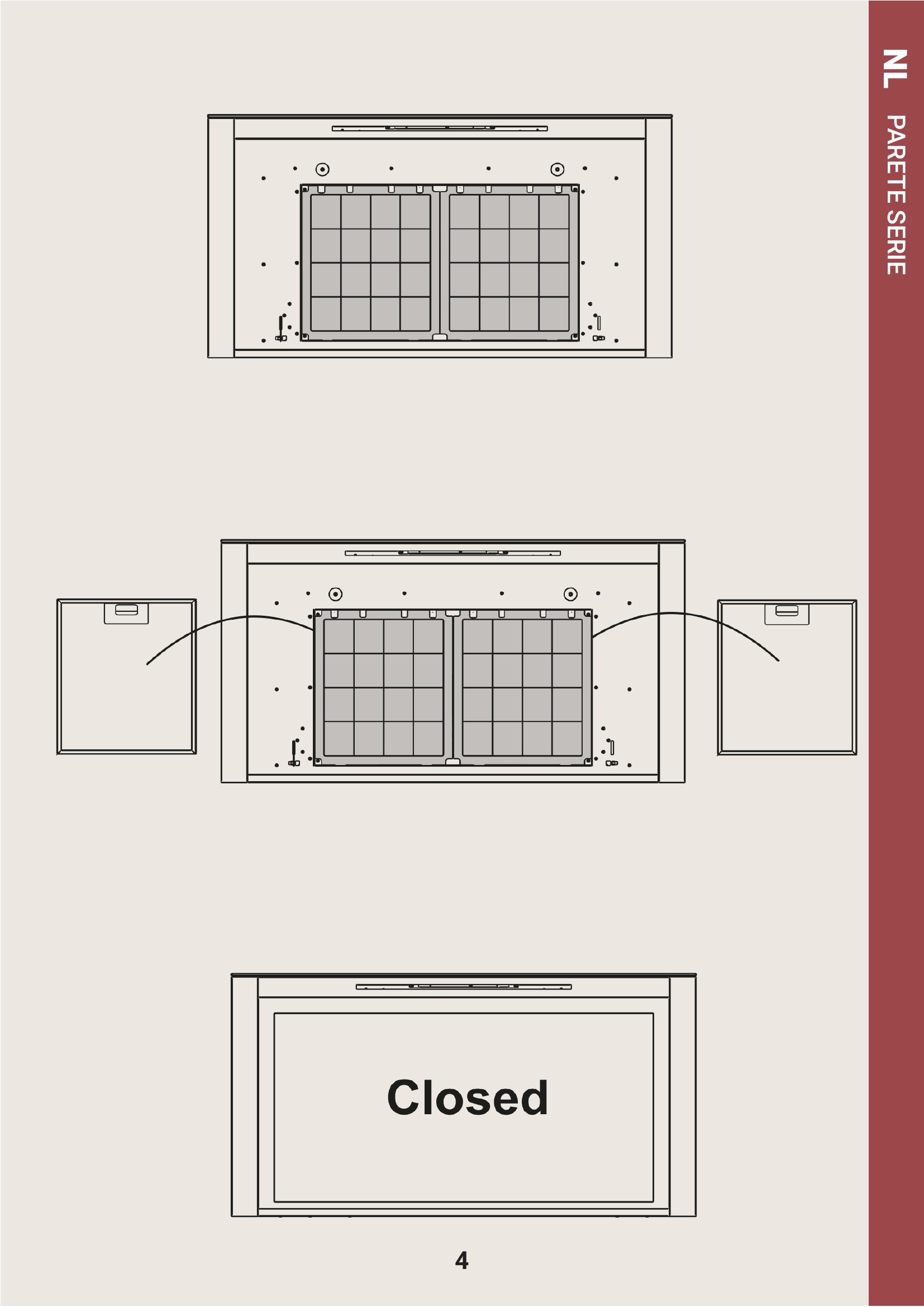

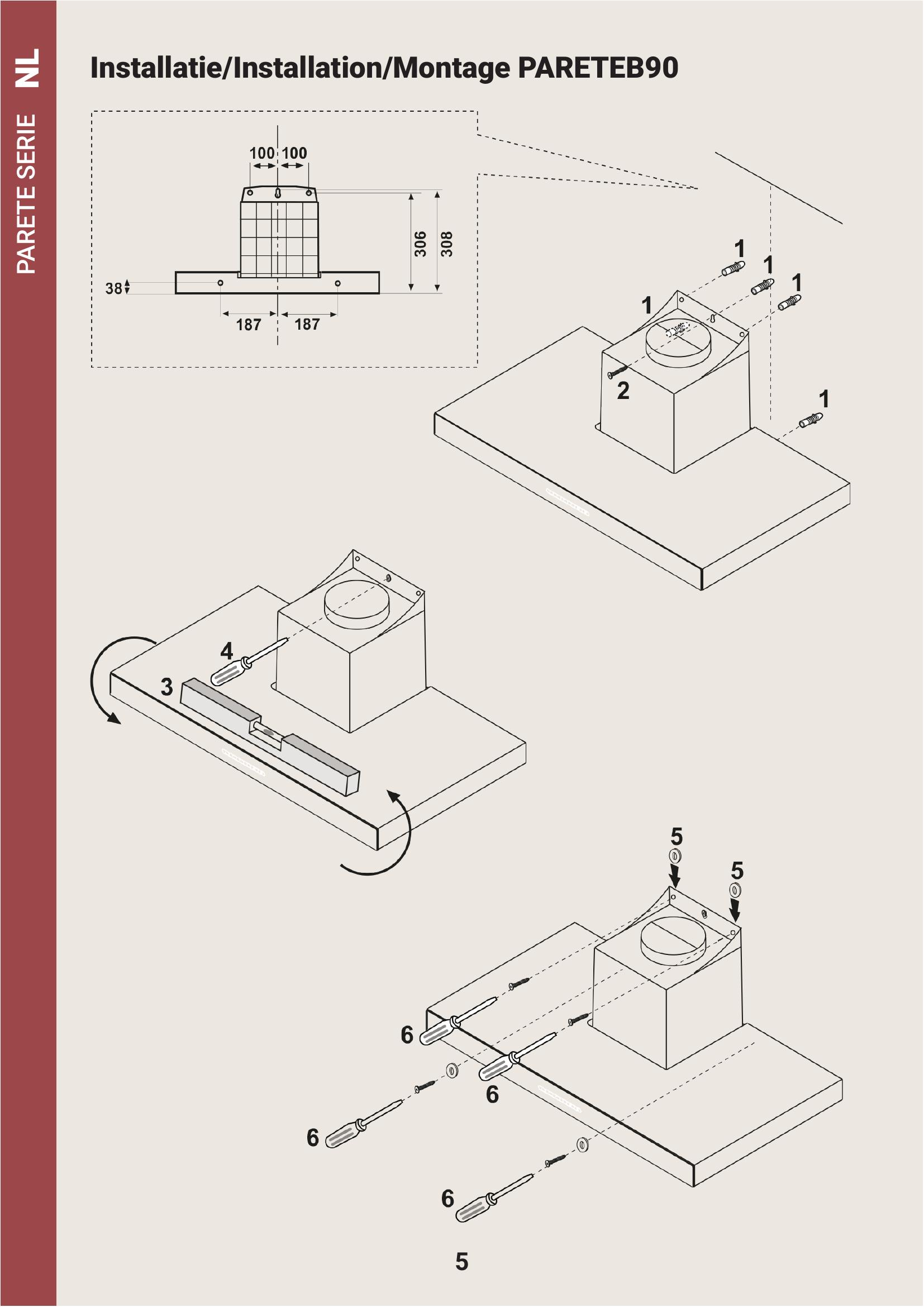

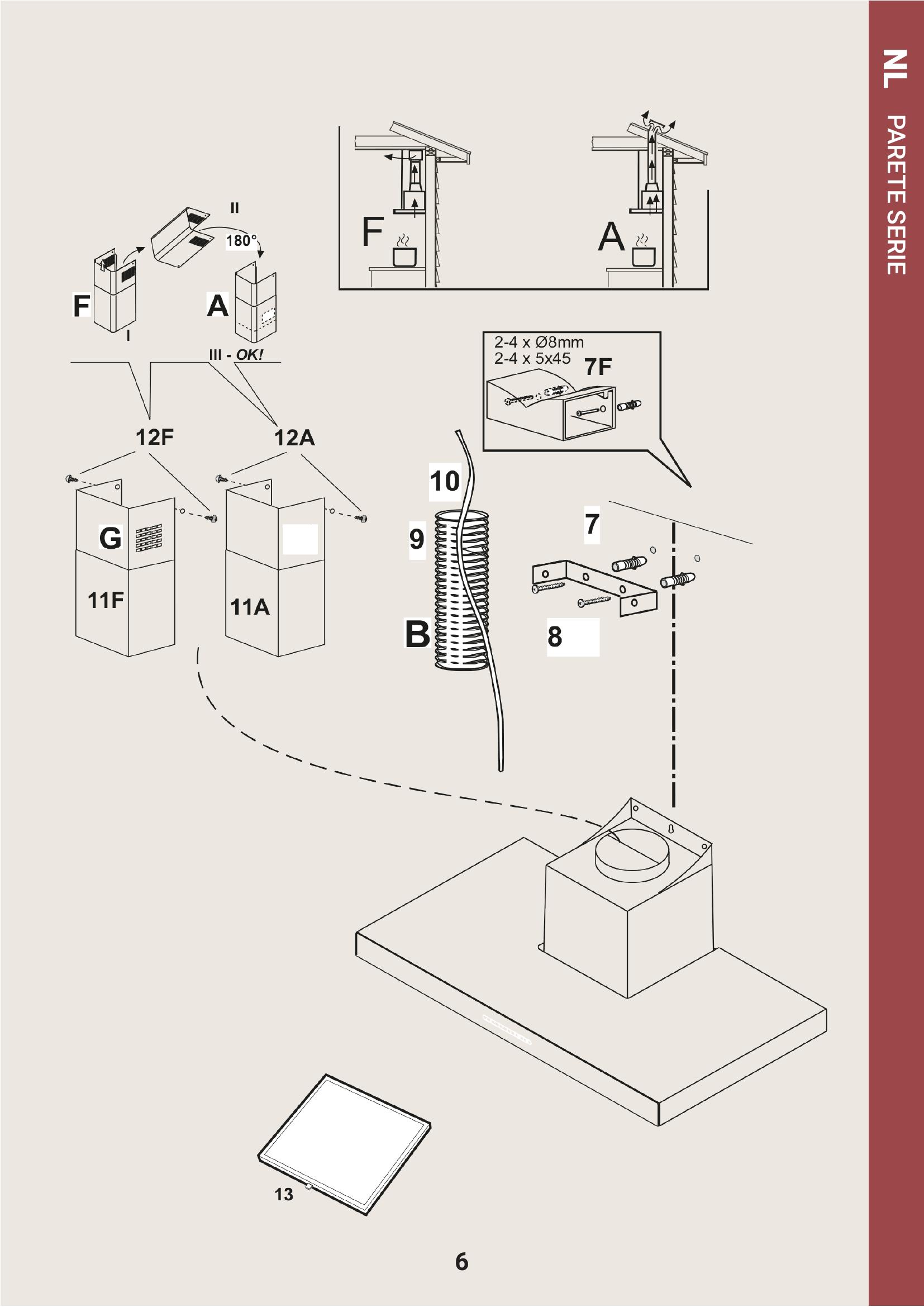

assembly - Page 1 assembly - Page 2 assembly - Page 3 assembly - Page 4 assembly - Page 5 assembly - Page 6
