LIGORIO TOP - Assembly instructions

  • Updated

This article explains how to assemble the LIGORIO TOP by Boretti.

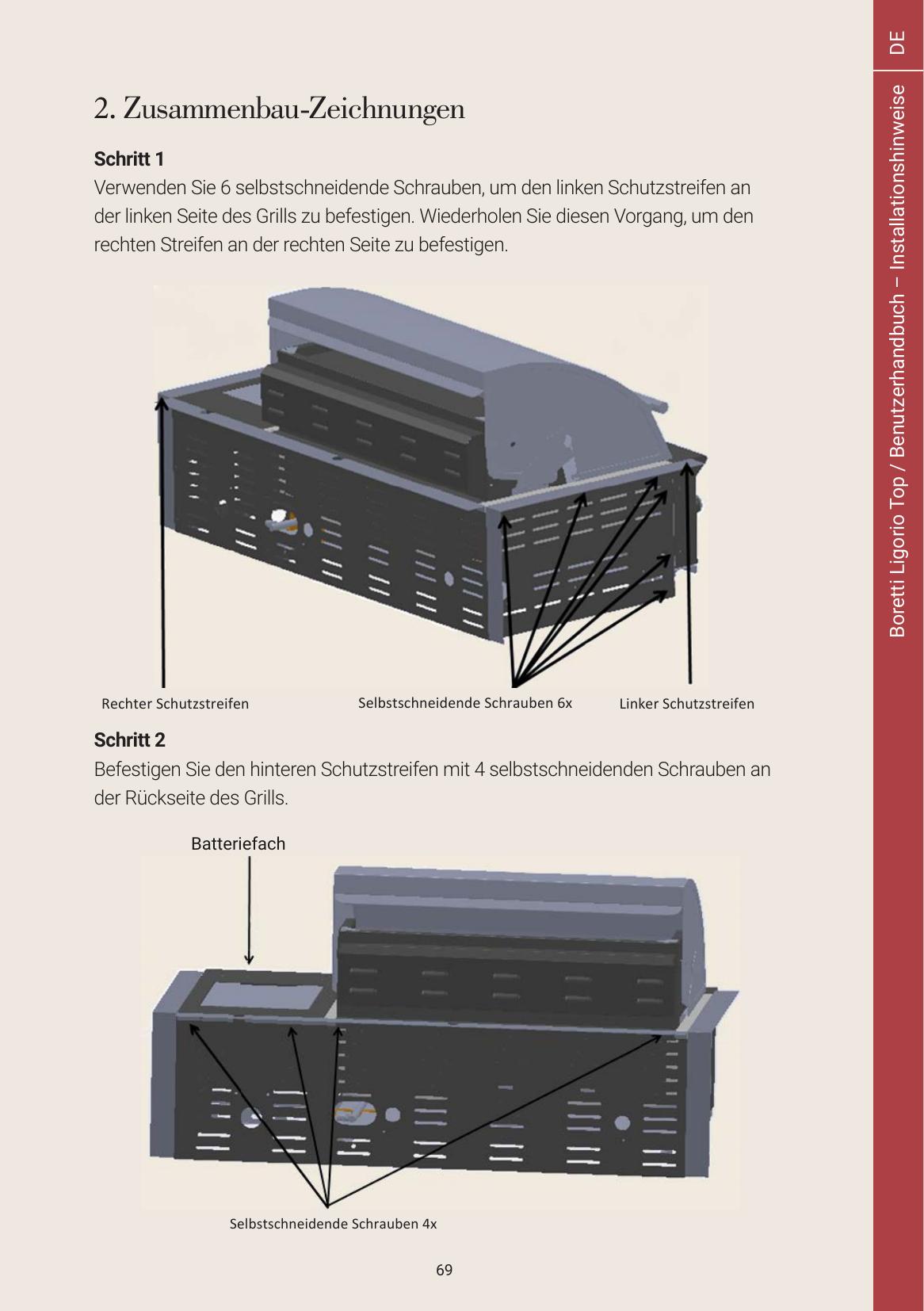

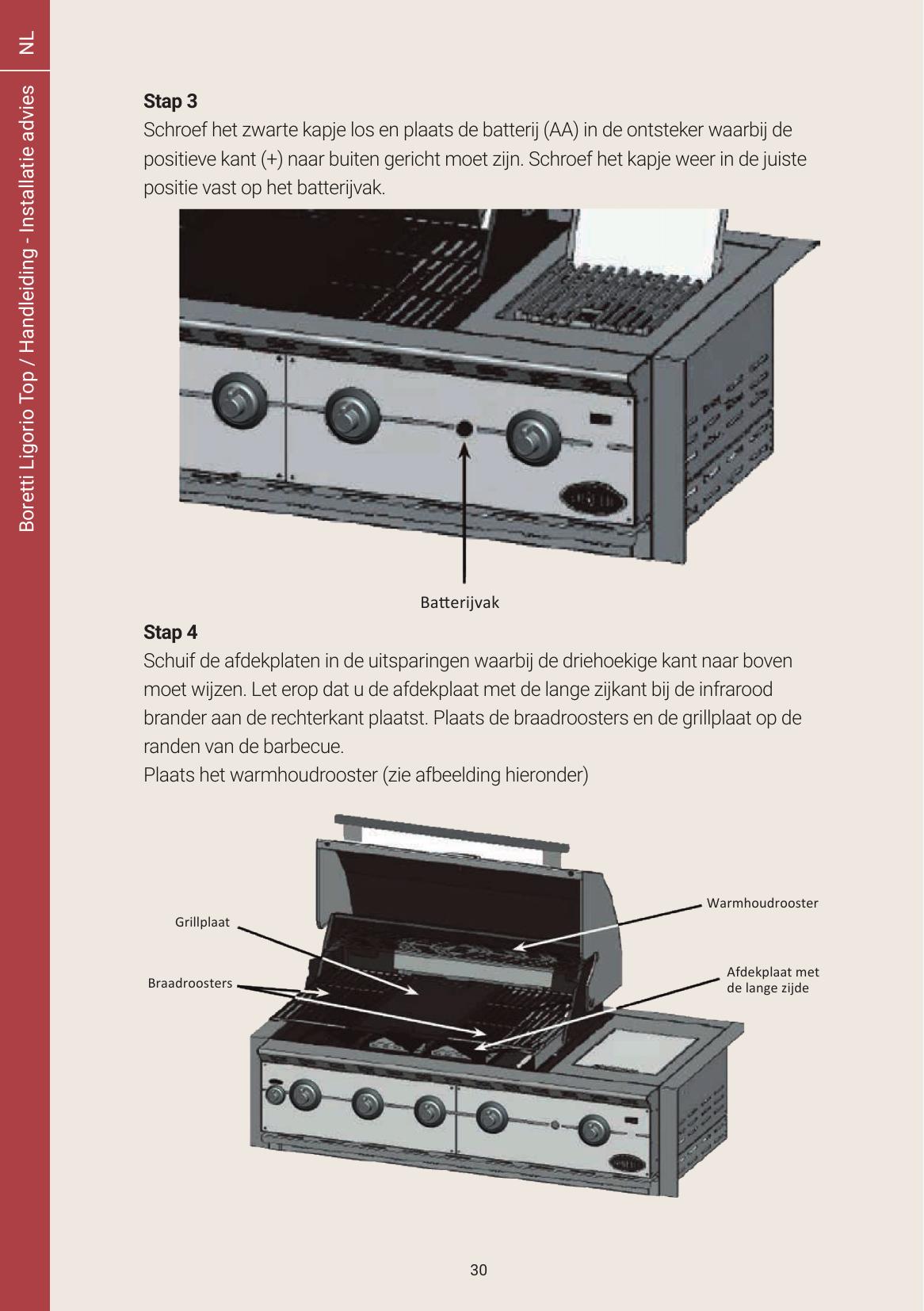

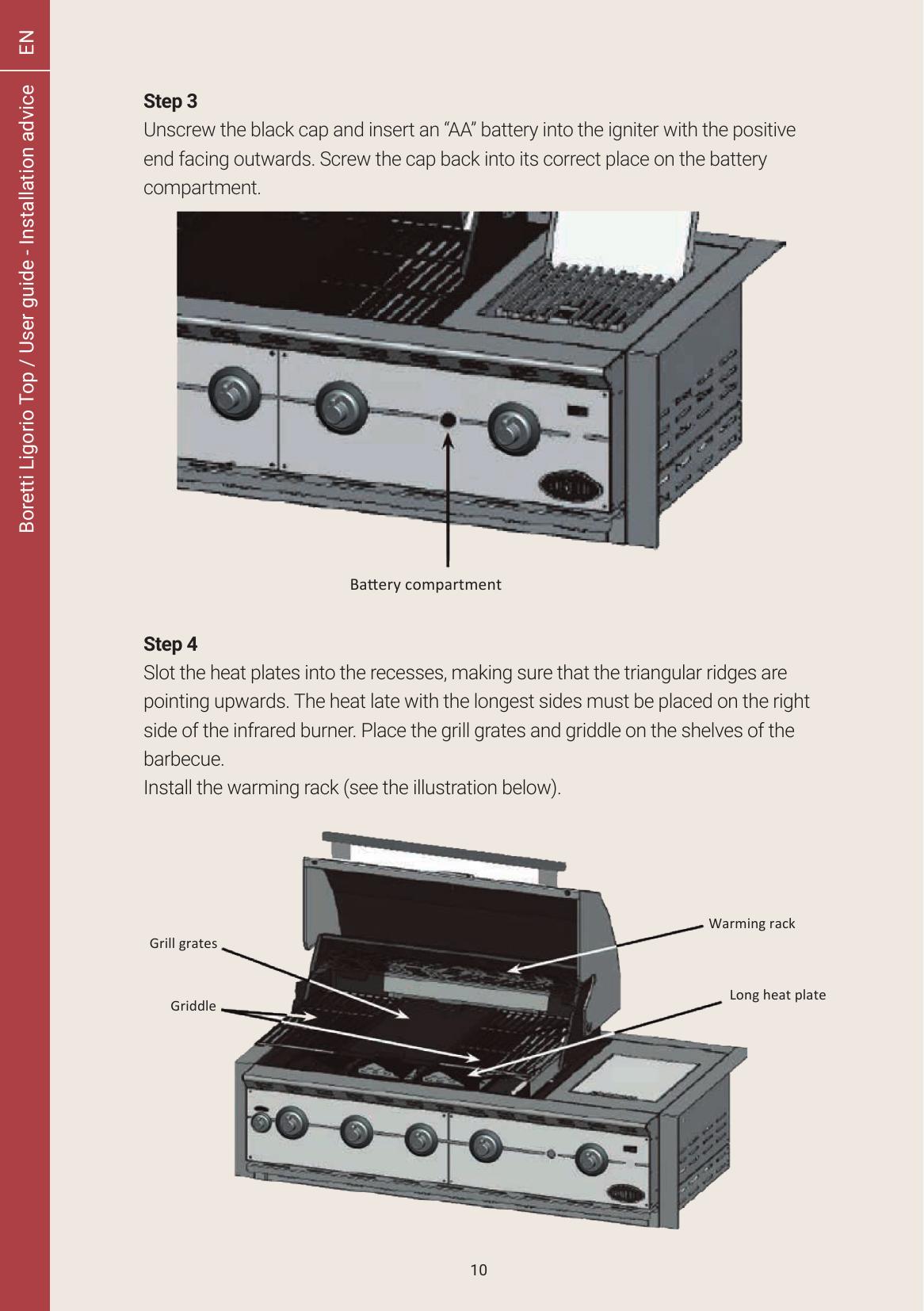

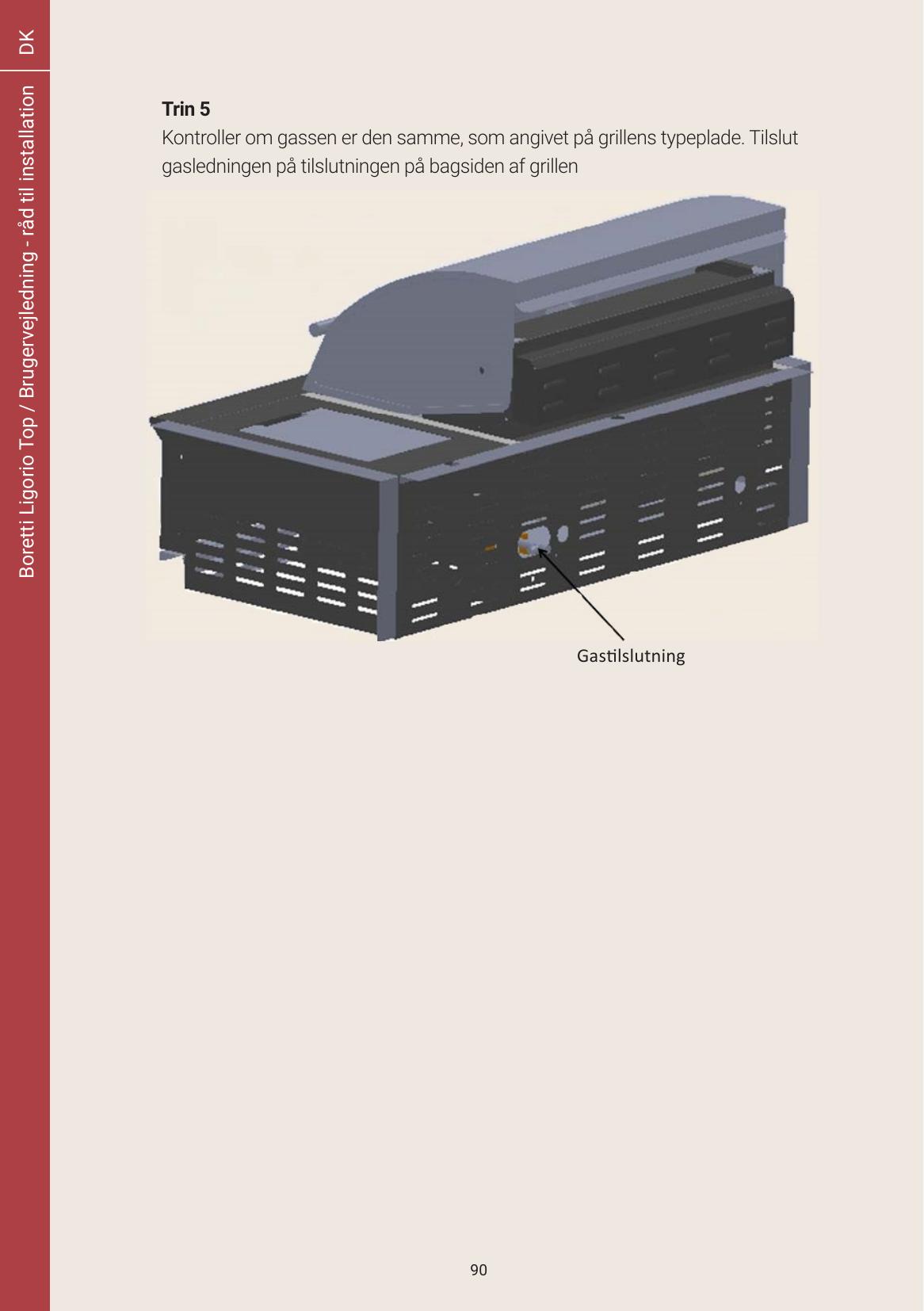

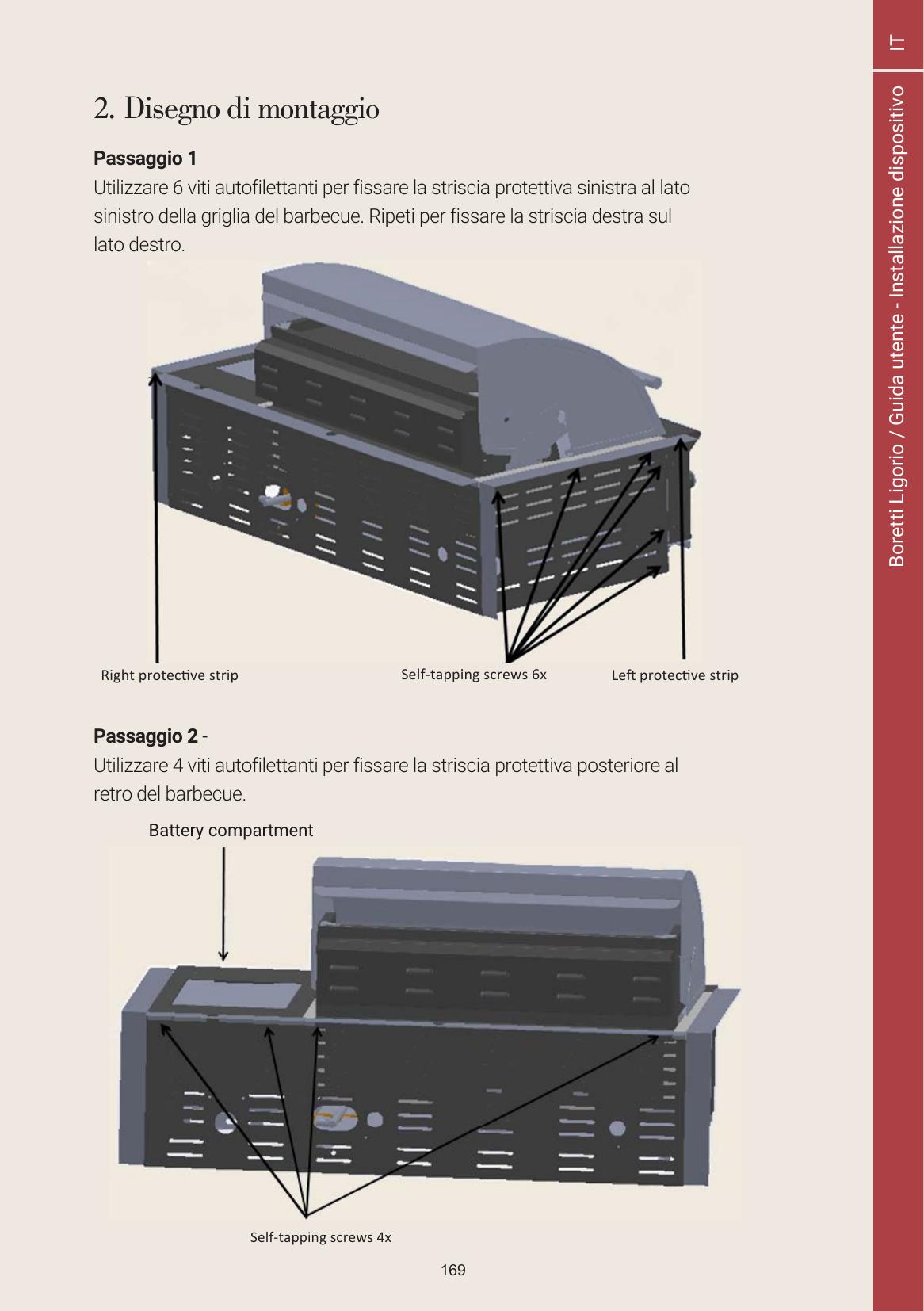

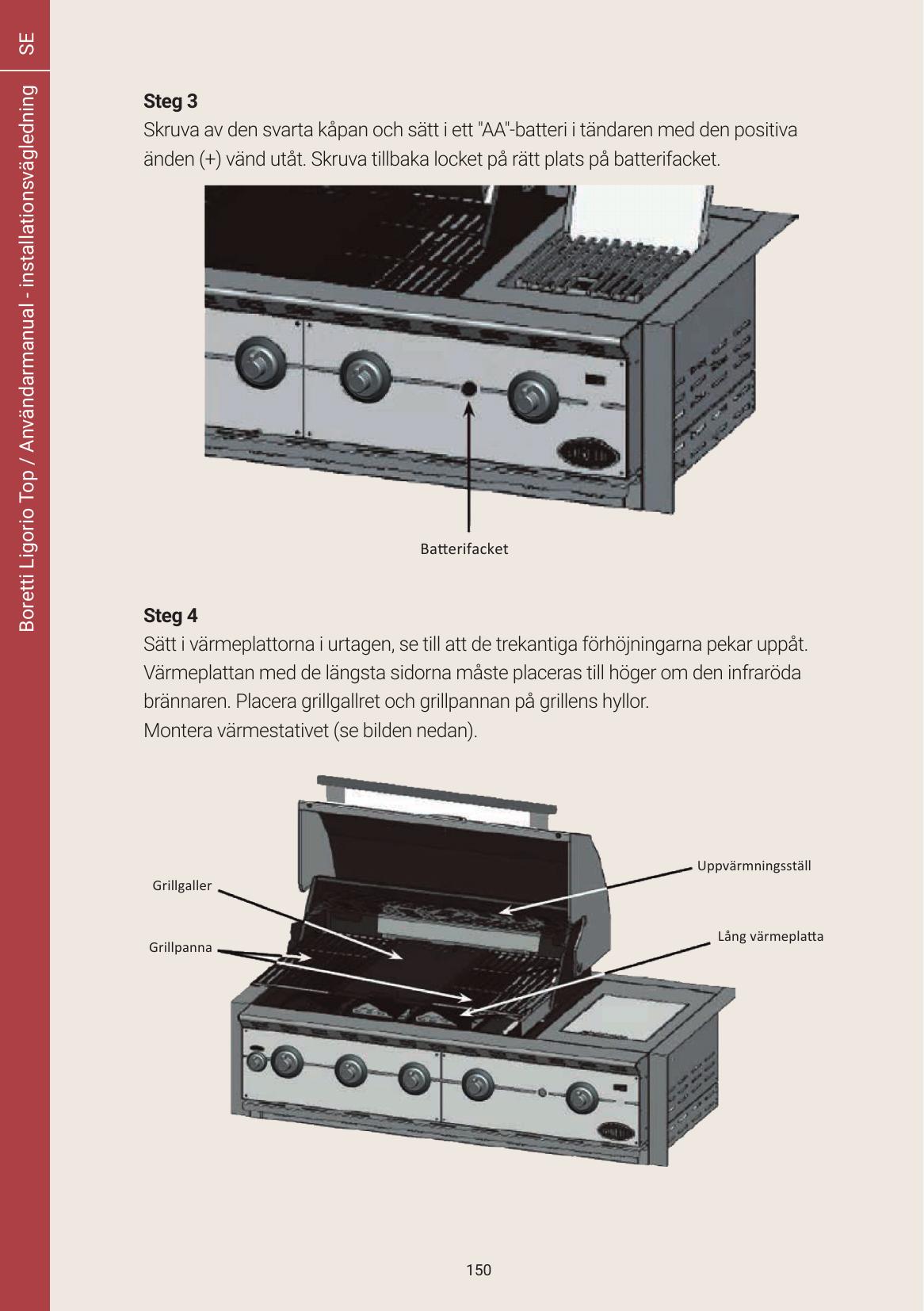

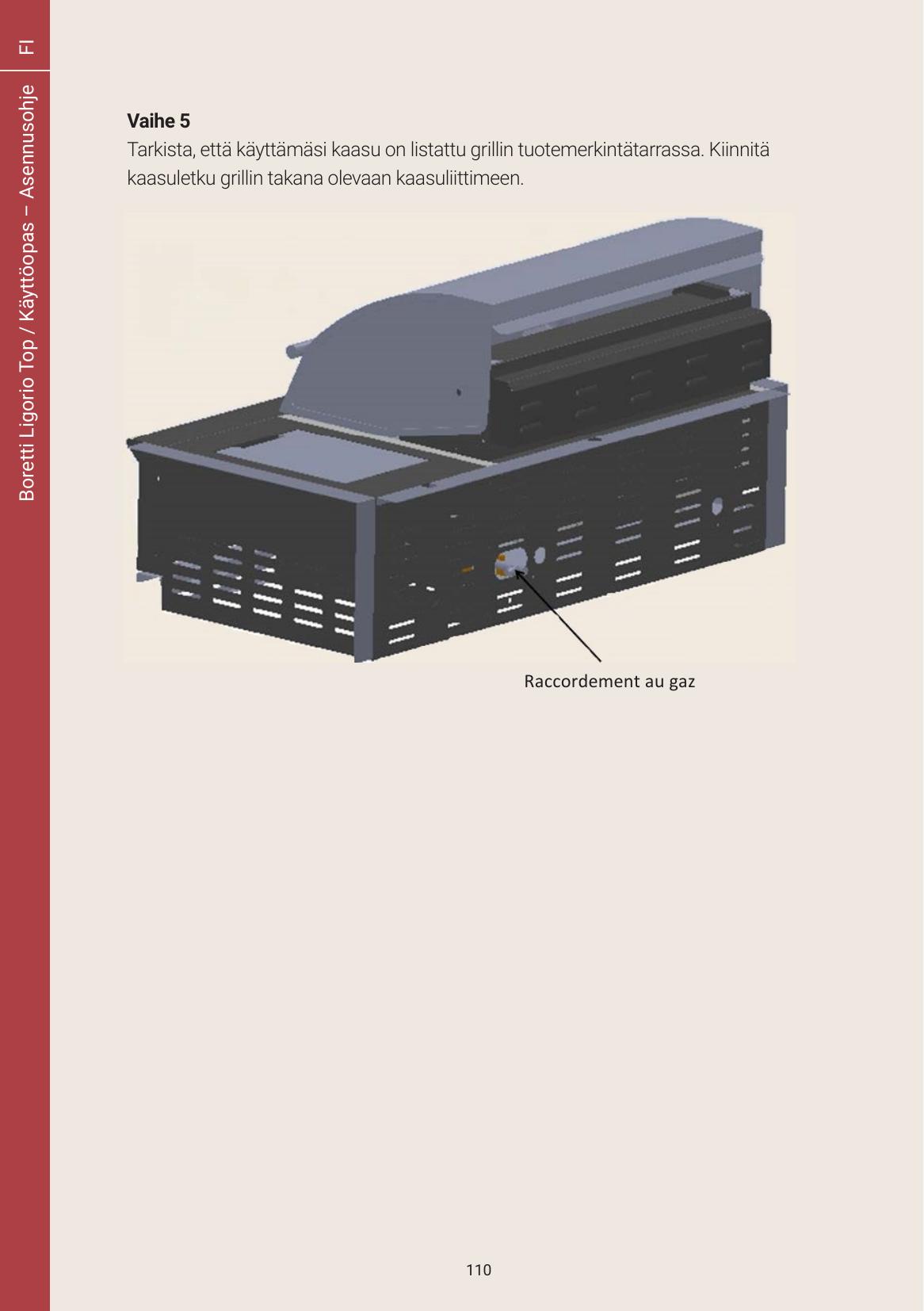

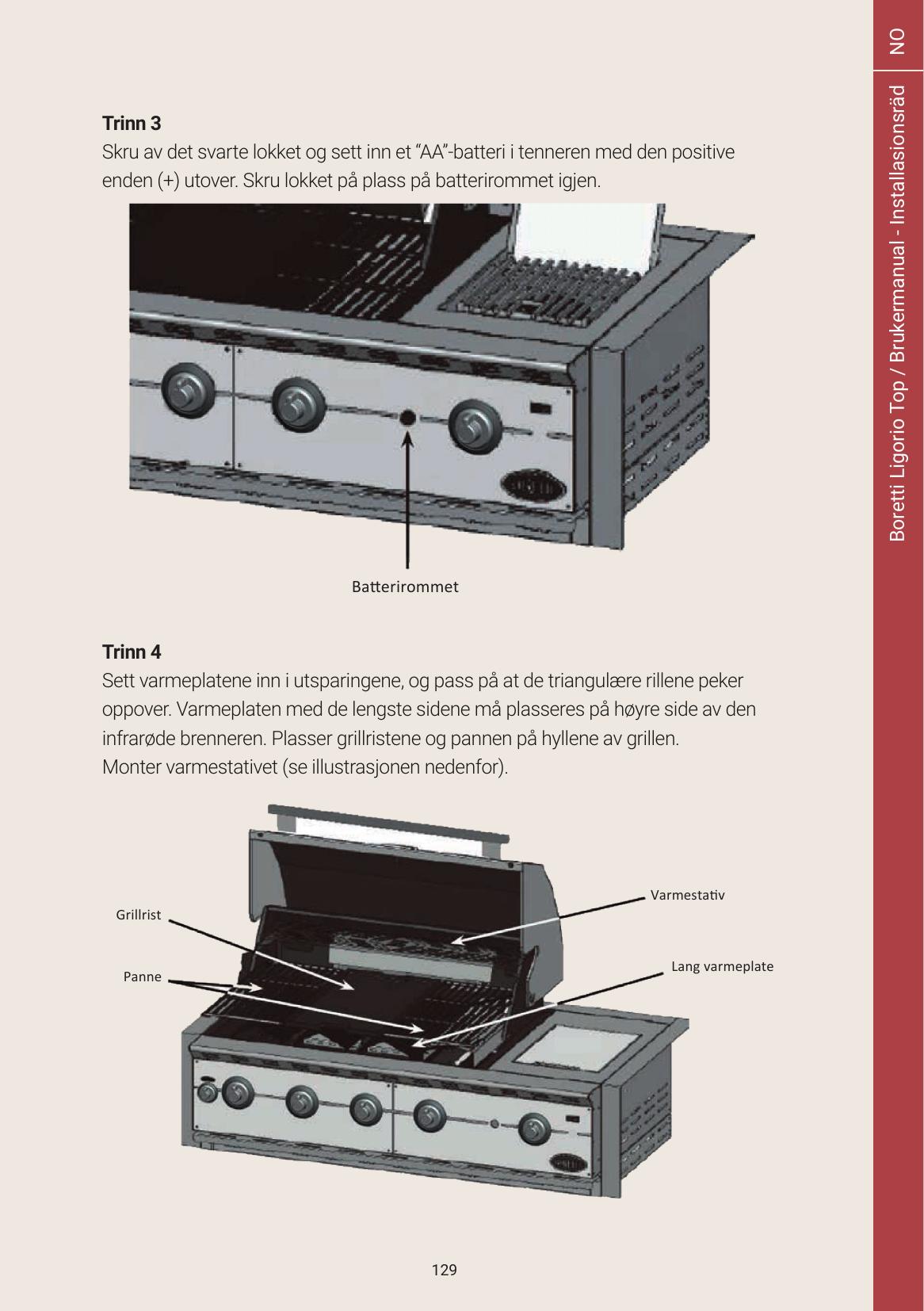

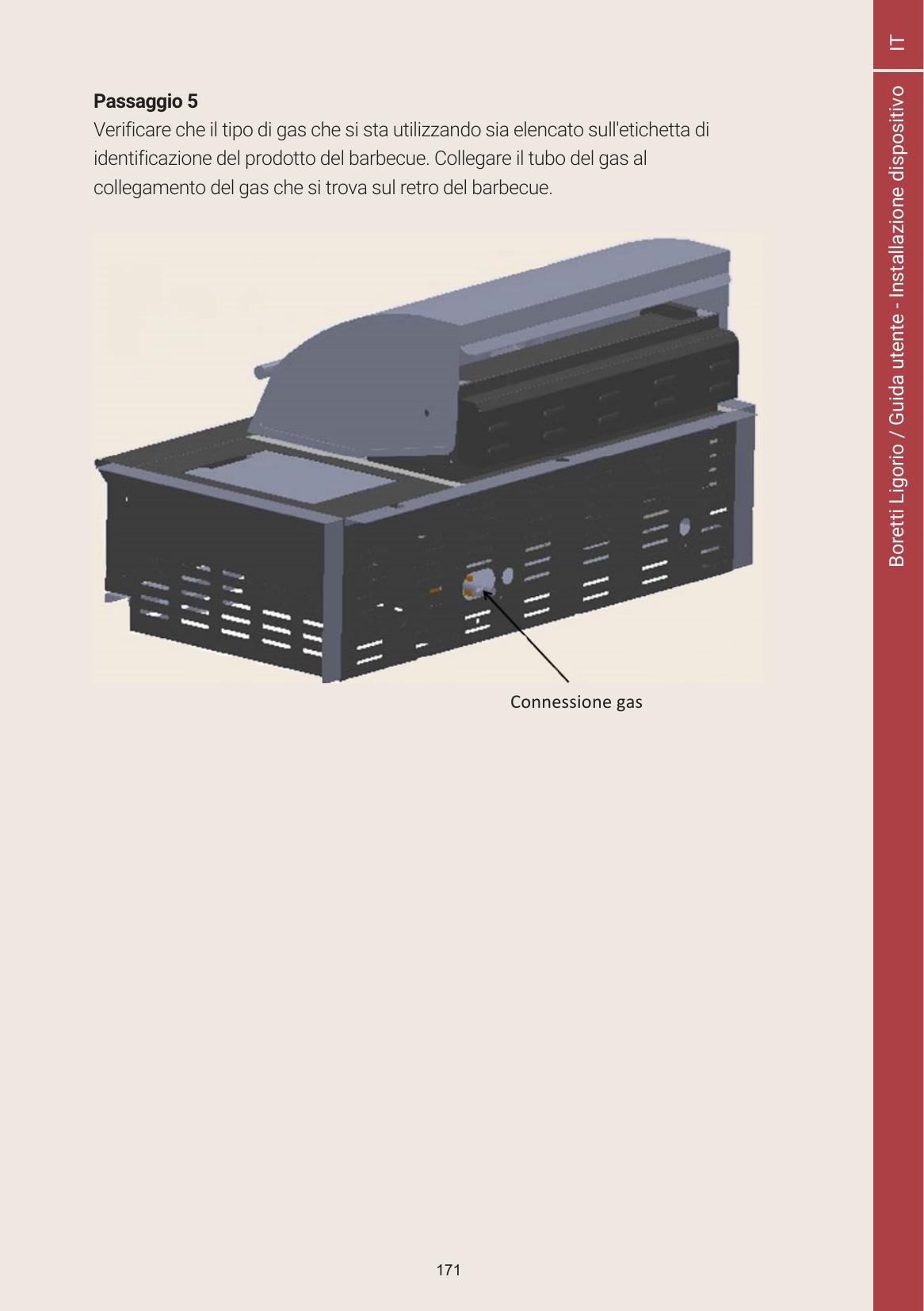

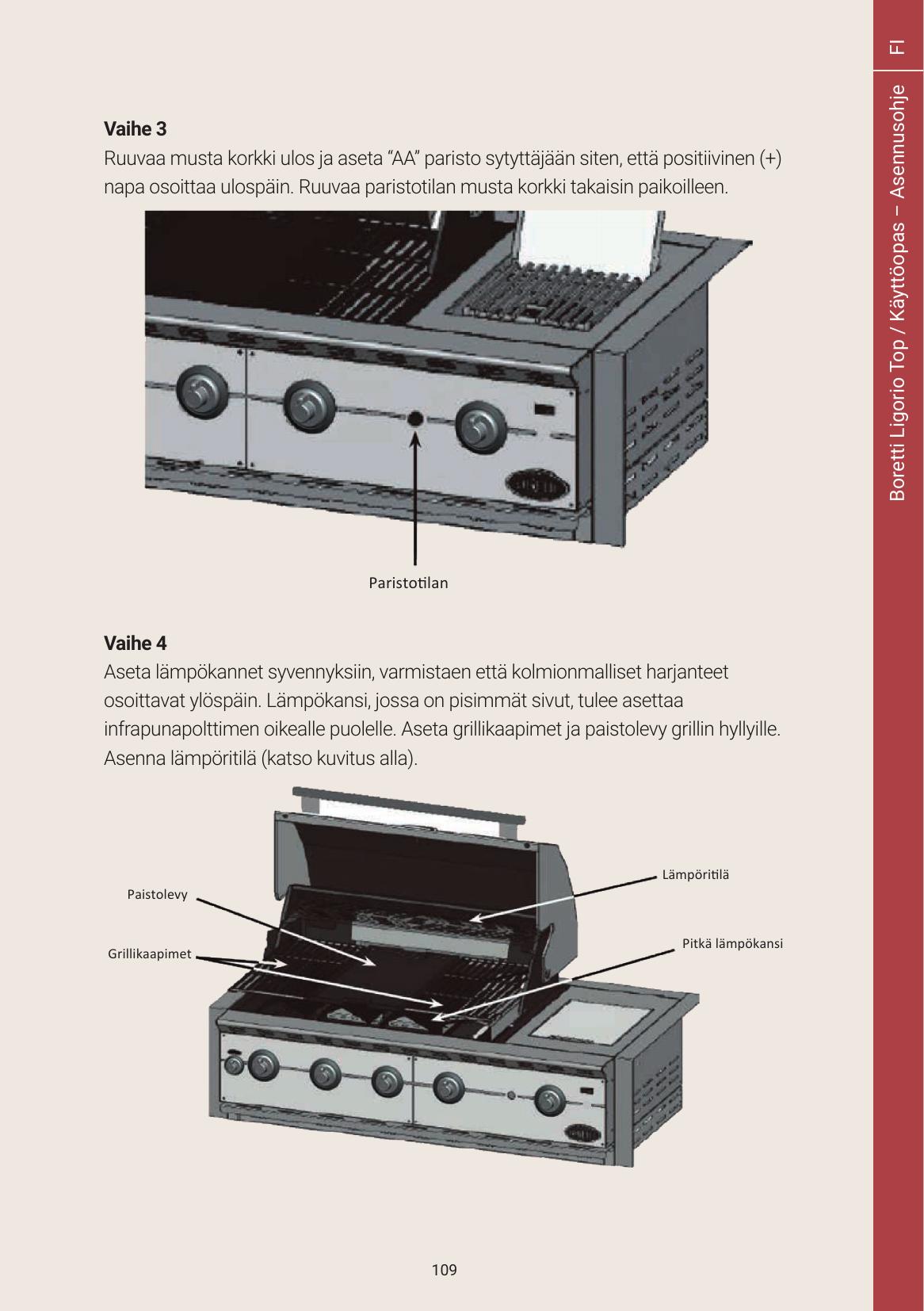

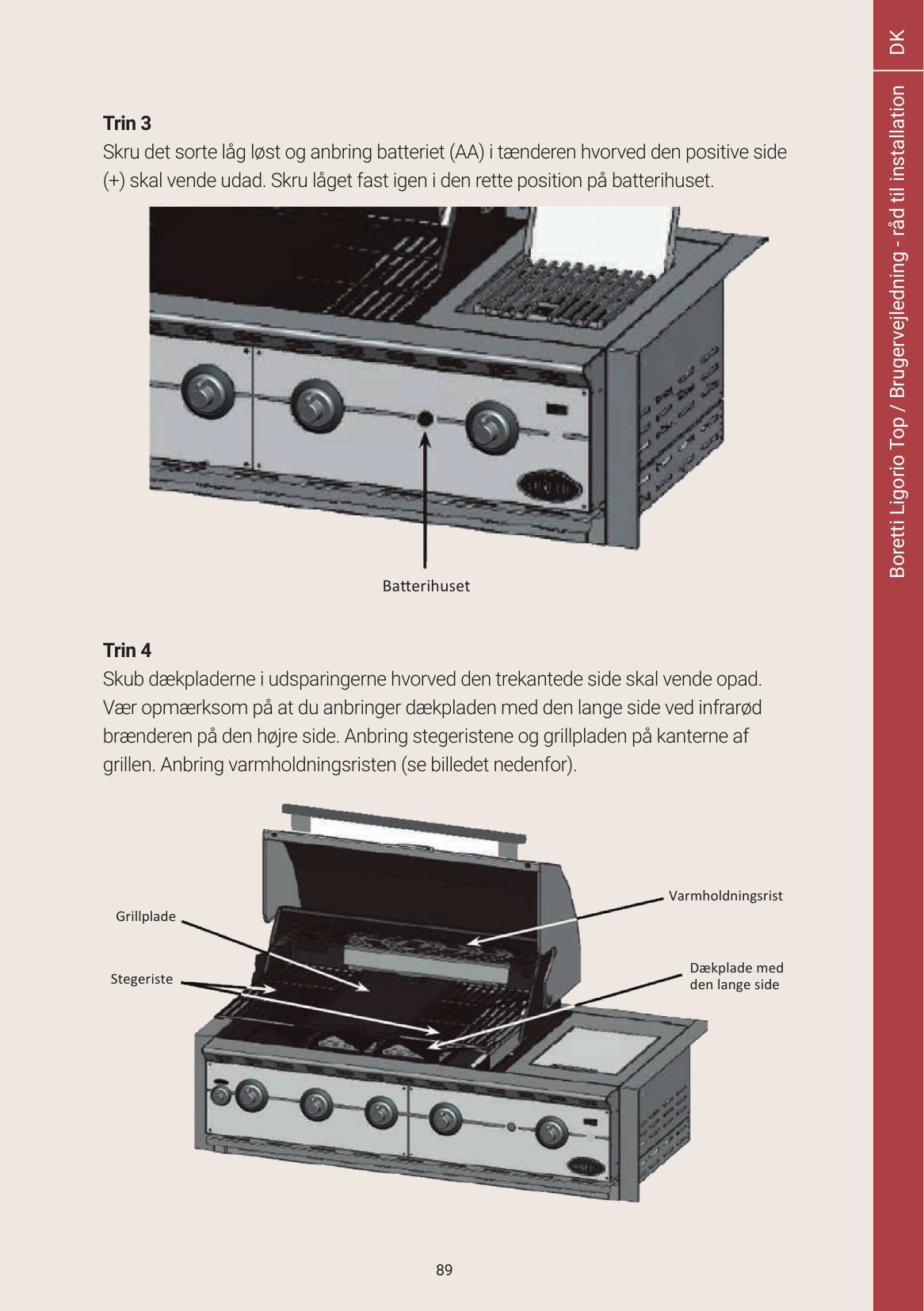

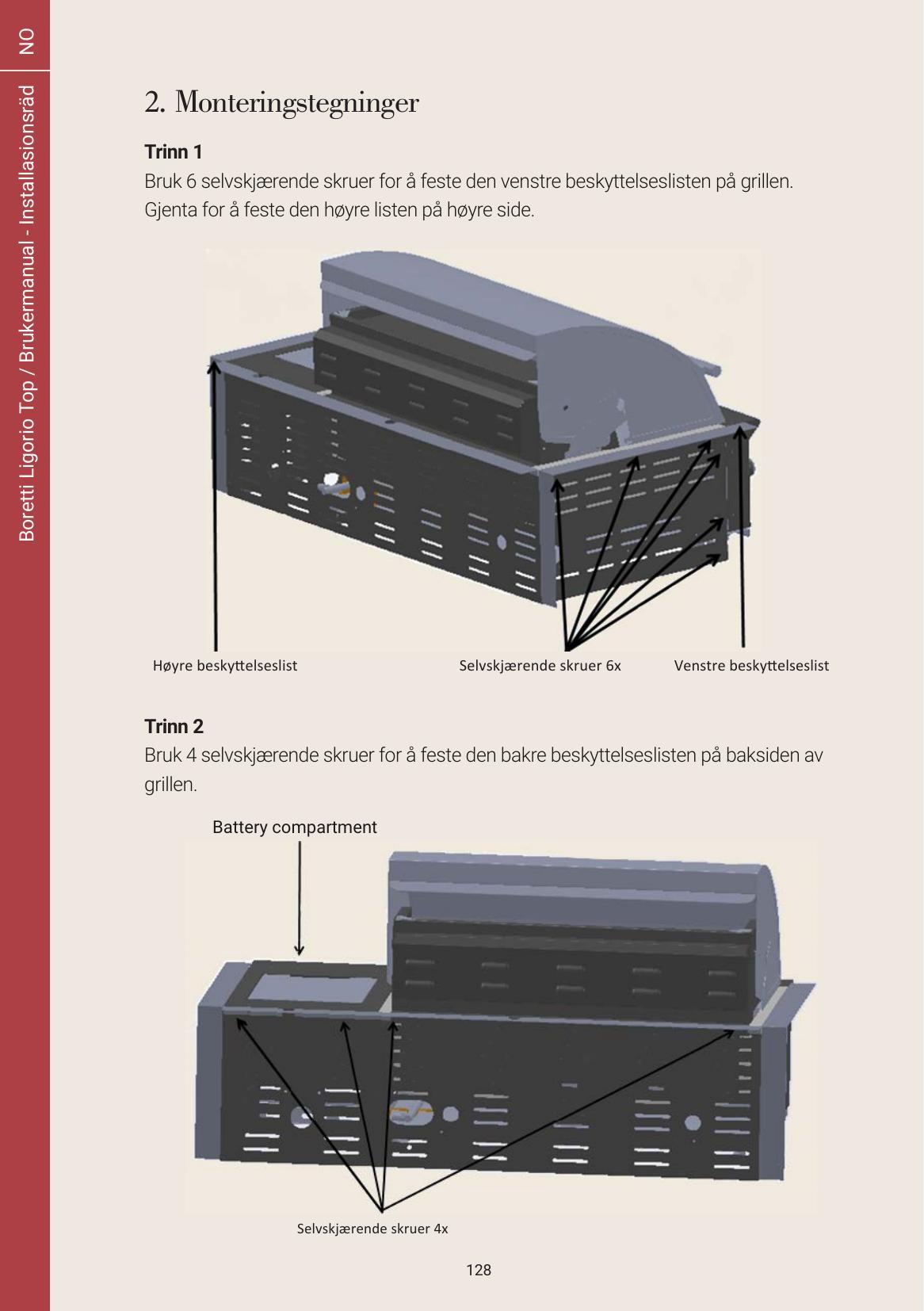

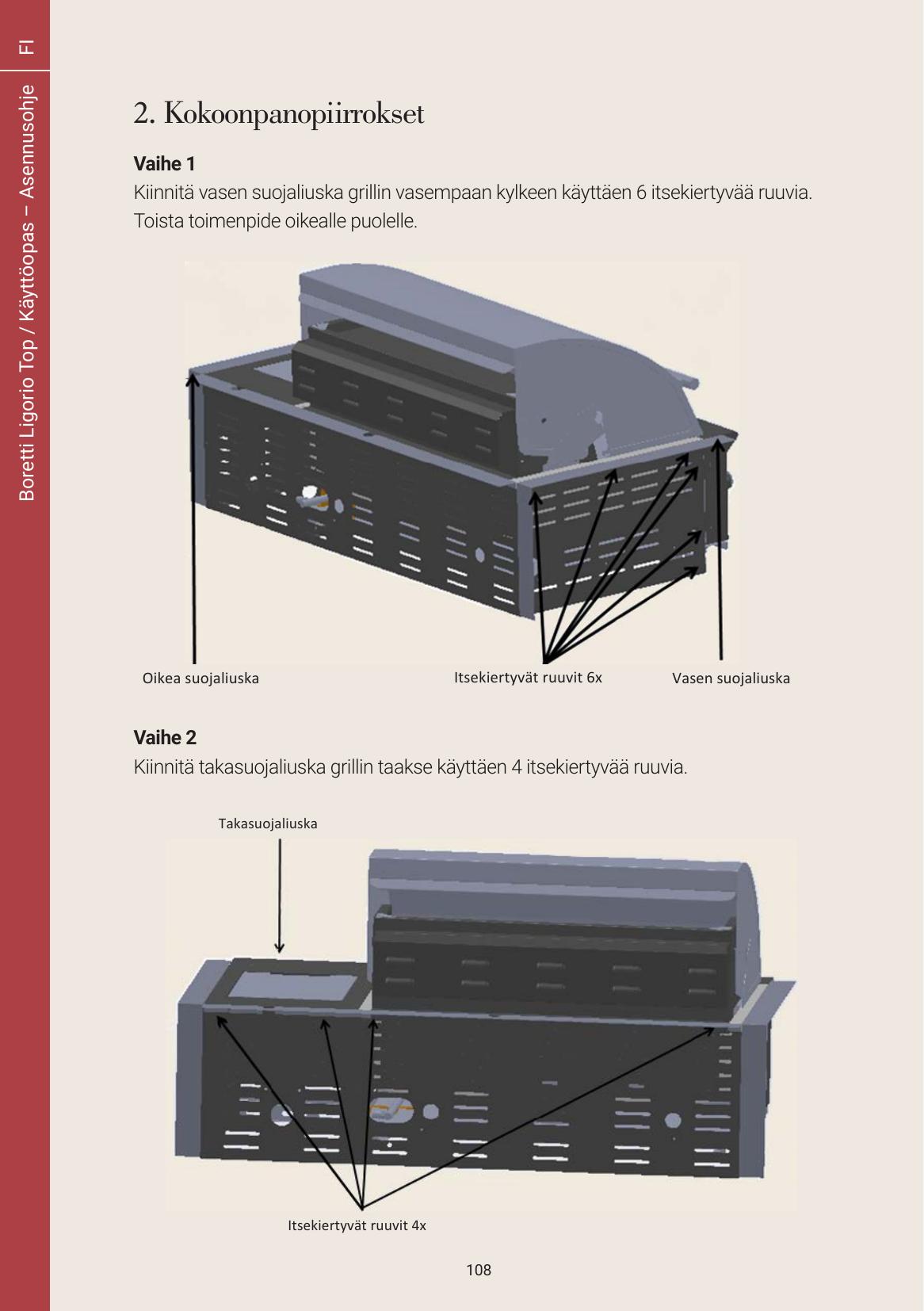

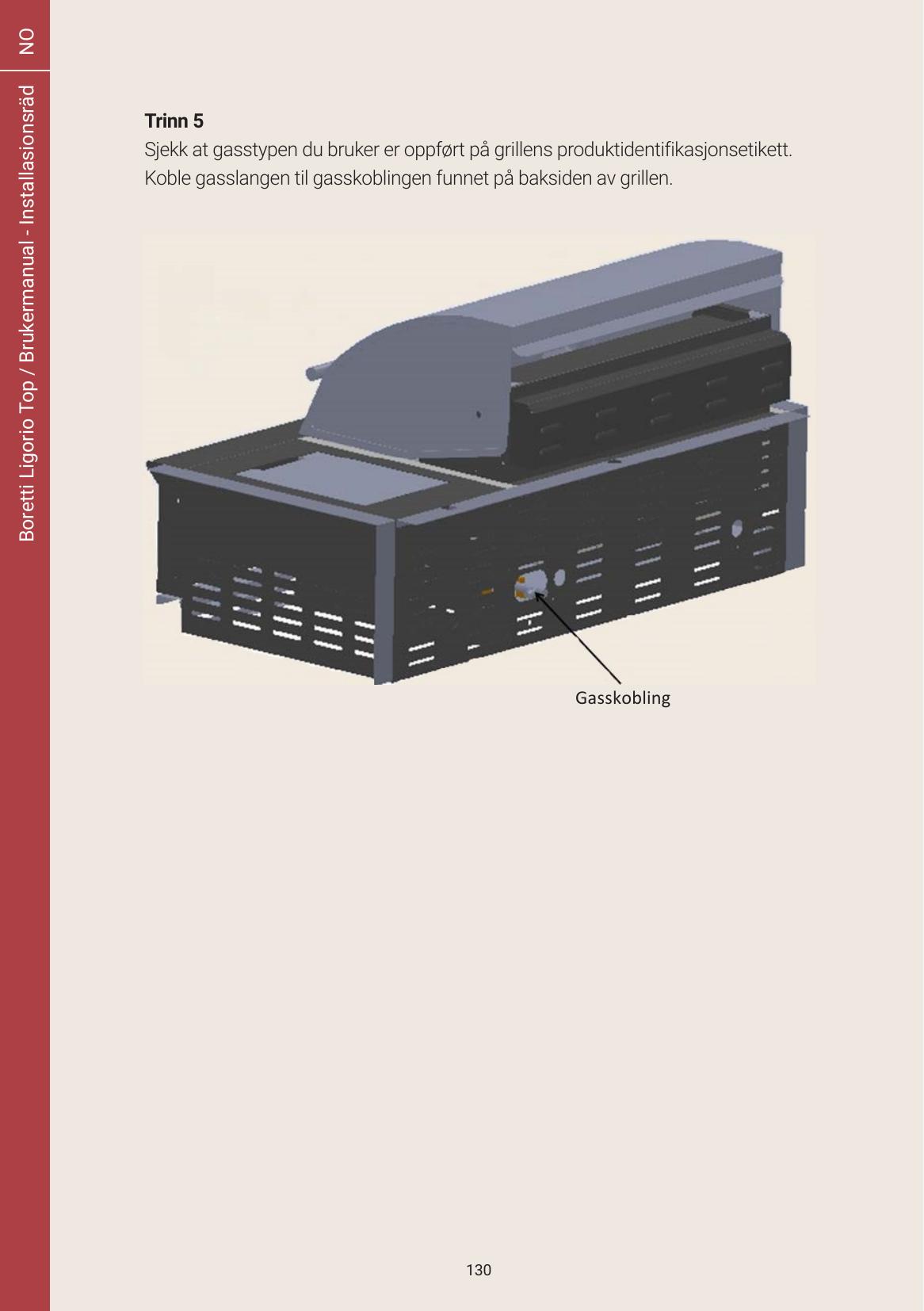

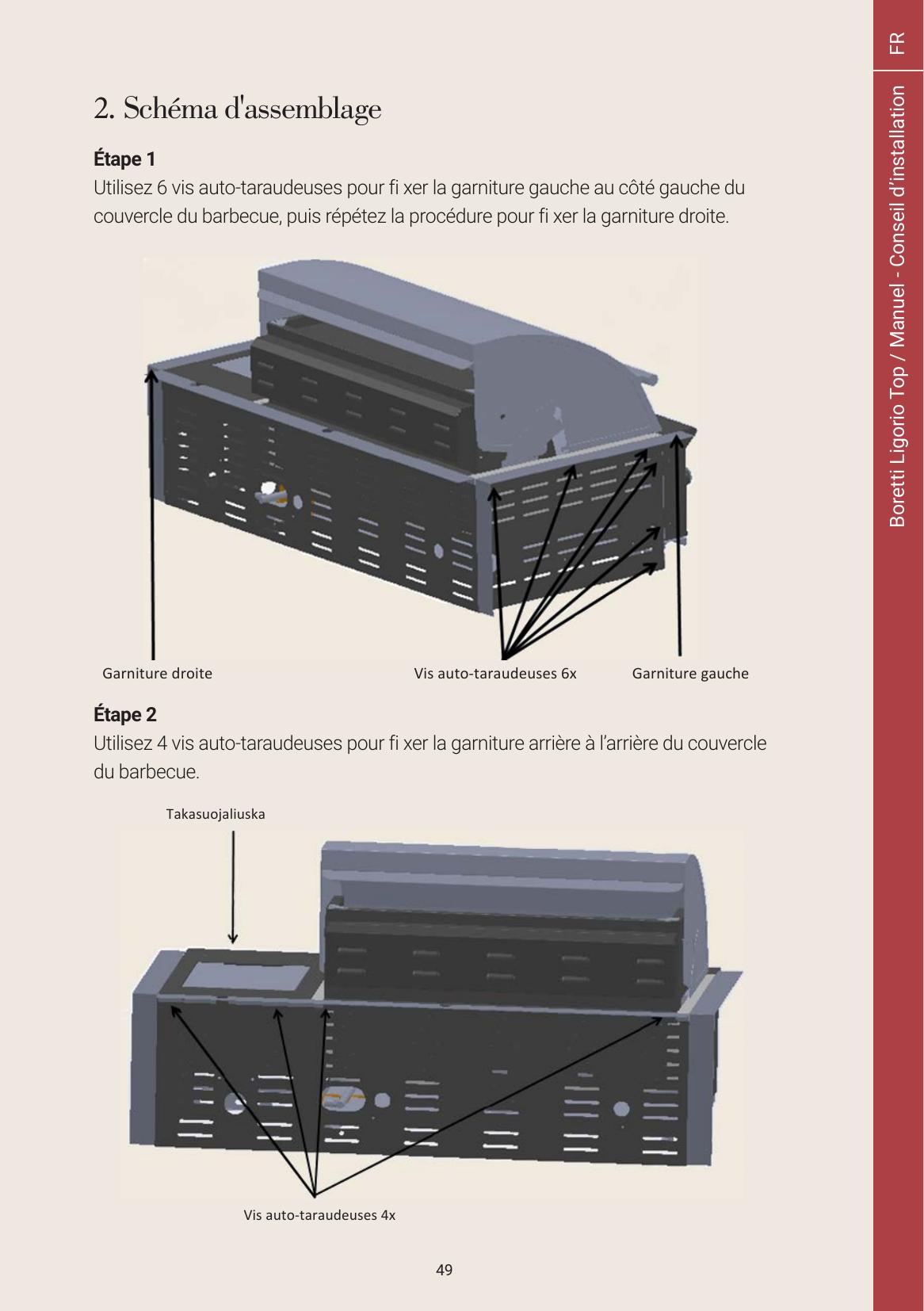

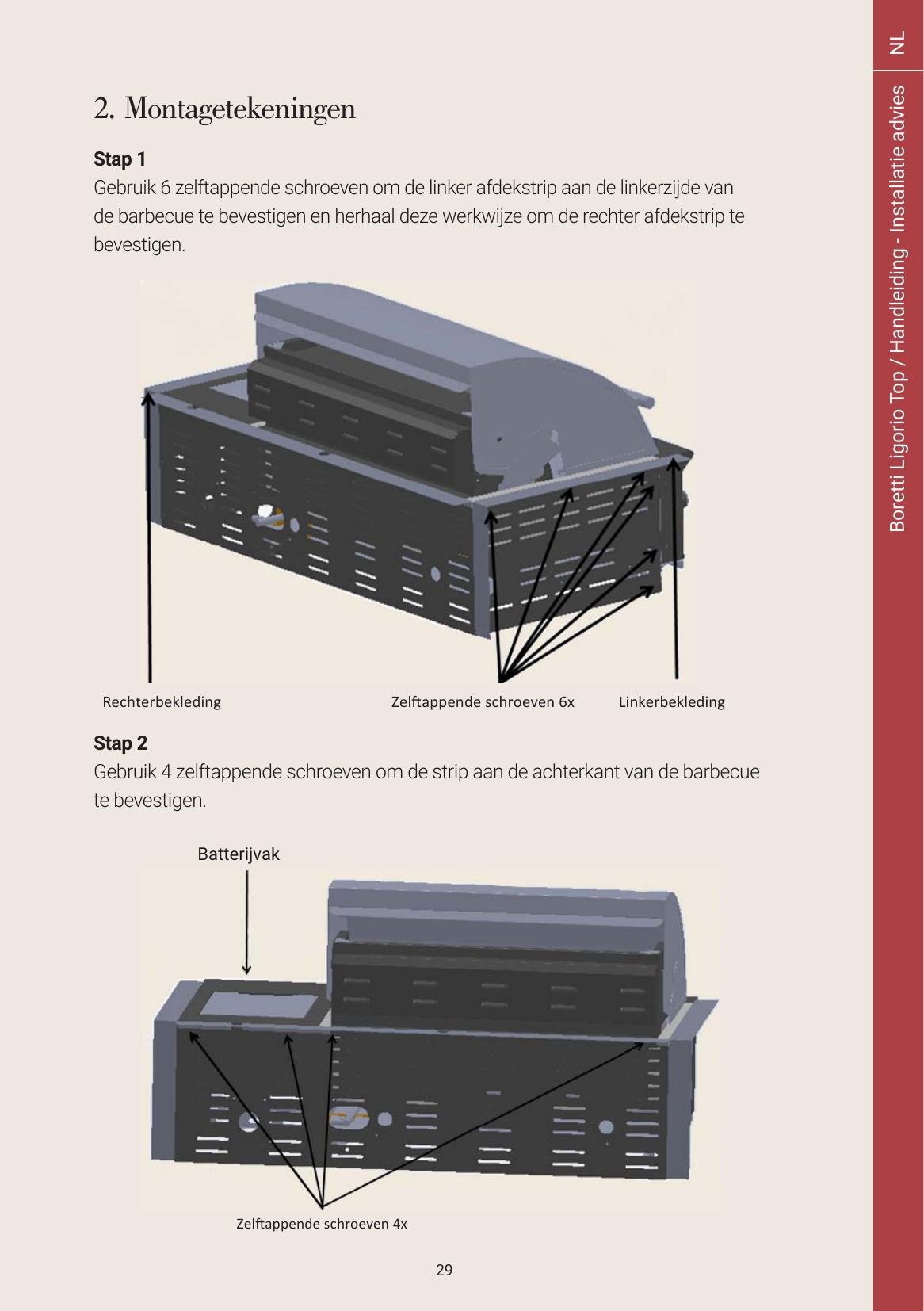

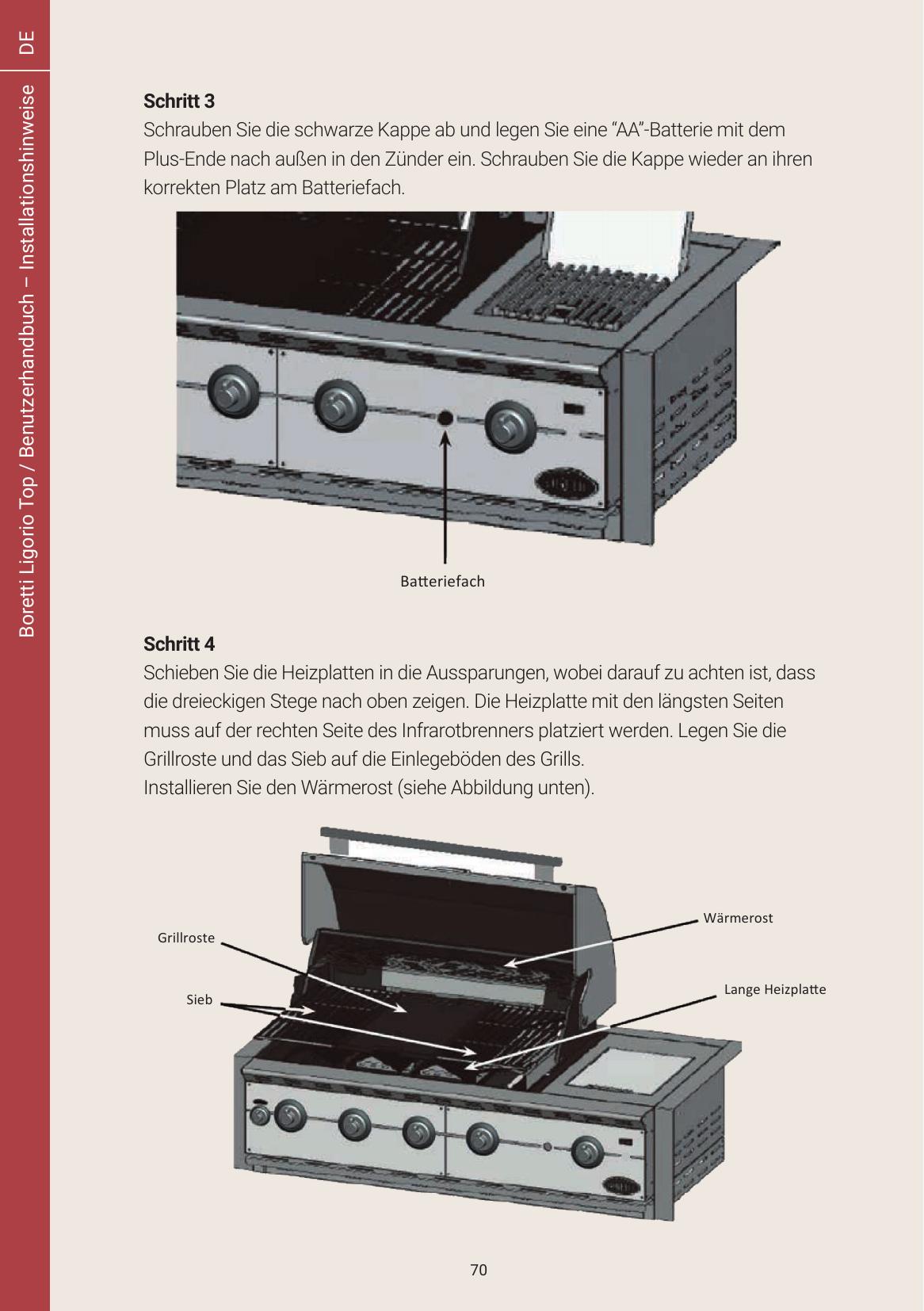

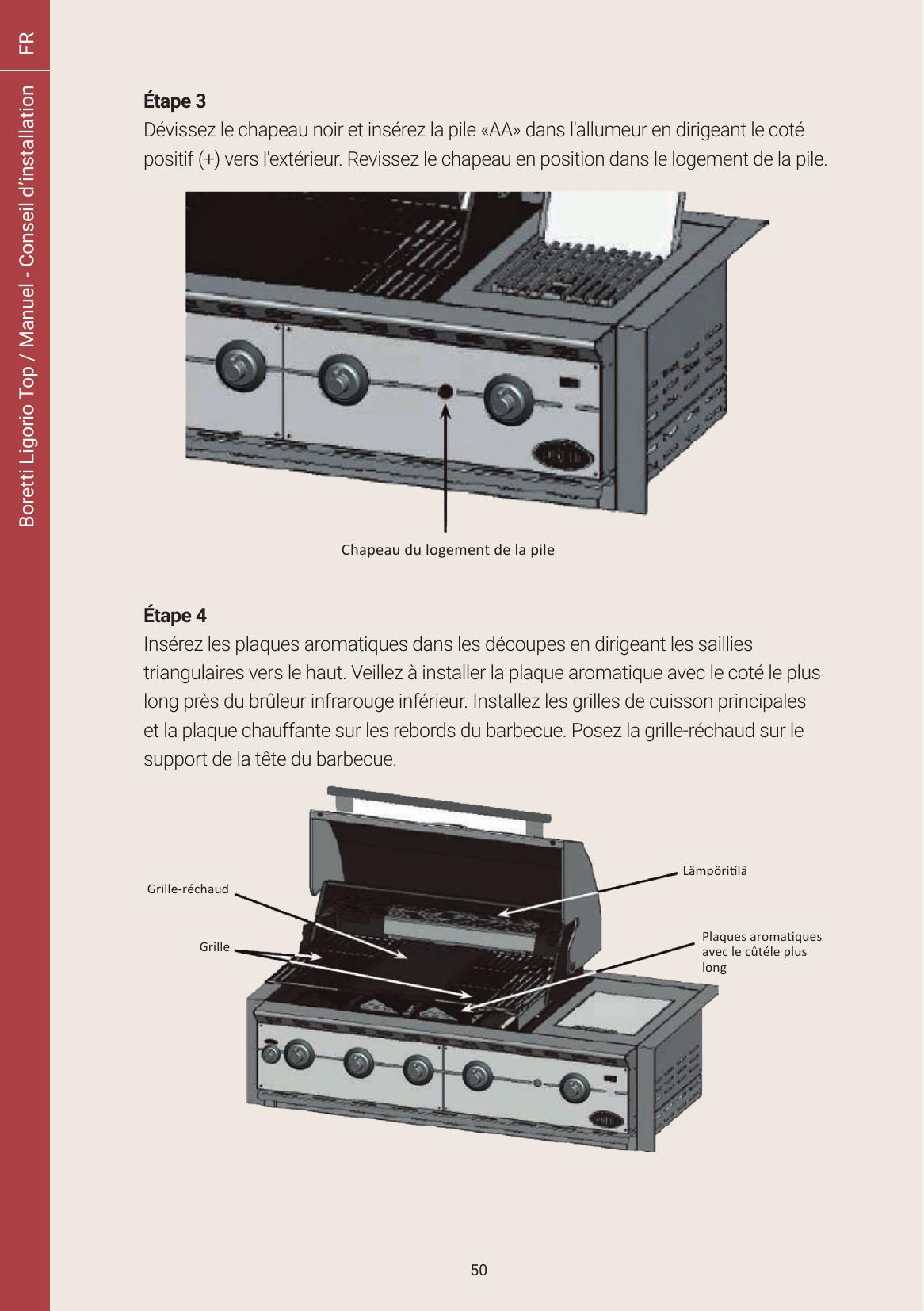

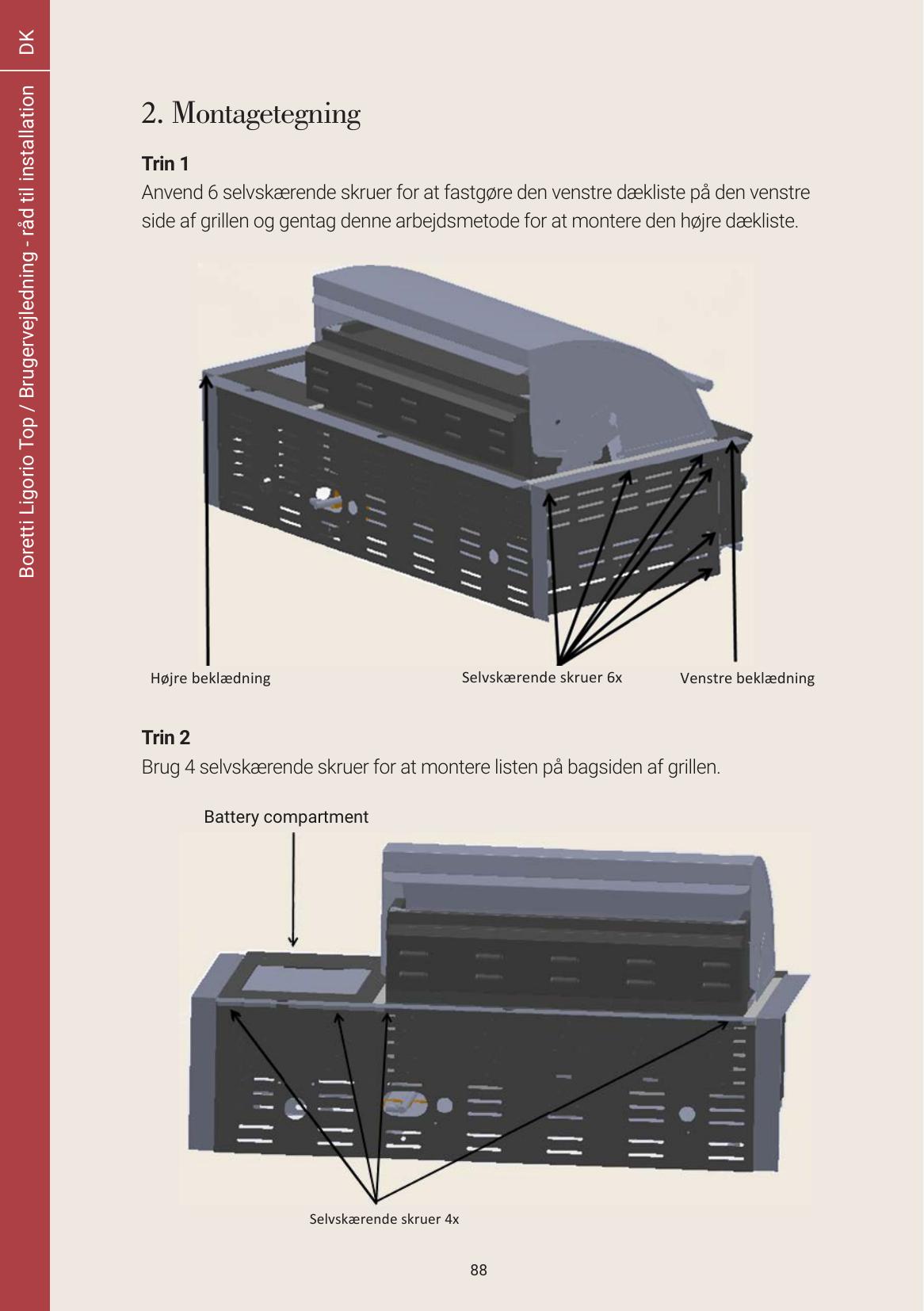

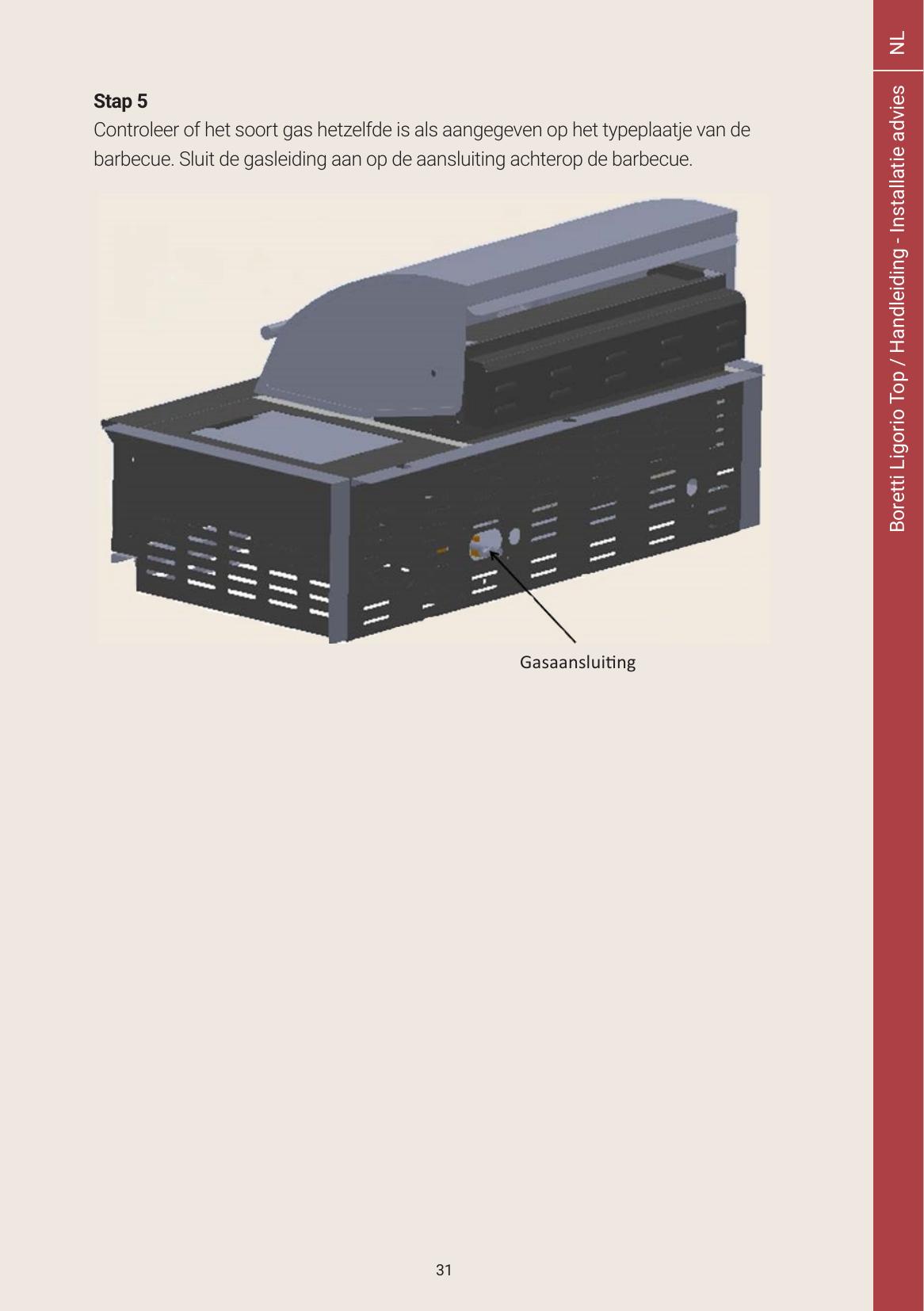

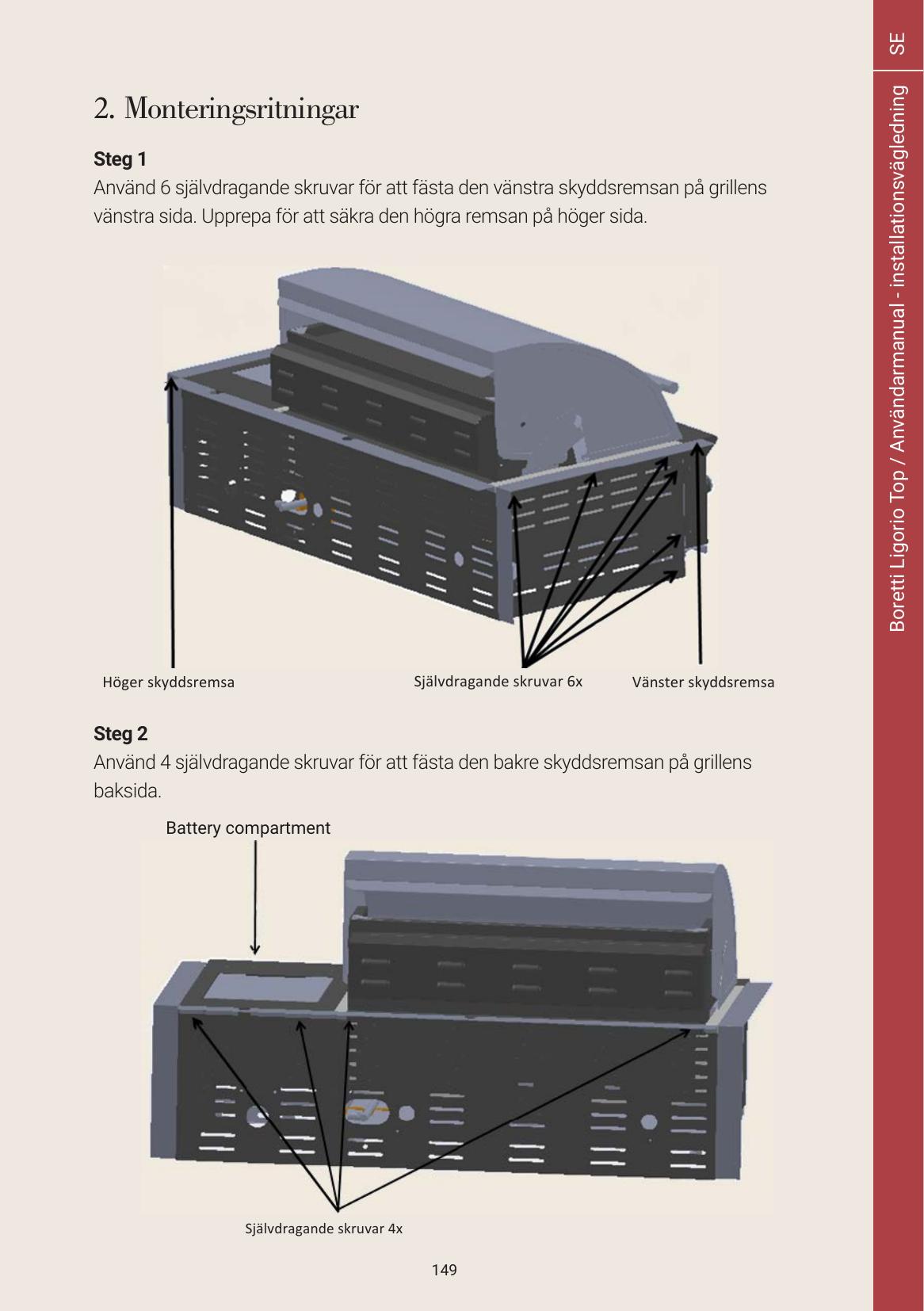

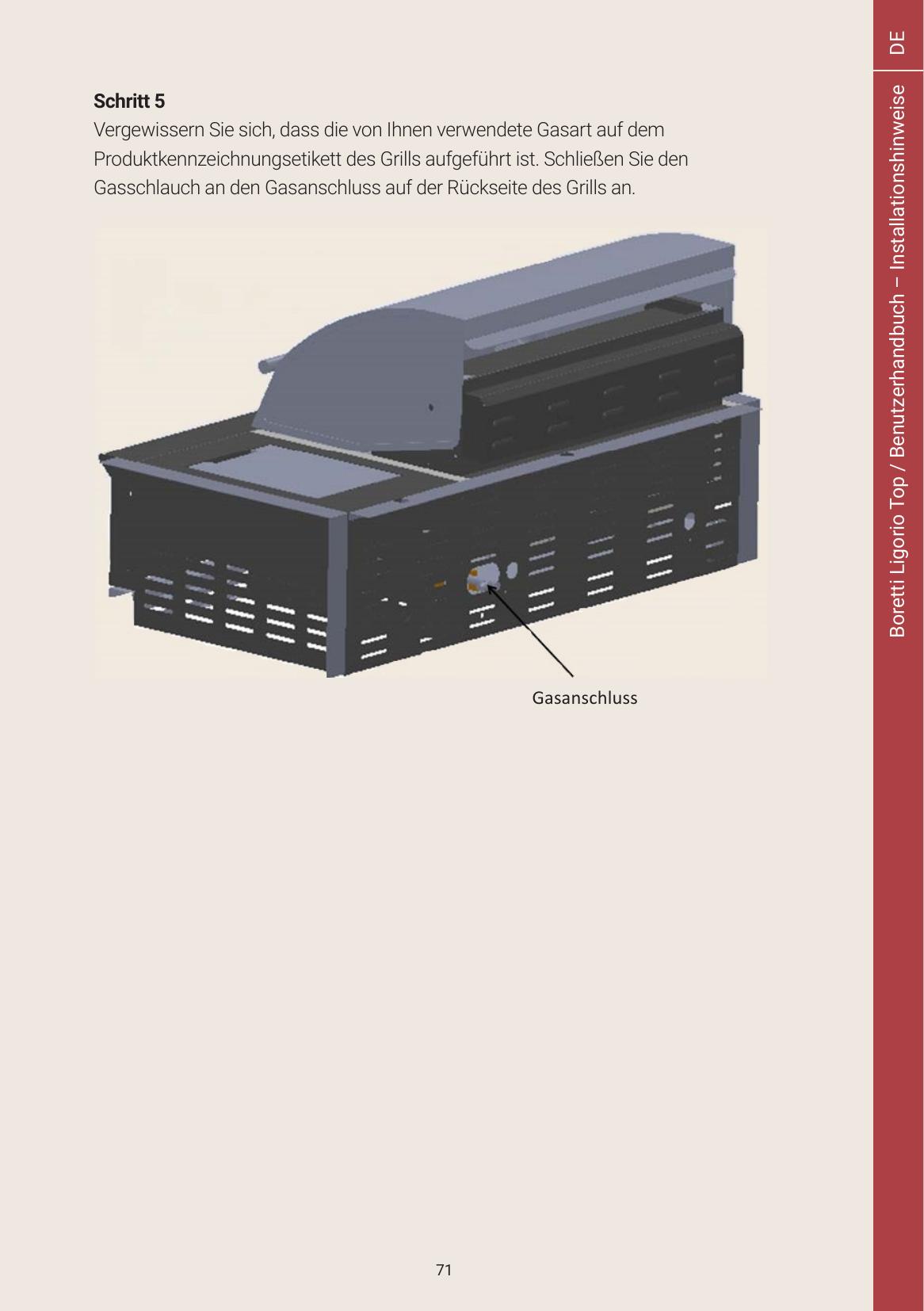

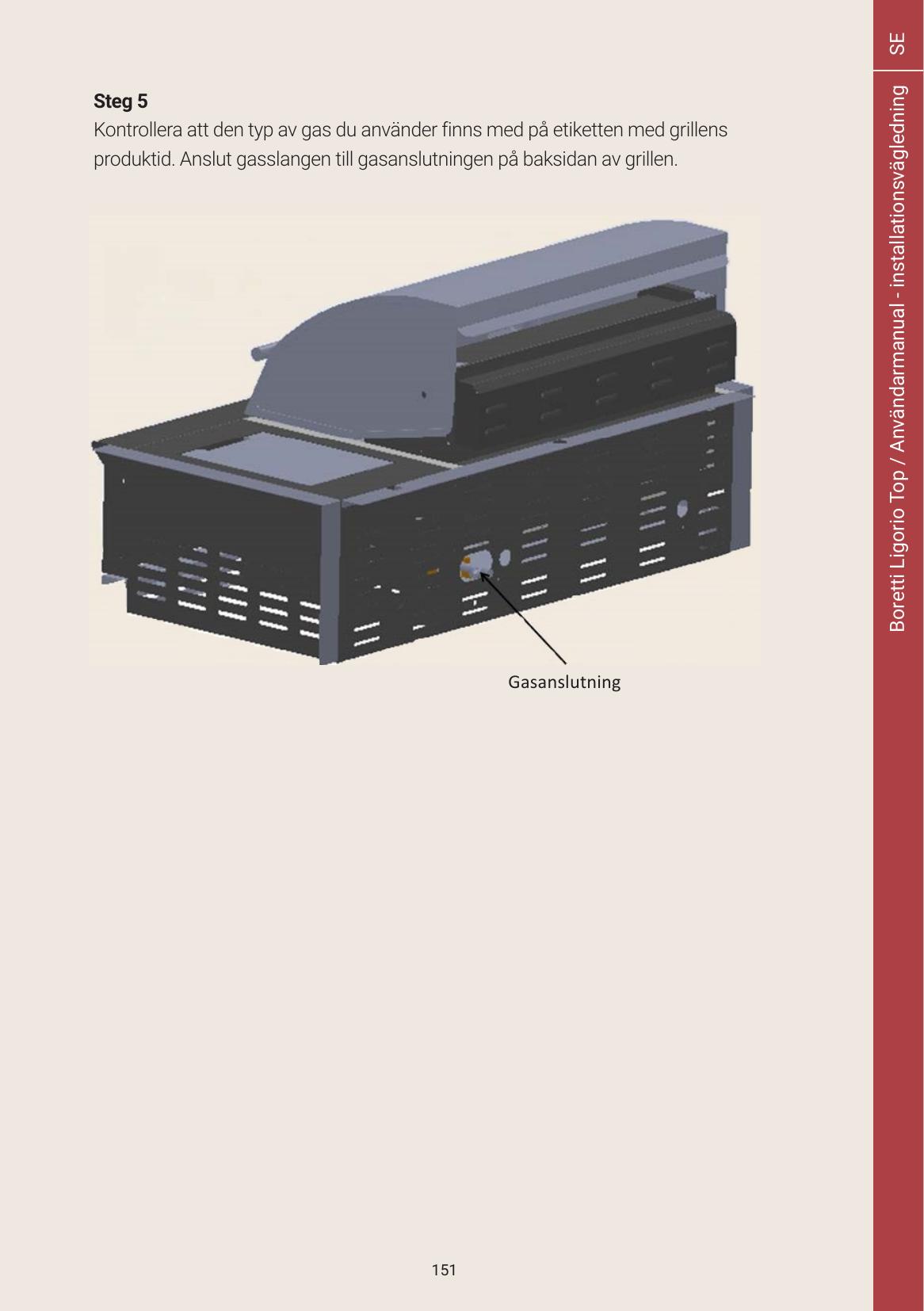

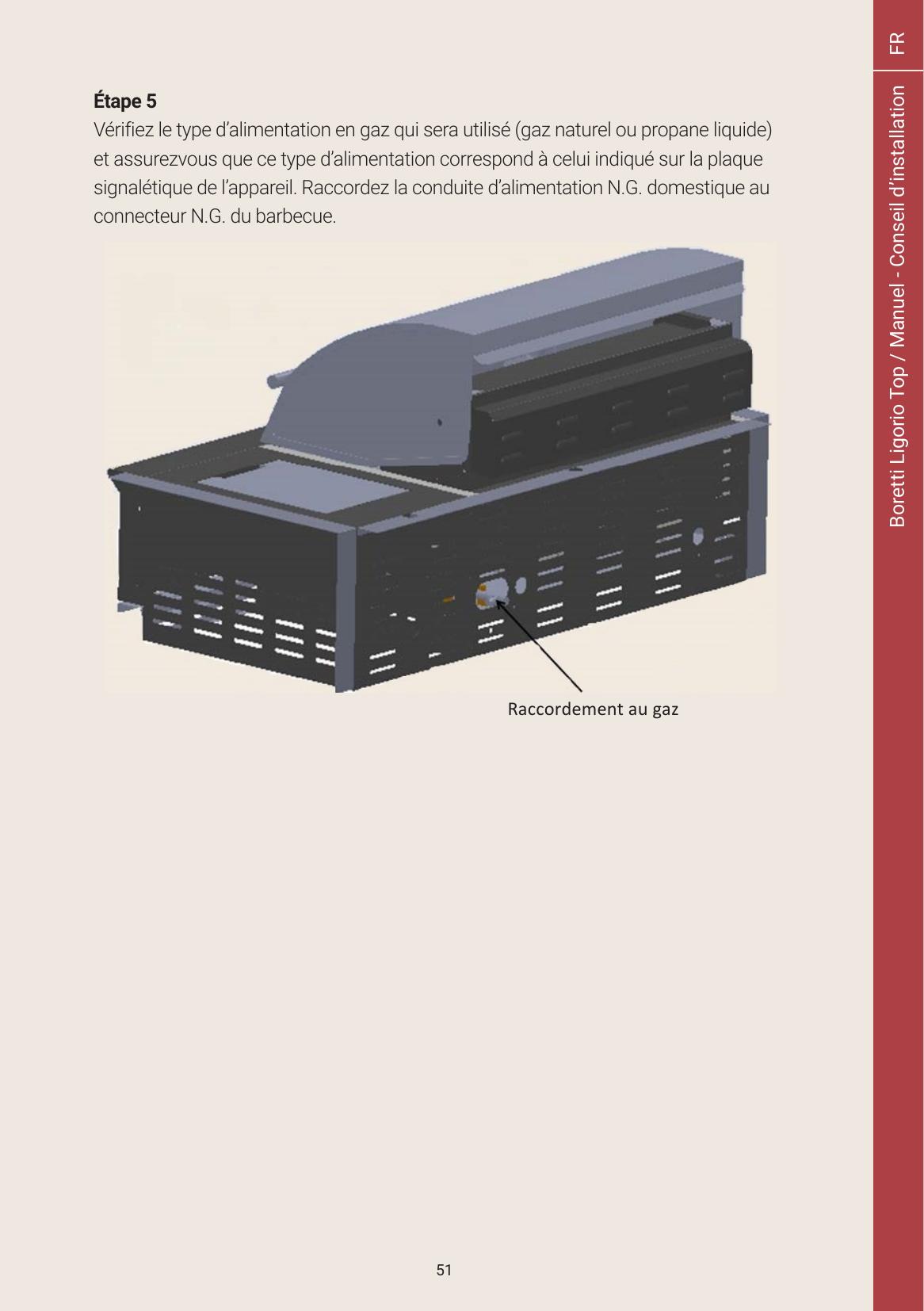

assembly - Page 1 assembly - Page 2 assembly - Page 3 assembly - Page 4 assembly - Page 5 assembly - Page 6 assembly - Page 7 assembly - Page 8 assembly - Page 9 assembly - Page 10 assembly - Page 11 assembly - Page 12 assembly - Page 13 assembly - Page 14 assembly - Page 15 assembly - Page 16 assembly - Page 17 assembly - Page 18 assembly - Page 19 assembly - Page 20 assembly - Page 21 assembly - Page 22 assembly - Page 23 assembly - Page 24 assembly - Page 25 assembly - Page 26 assembly - Page 27
