BKV178 - Assembly instructions

  • Updated

This article explains how to assemble the BKV178 by Boretti.

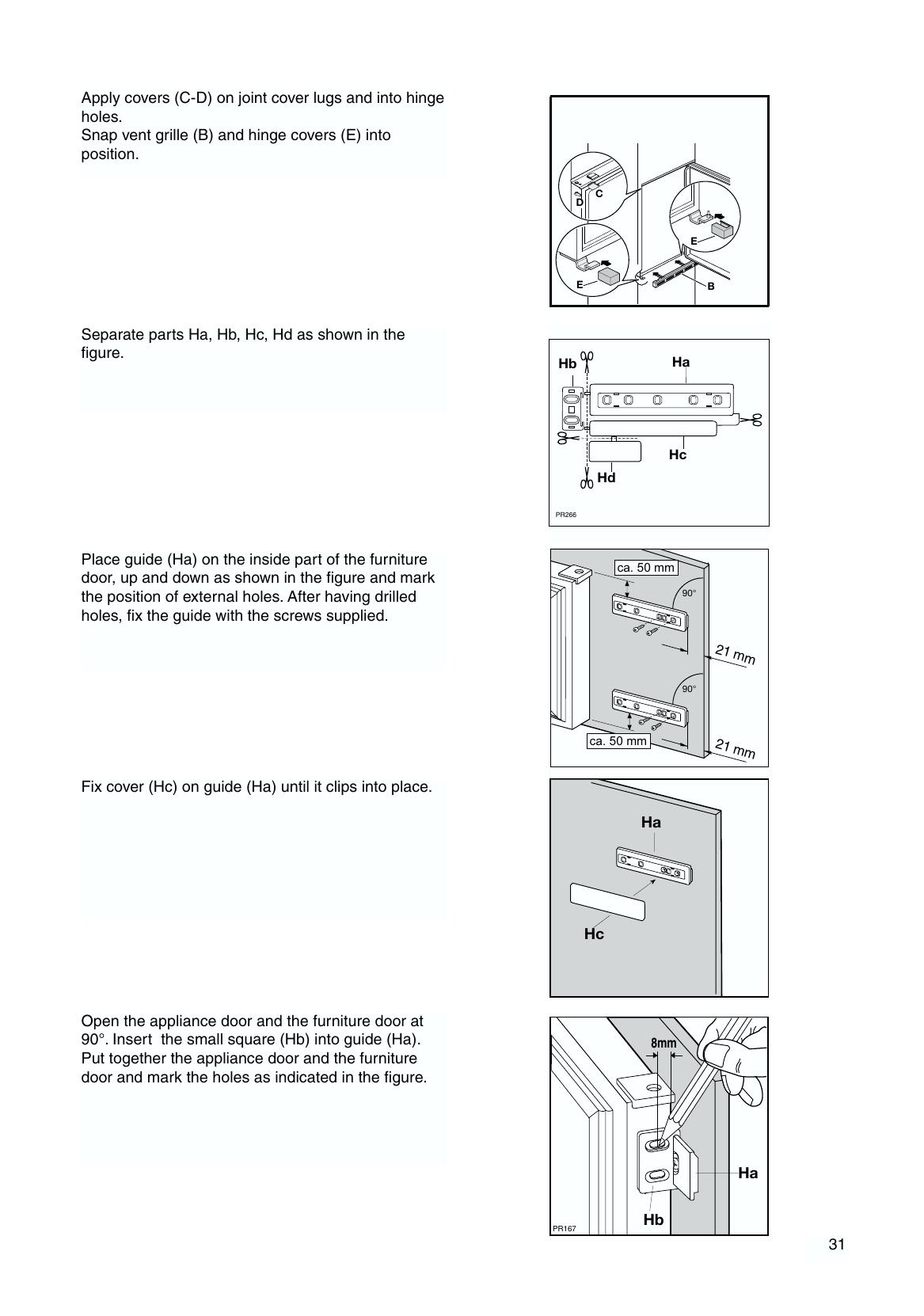

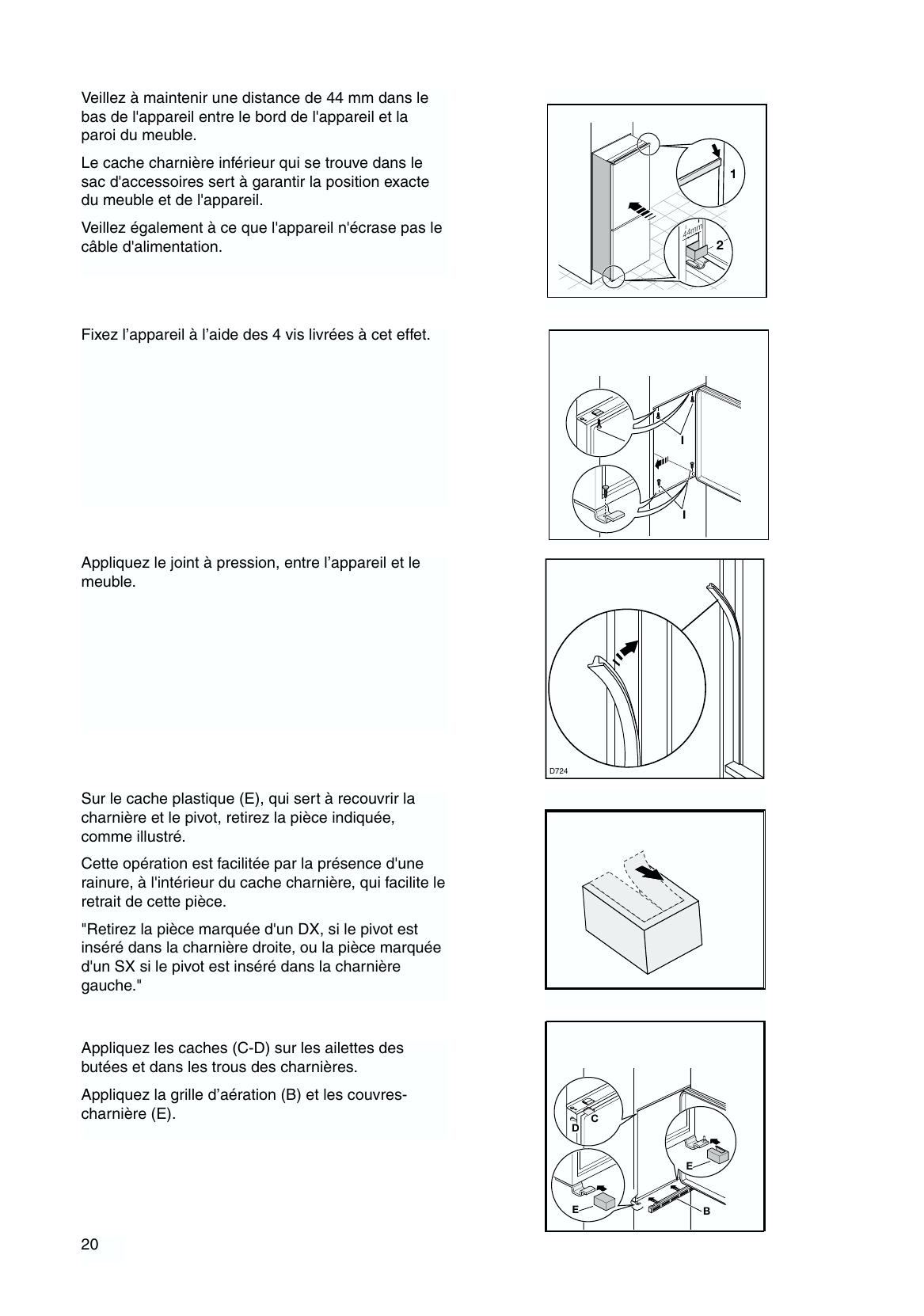

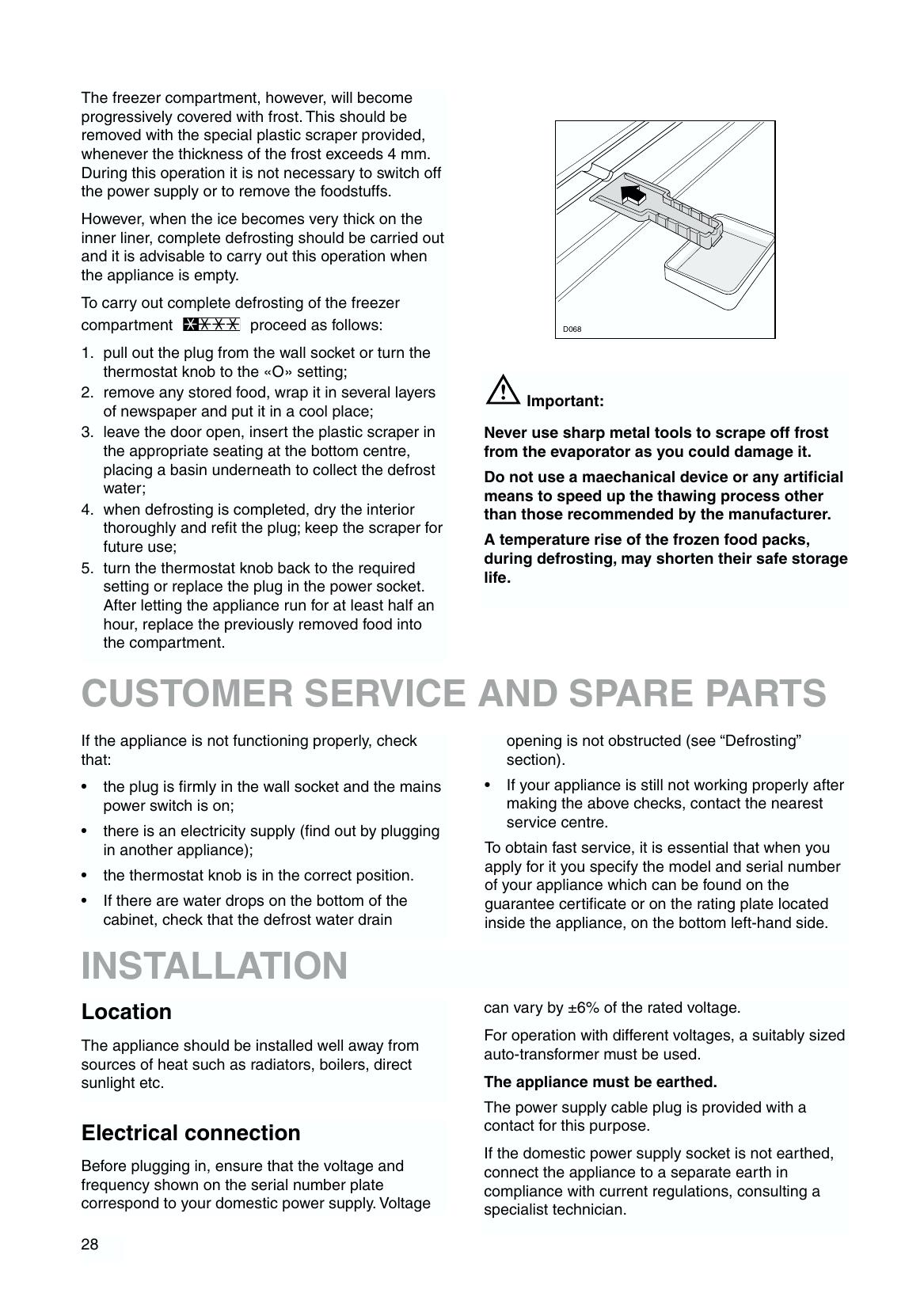

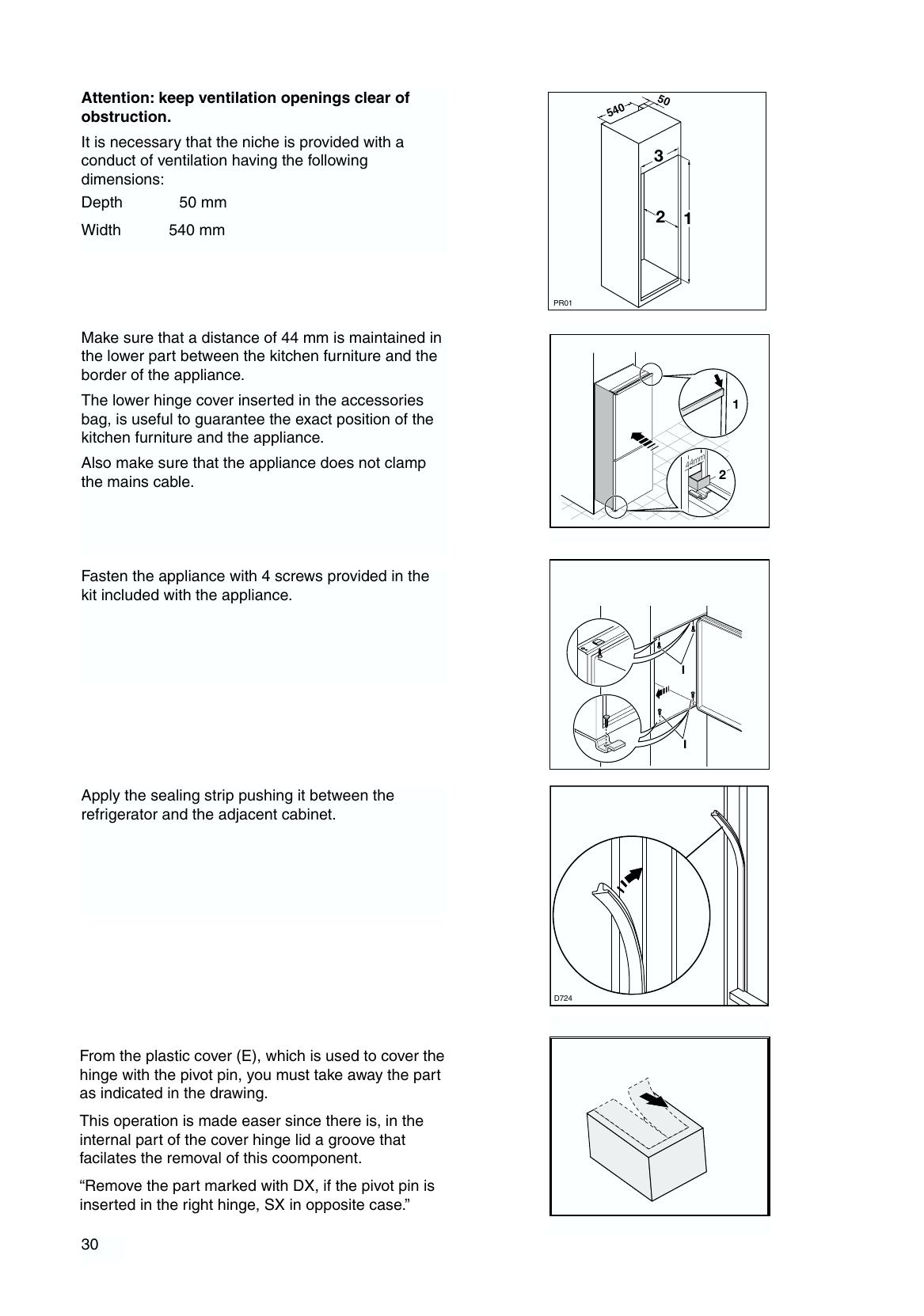

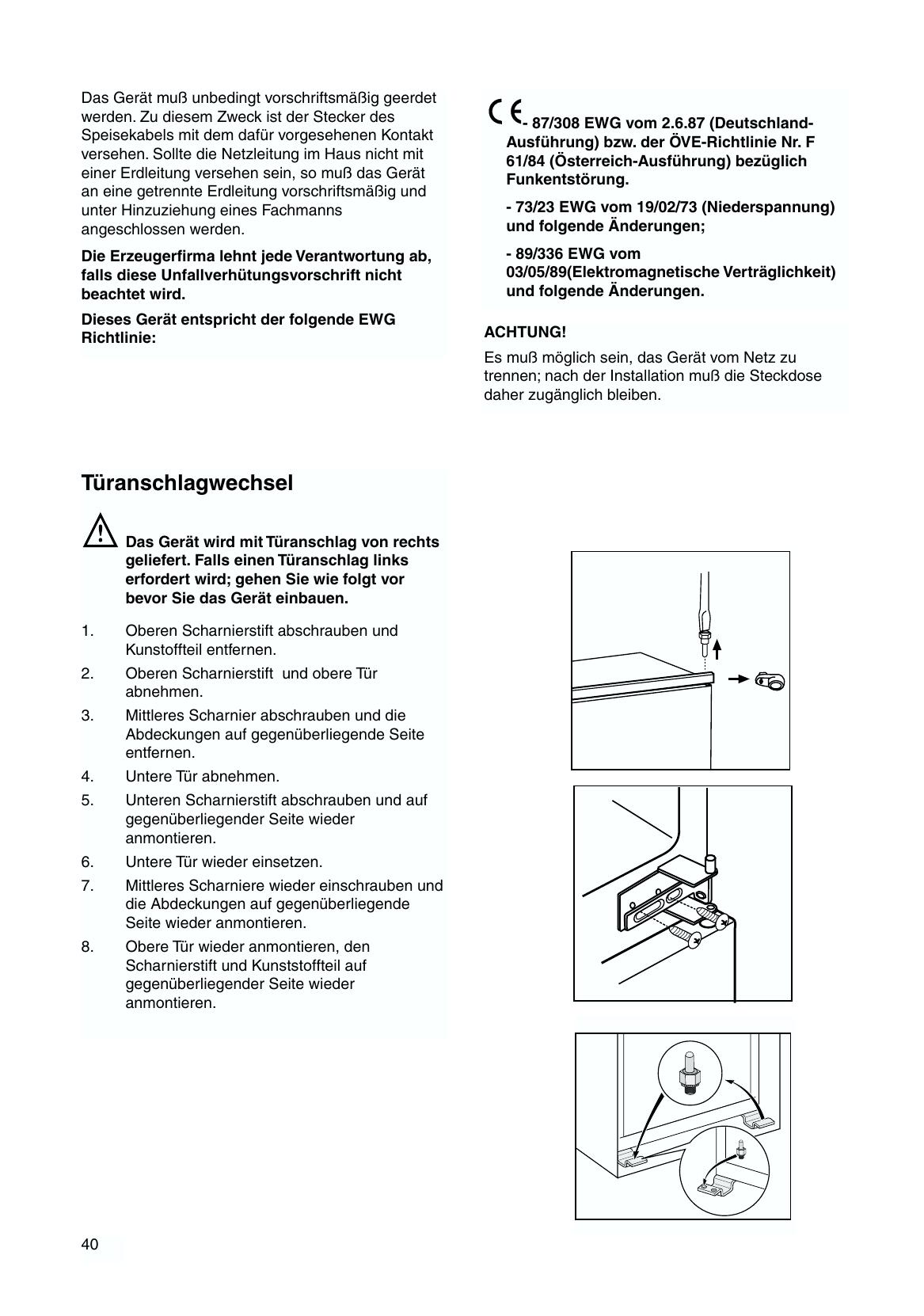

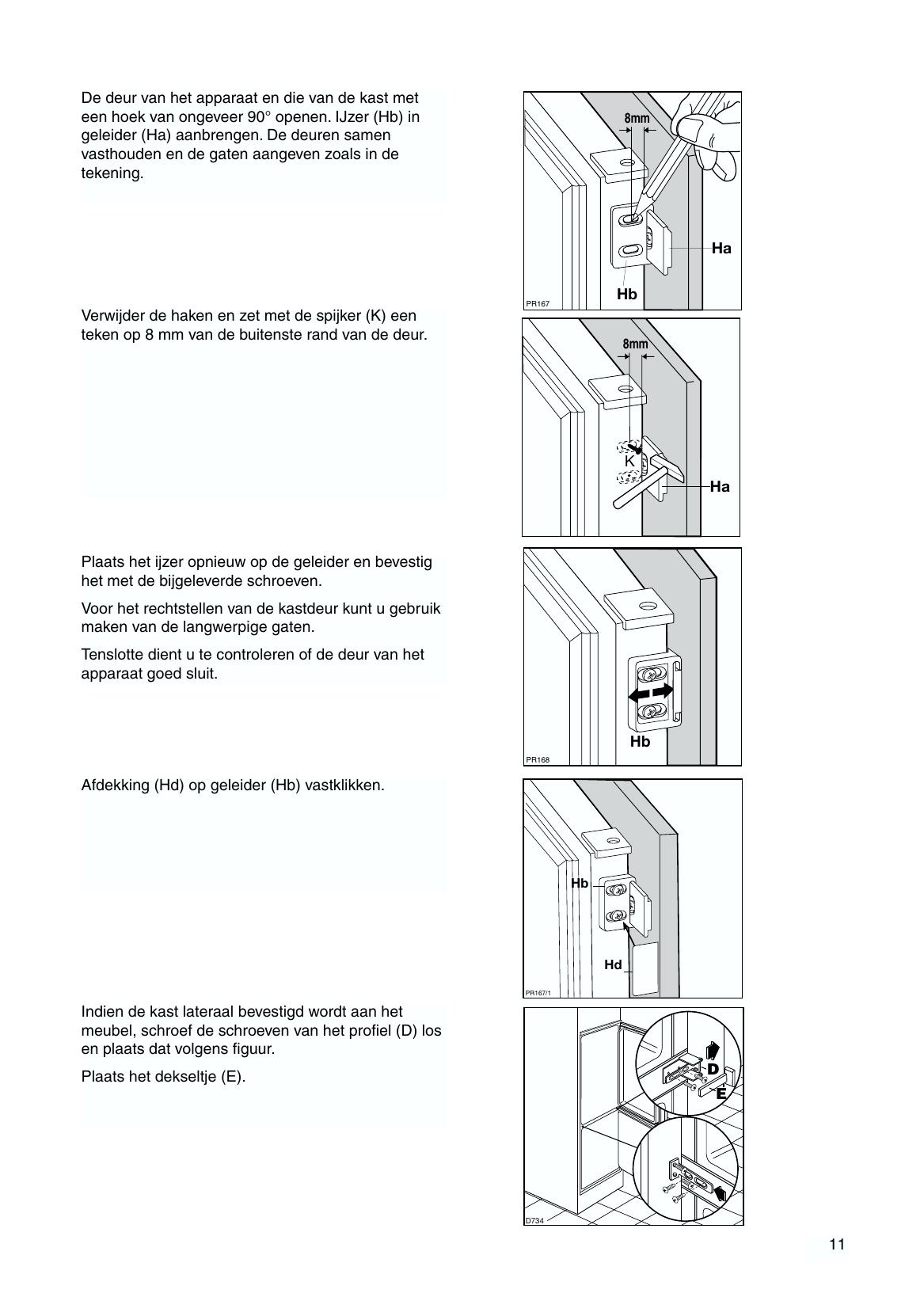

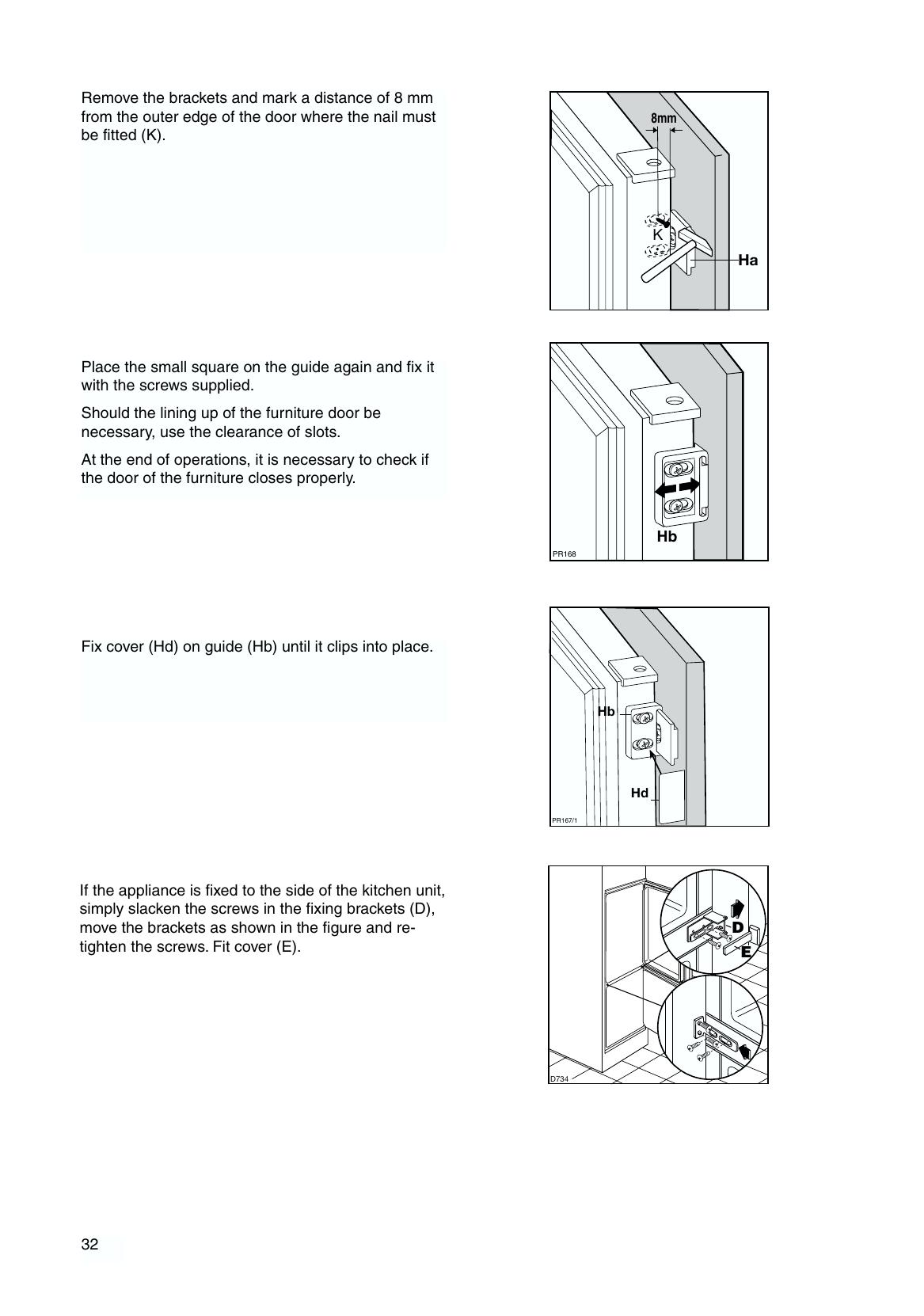

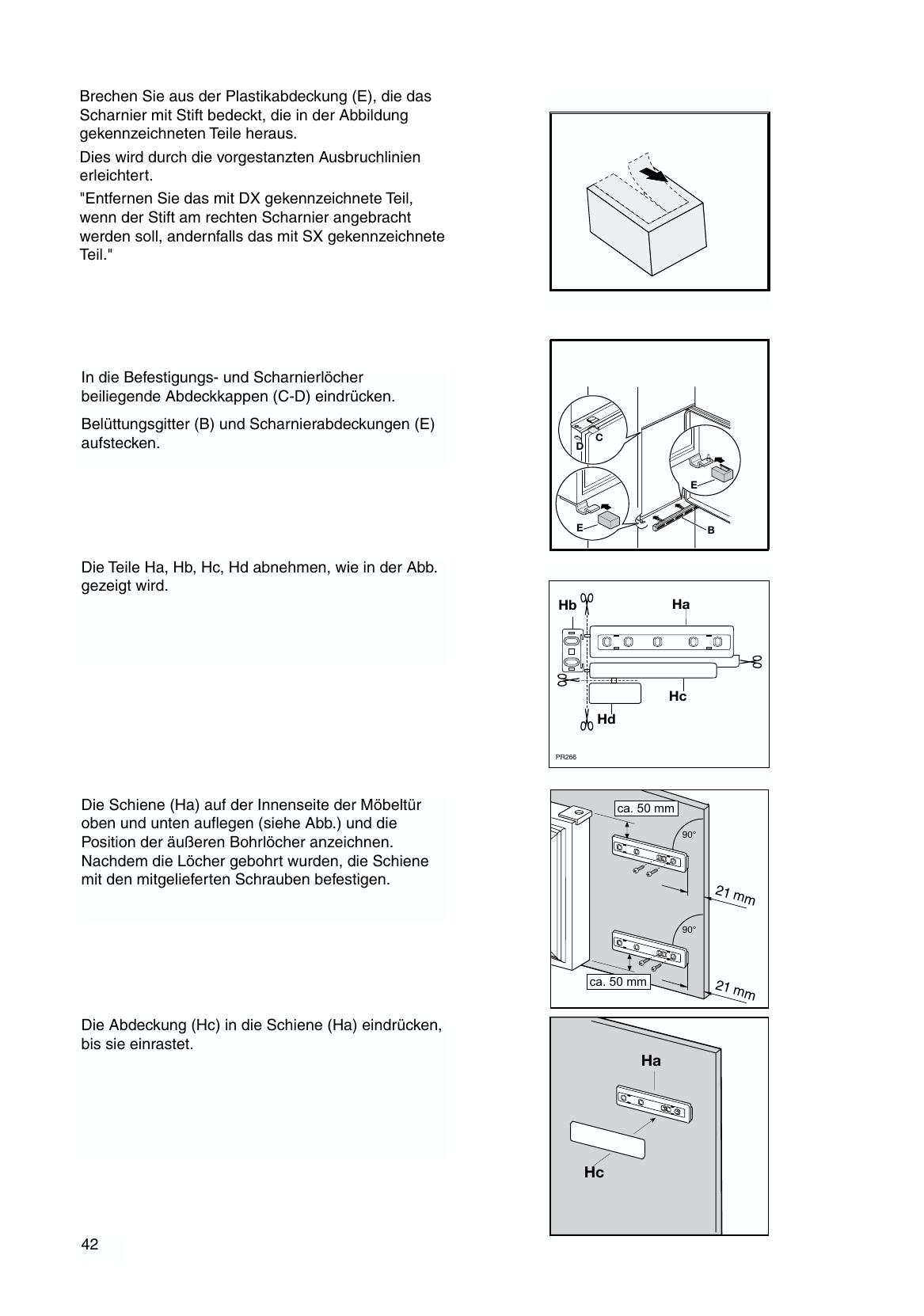

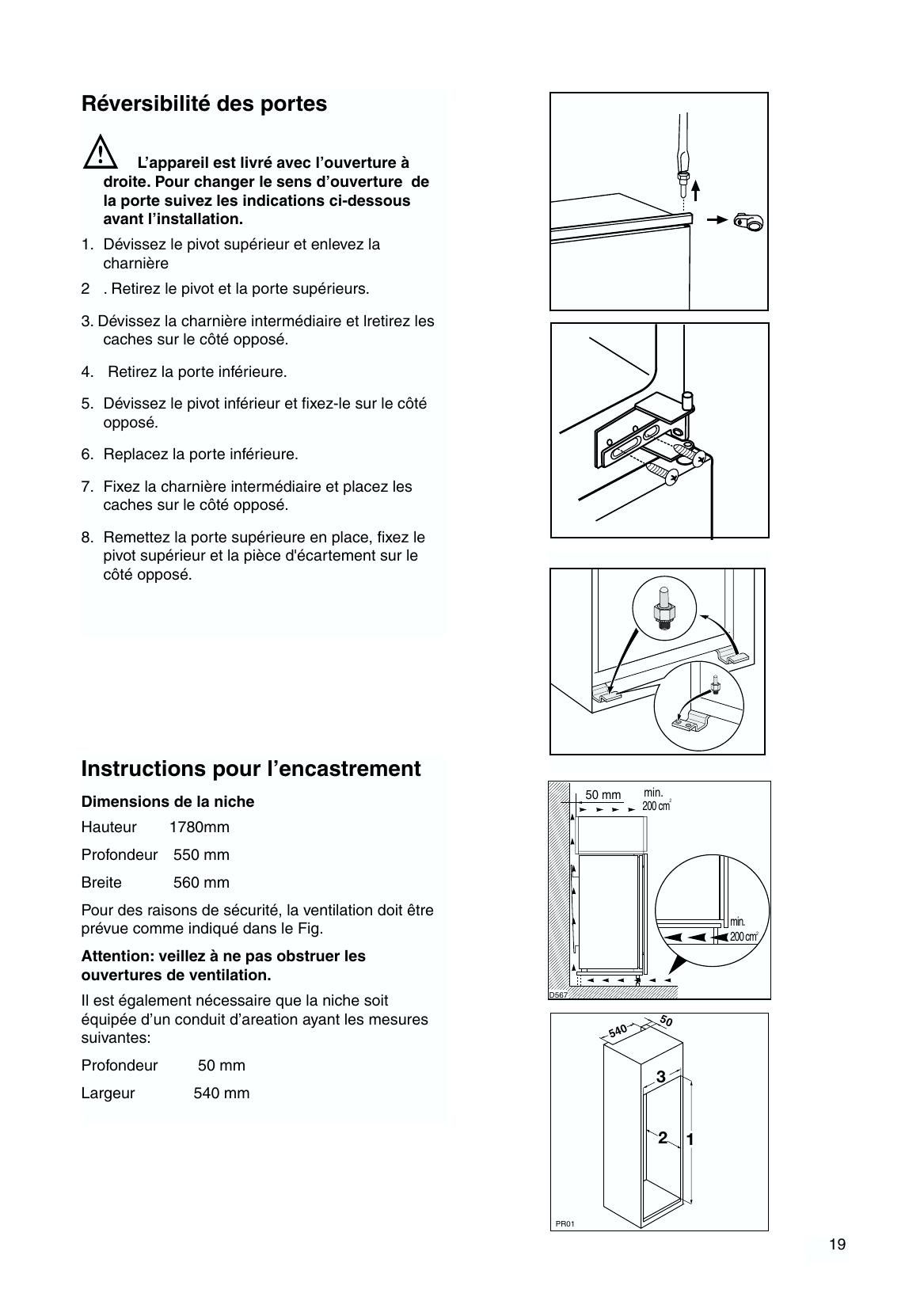

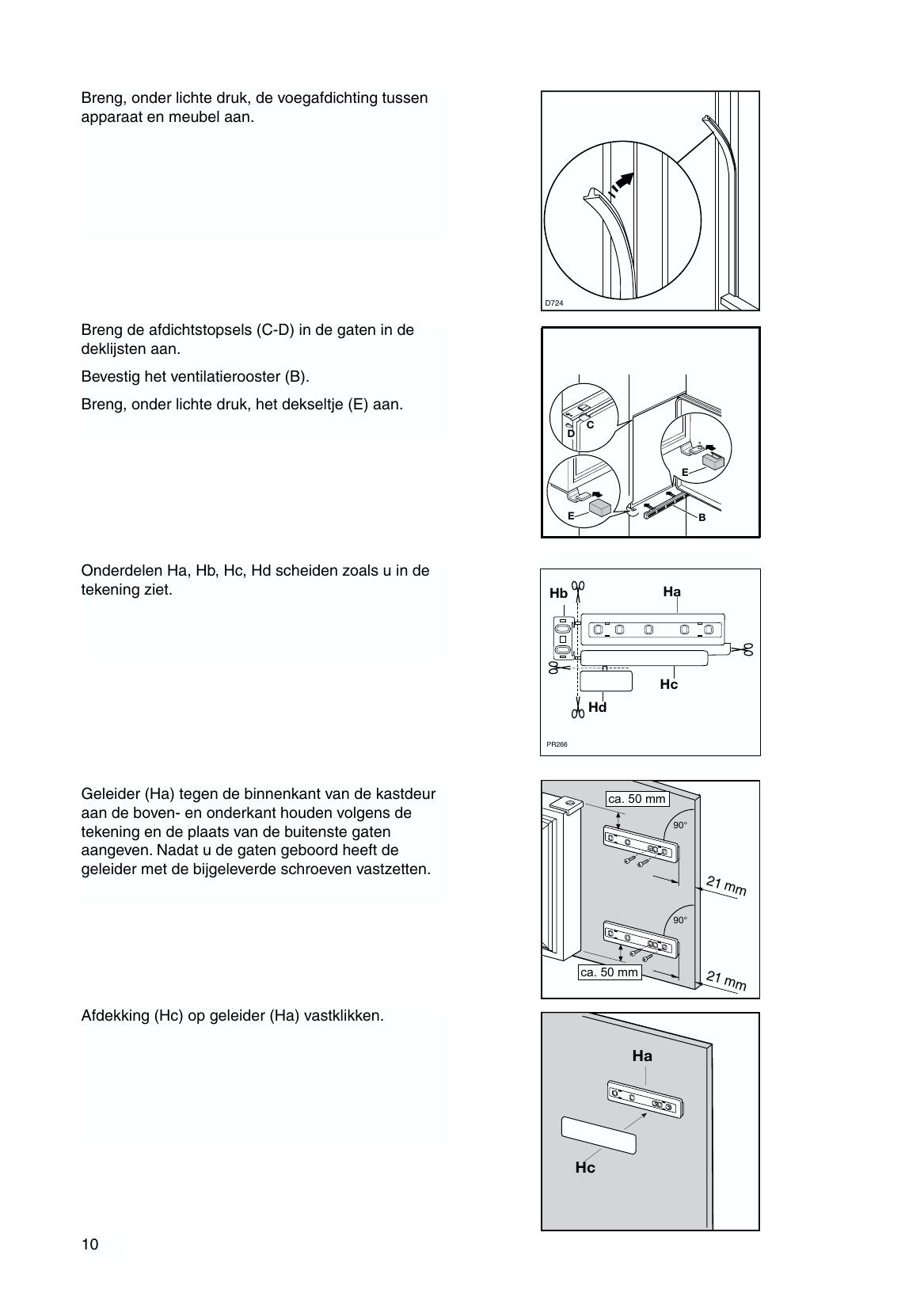

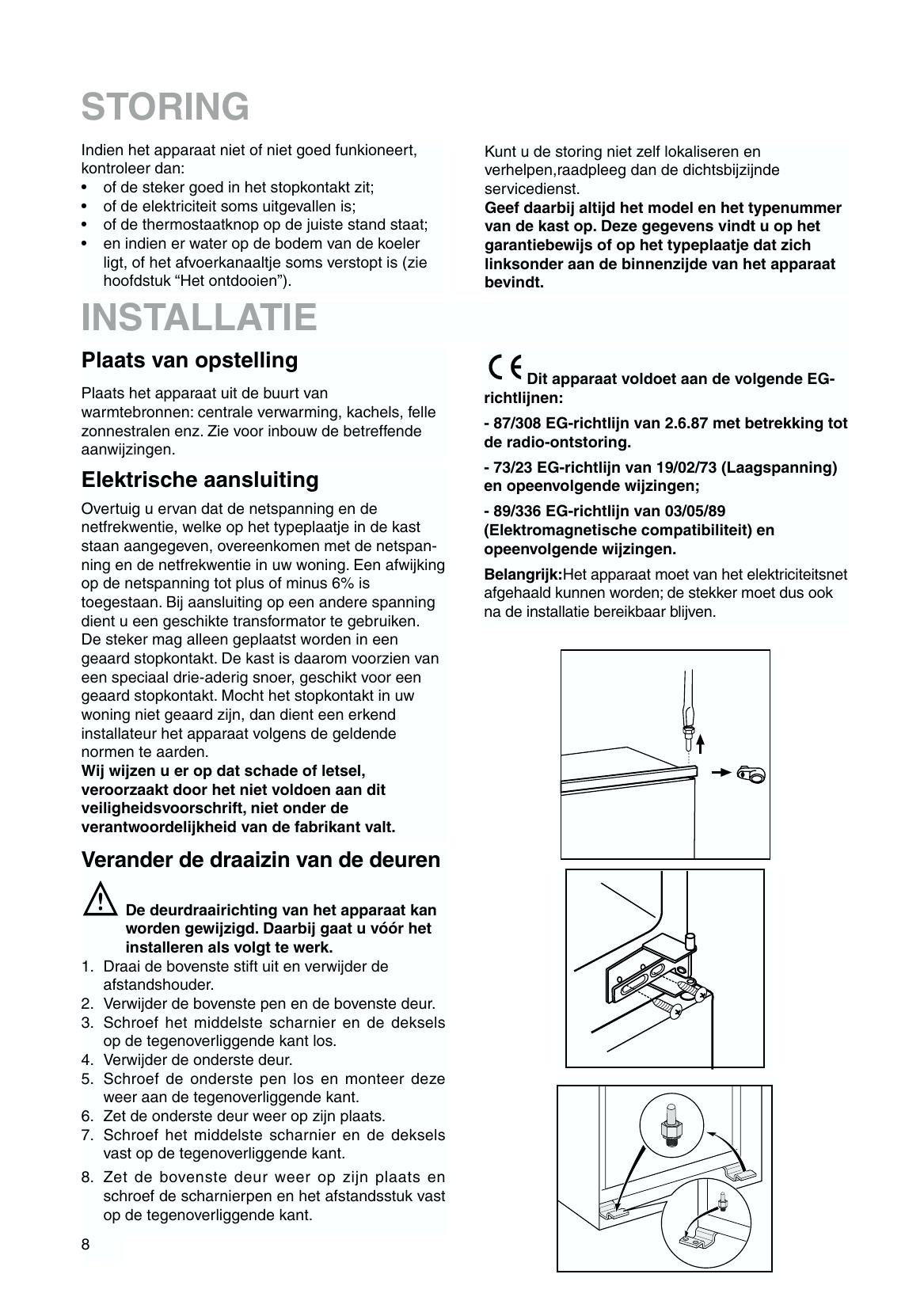

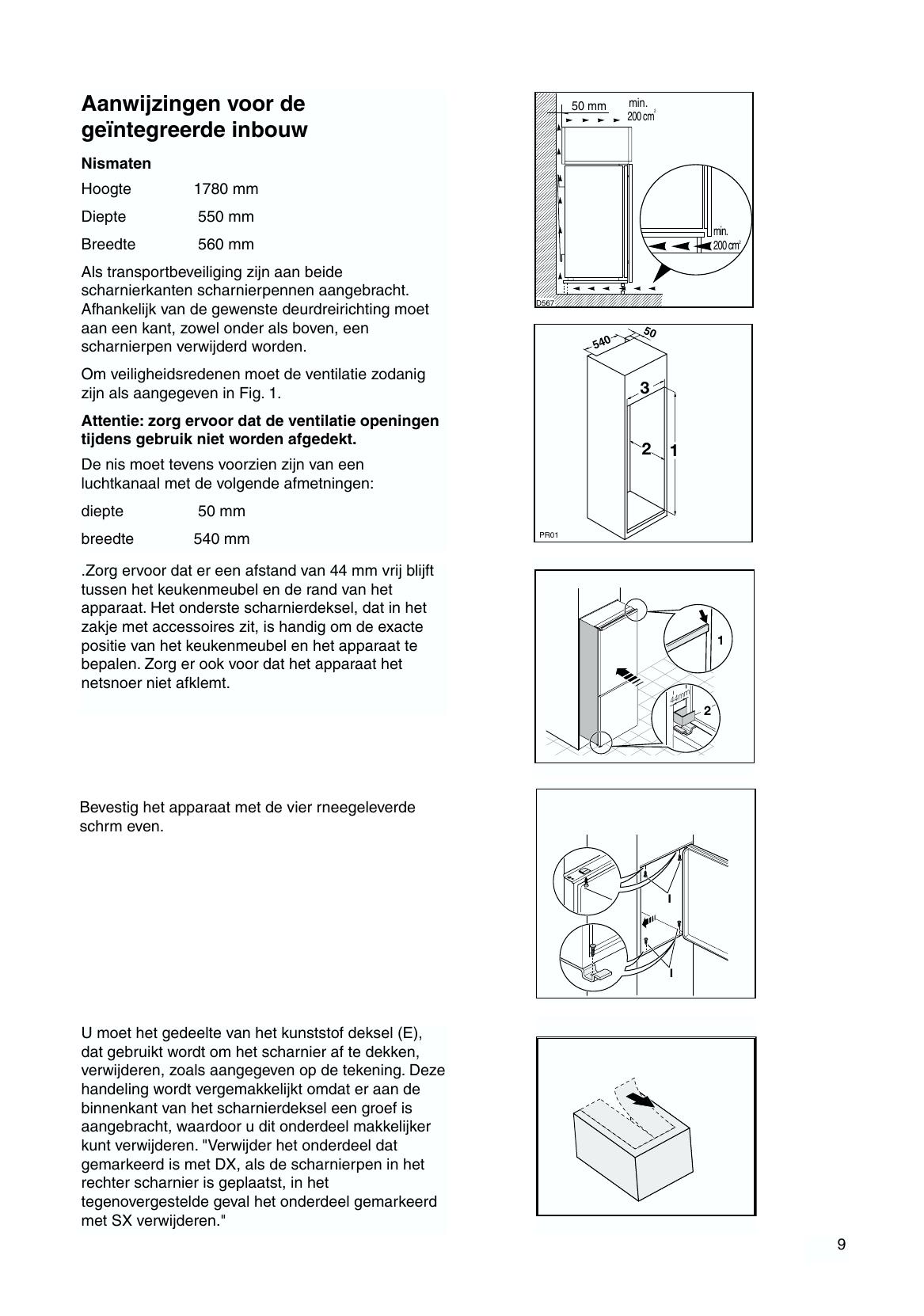

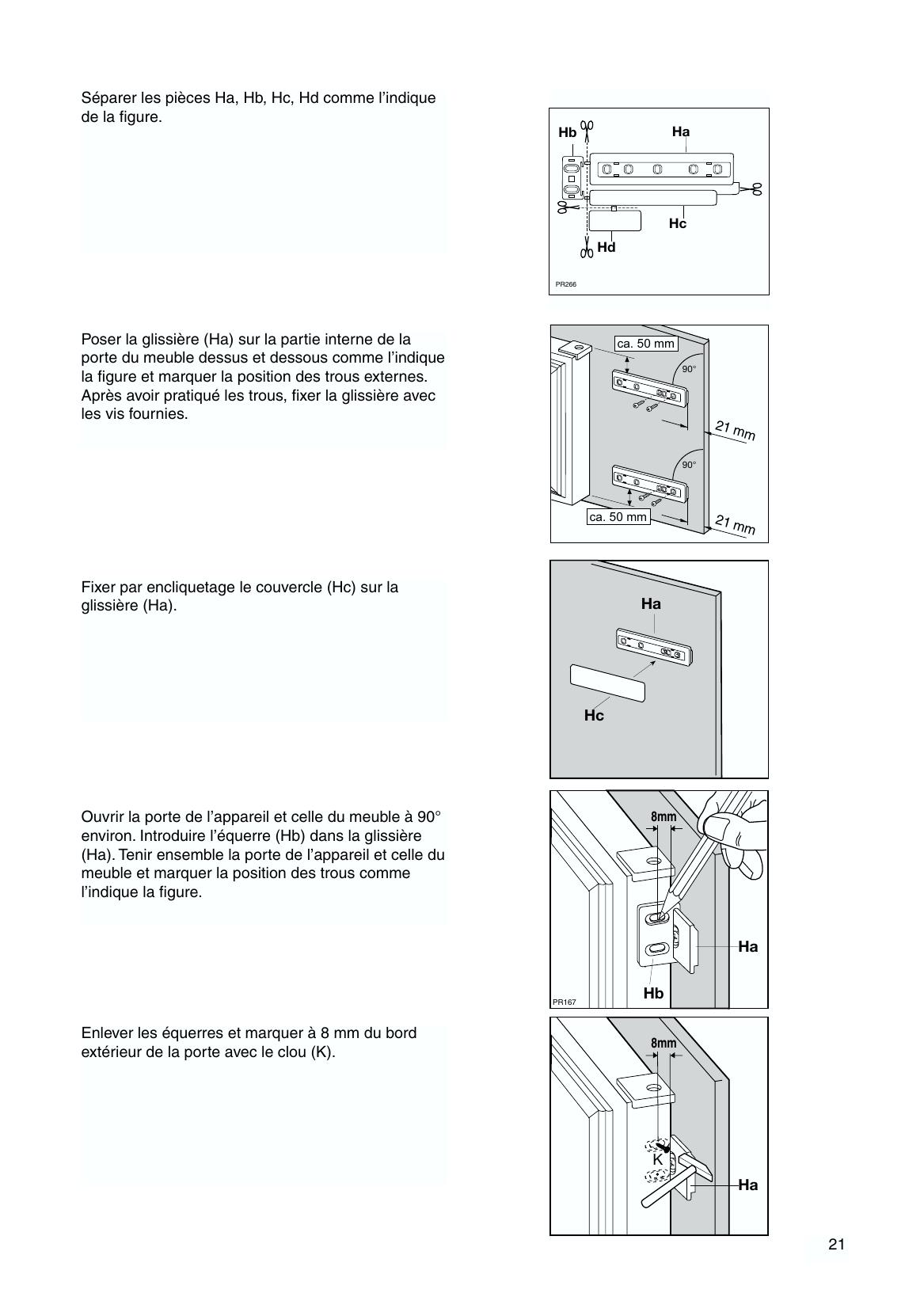

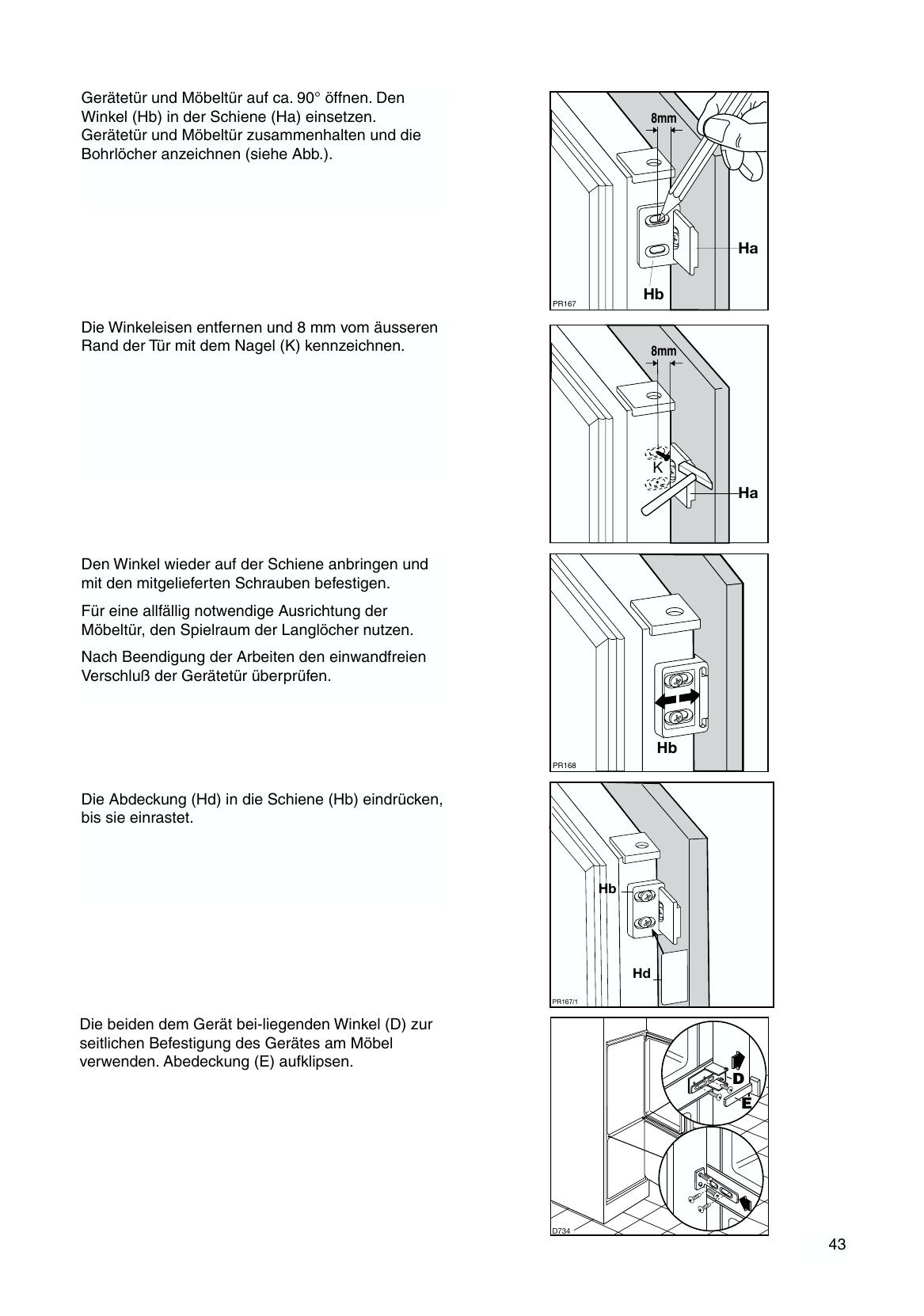

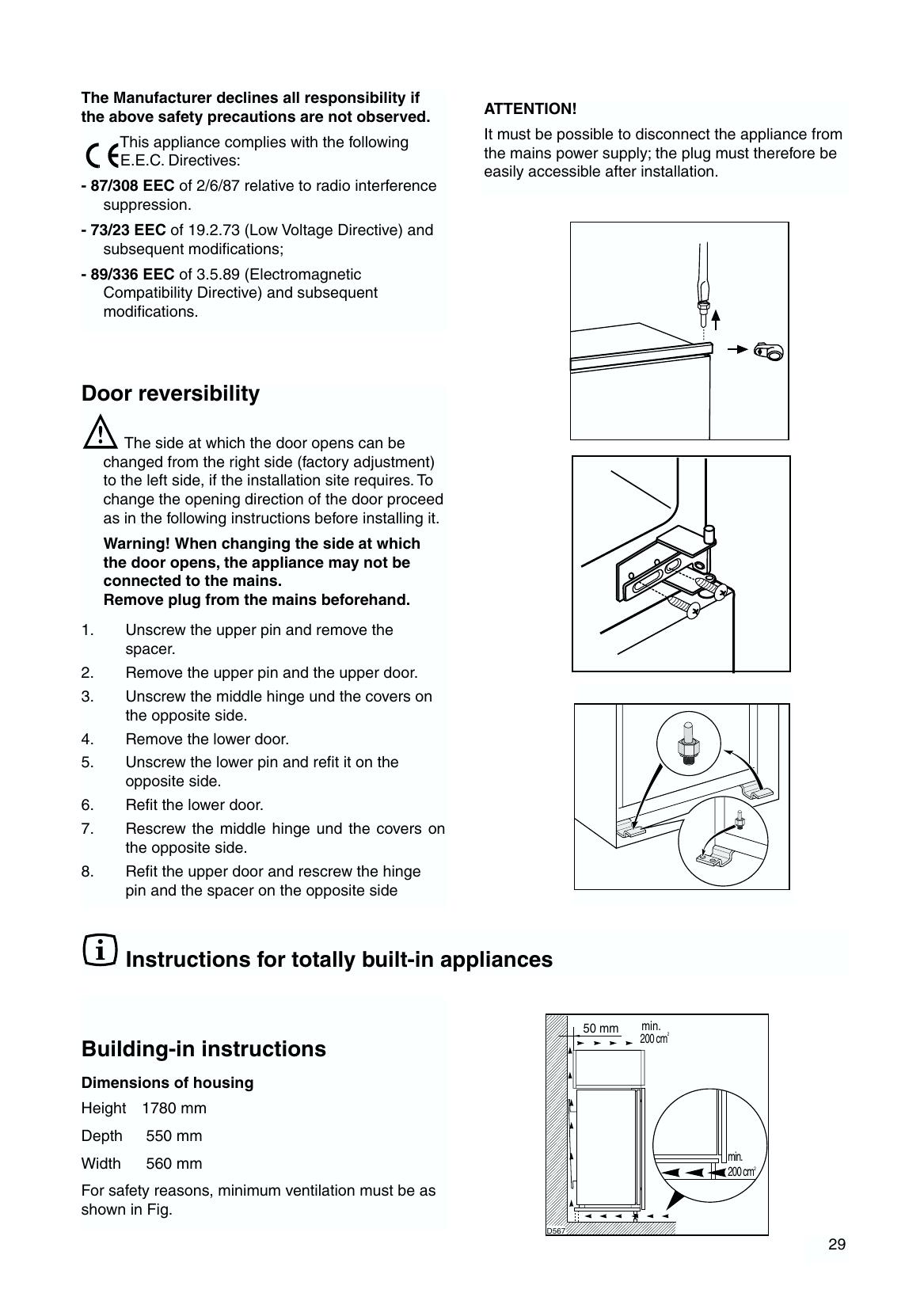

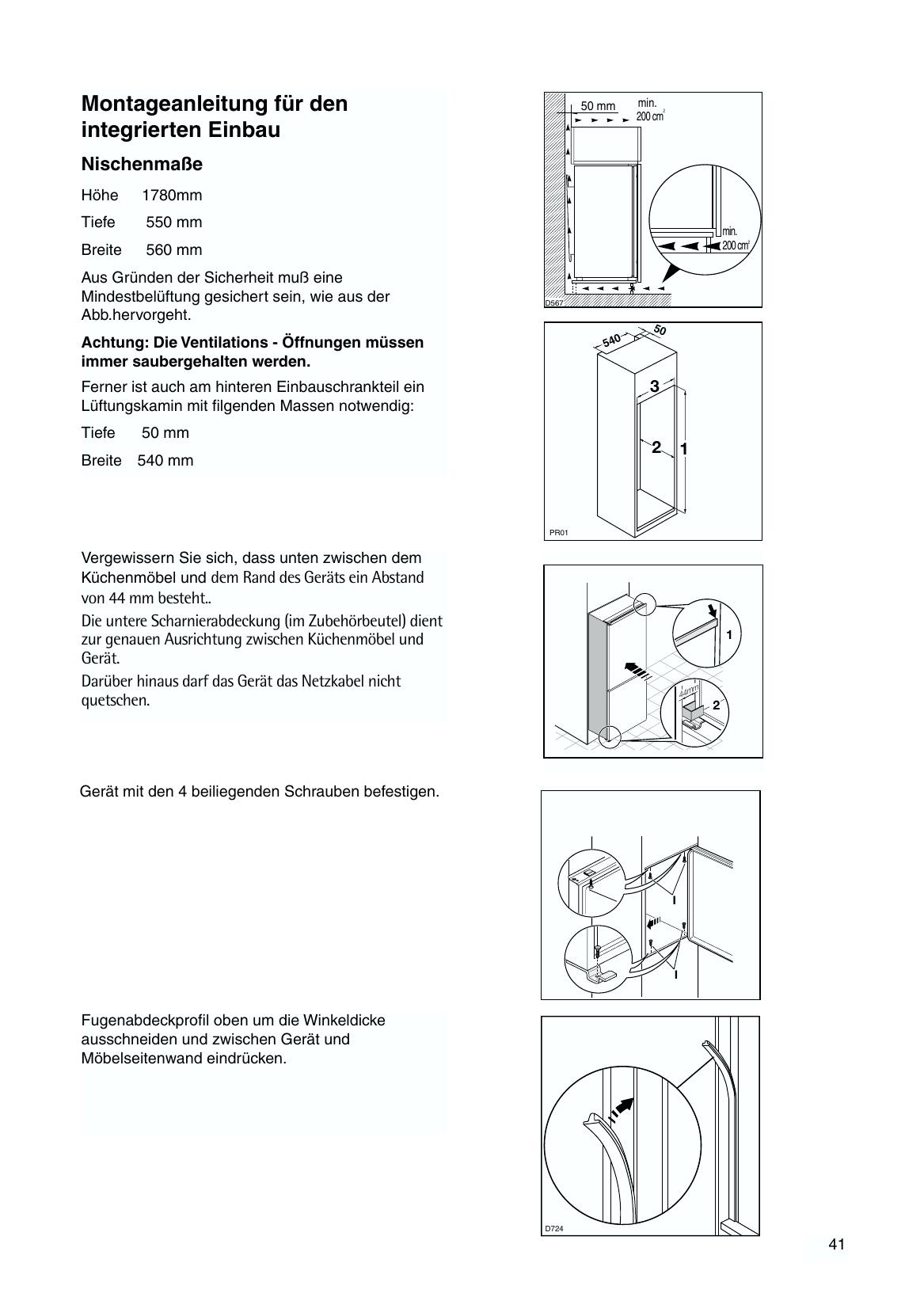

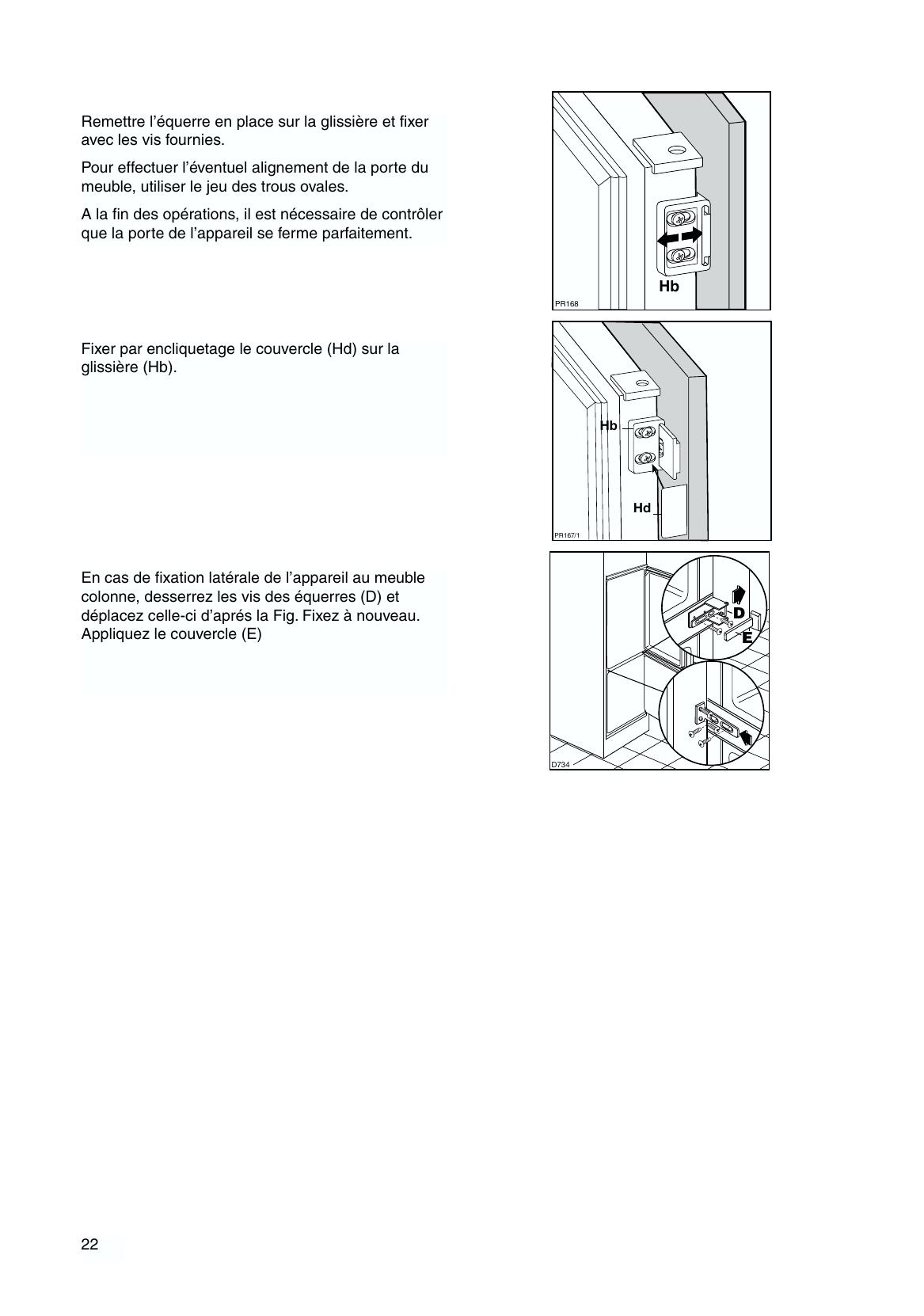

assembly - Page 1 assembly - Page 2 assembly - Page 3 assembly - Page 4 assembly - Page 5 assembly - Page 6 assembly - Page 7 assembly - Page 8 assembly - Page 9 assembly - Page 10 assembly - Page 11 assembly - Page 12 assembly - Page 13 assembly - Page 14 assembly - Page 15 assembly - Page 16 assembly - Page 17
