CARBONE - Montage-instructies

  • Bijgewerkt

Dit artikel legt uit hoe u de CARBONE van Boretti in elkaar zet.

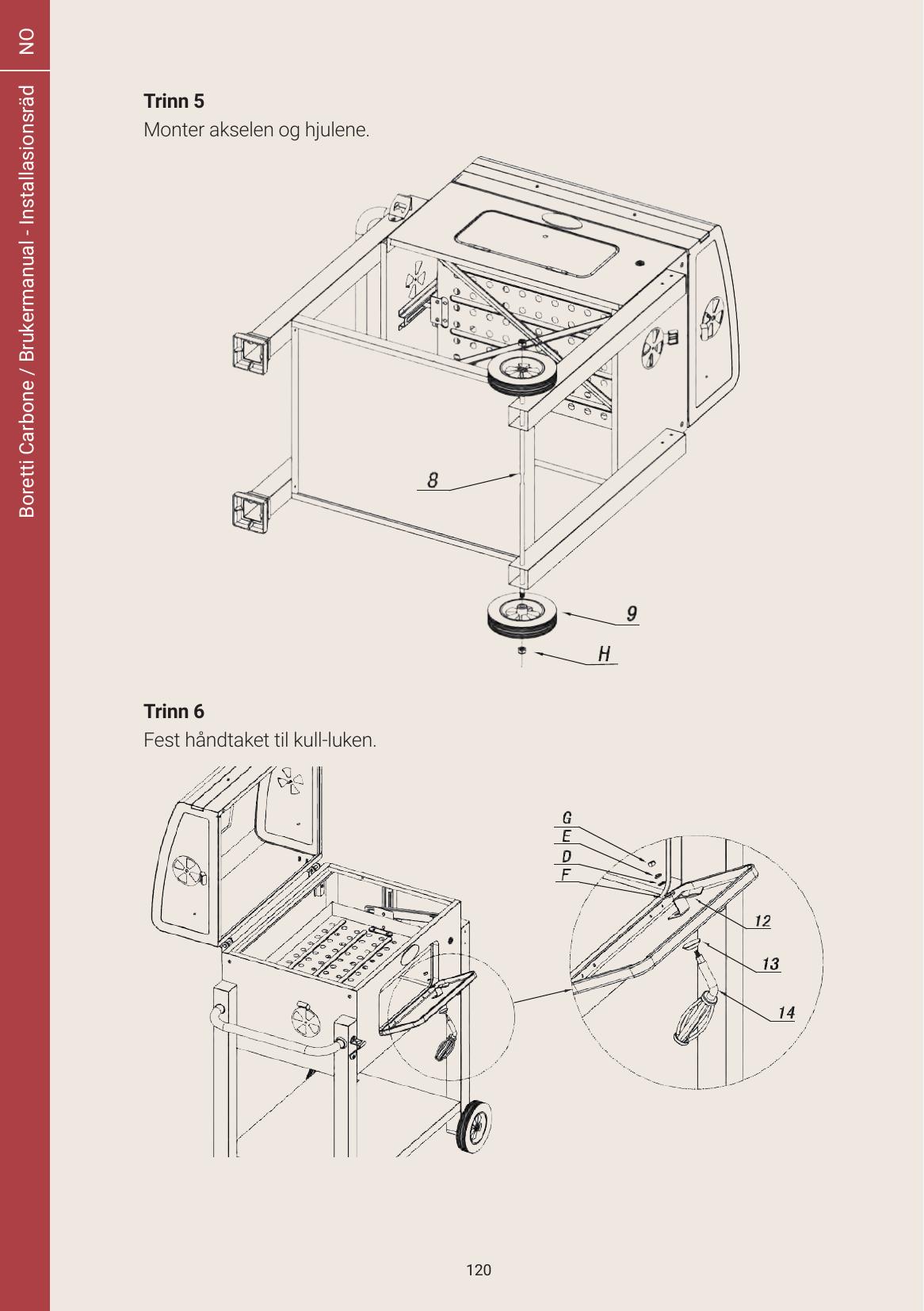

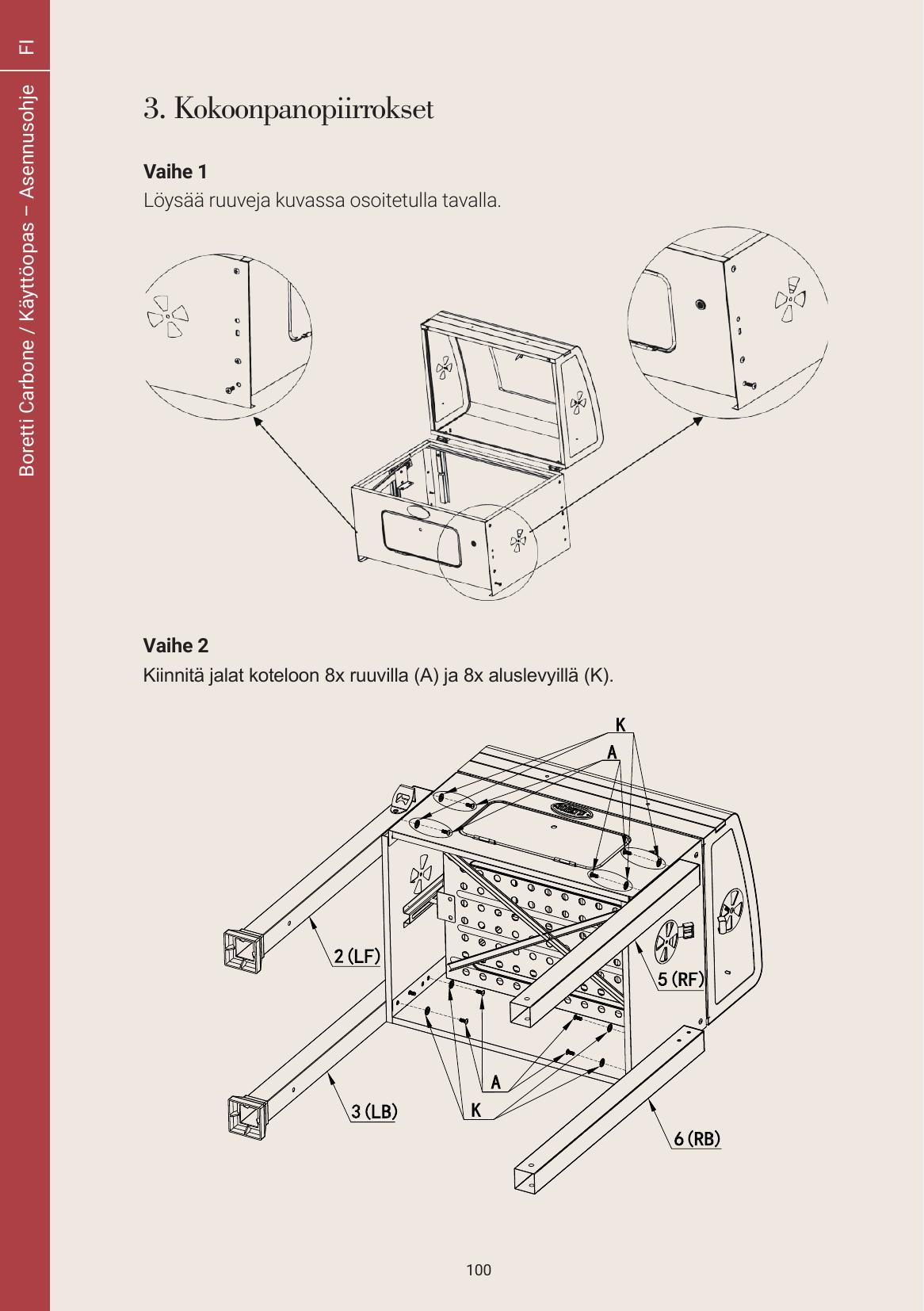

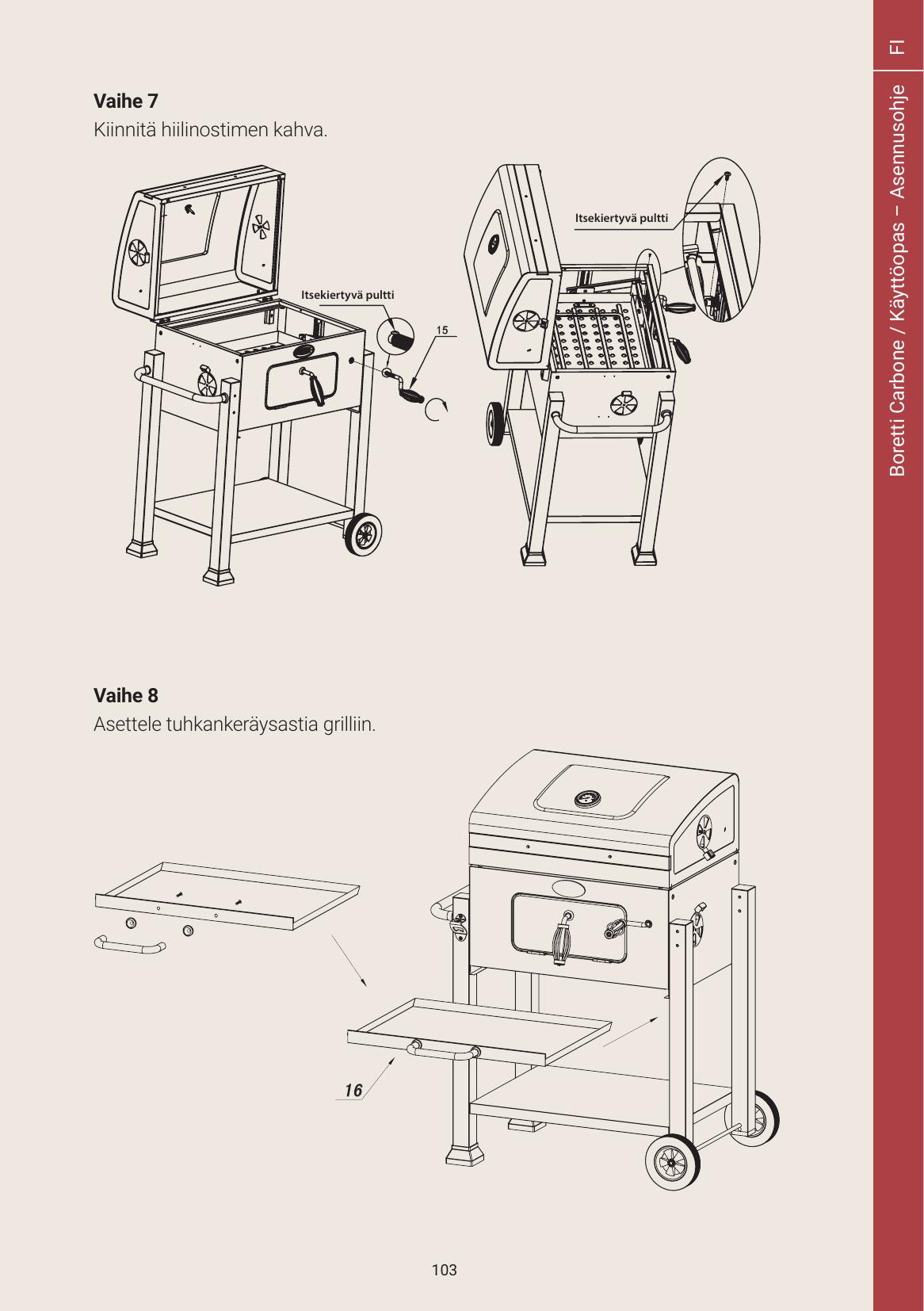

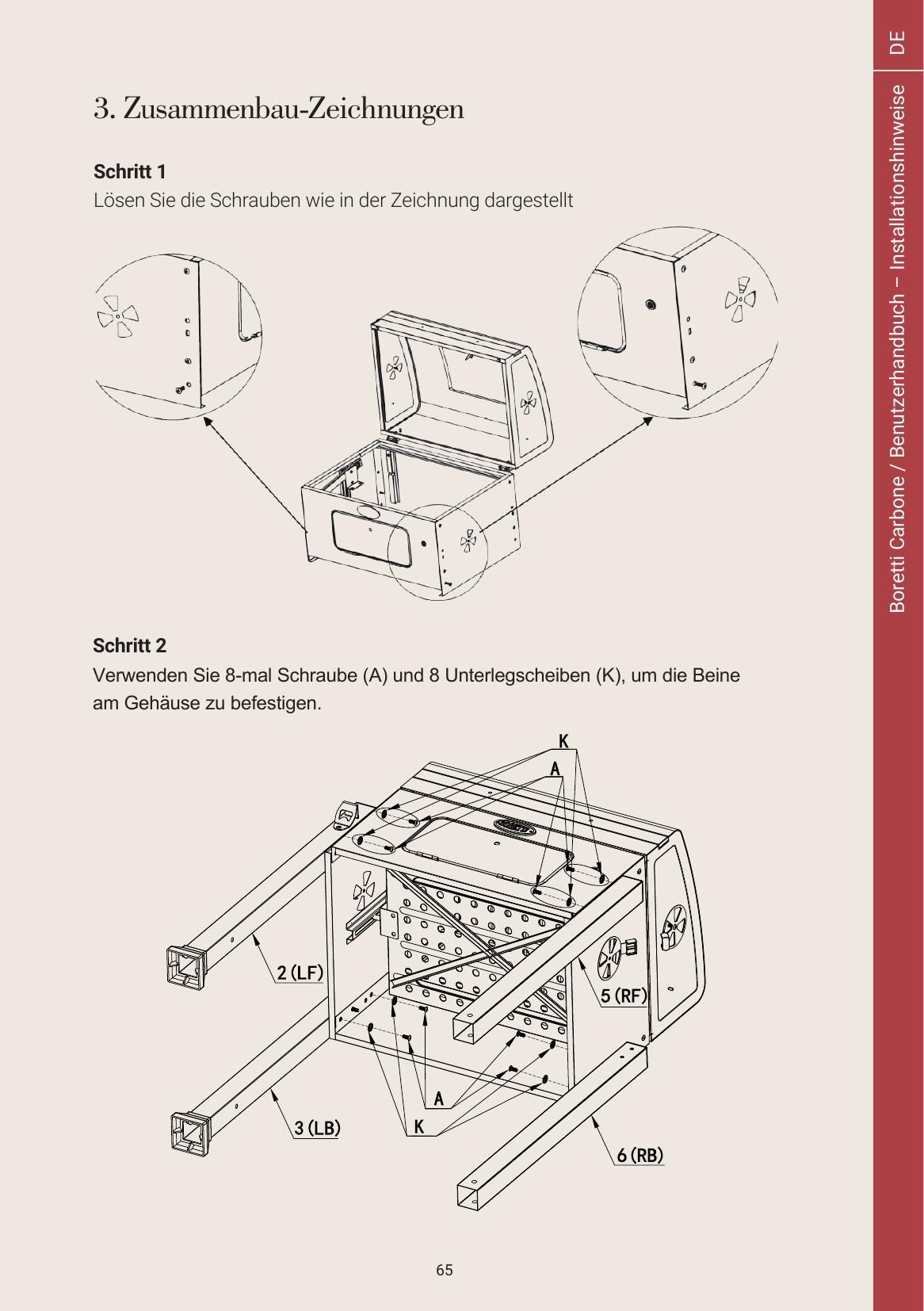

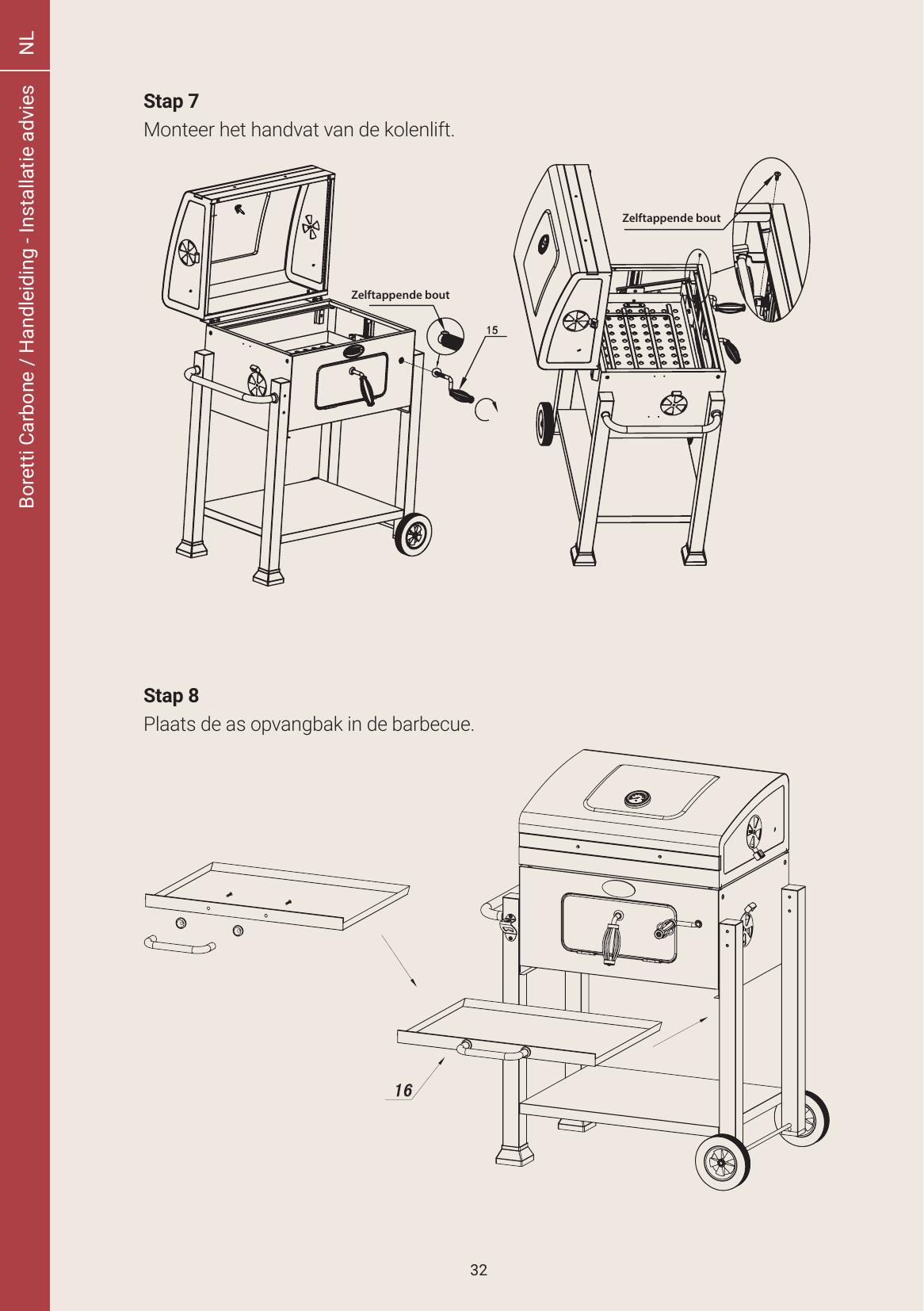

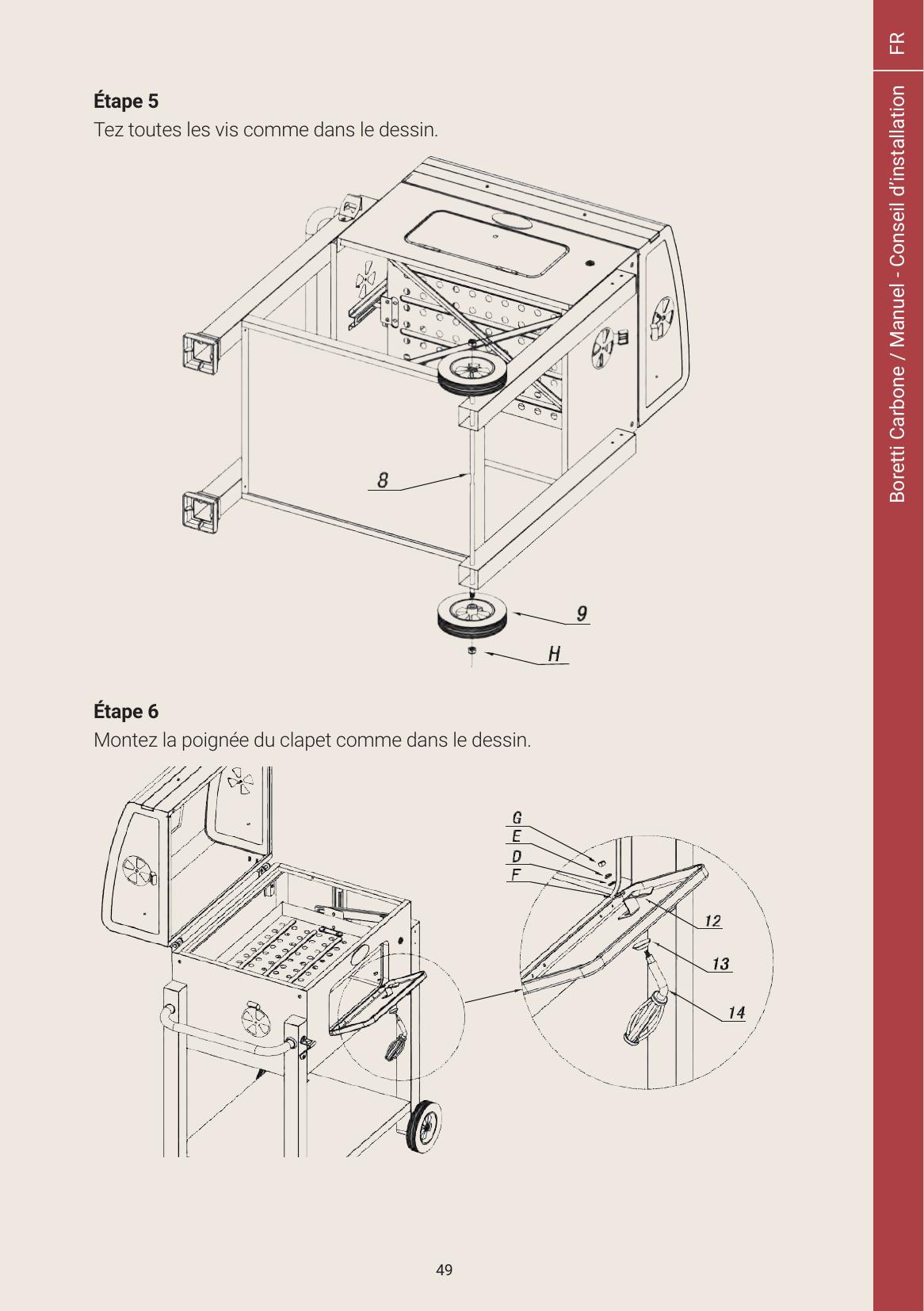

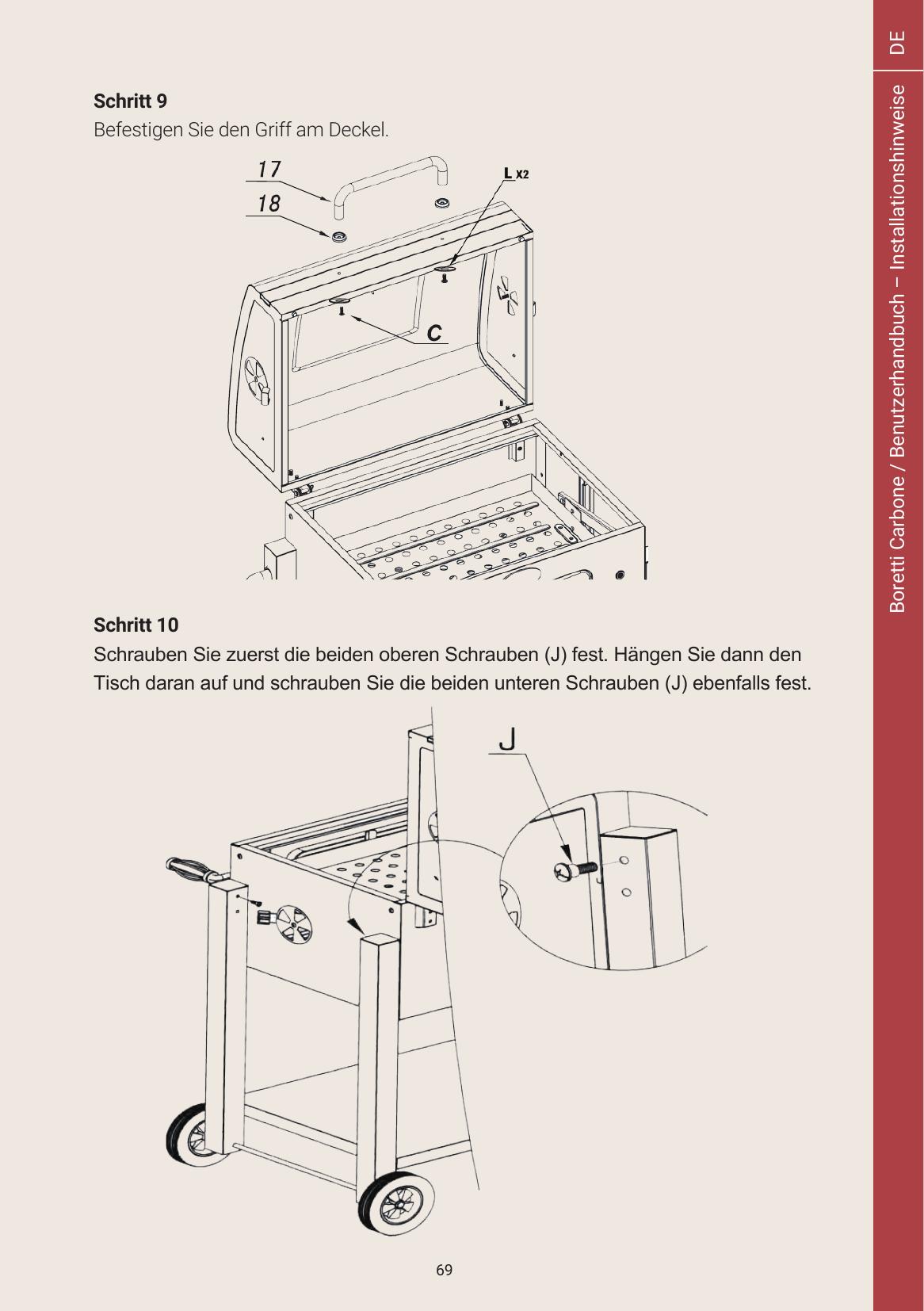

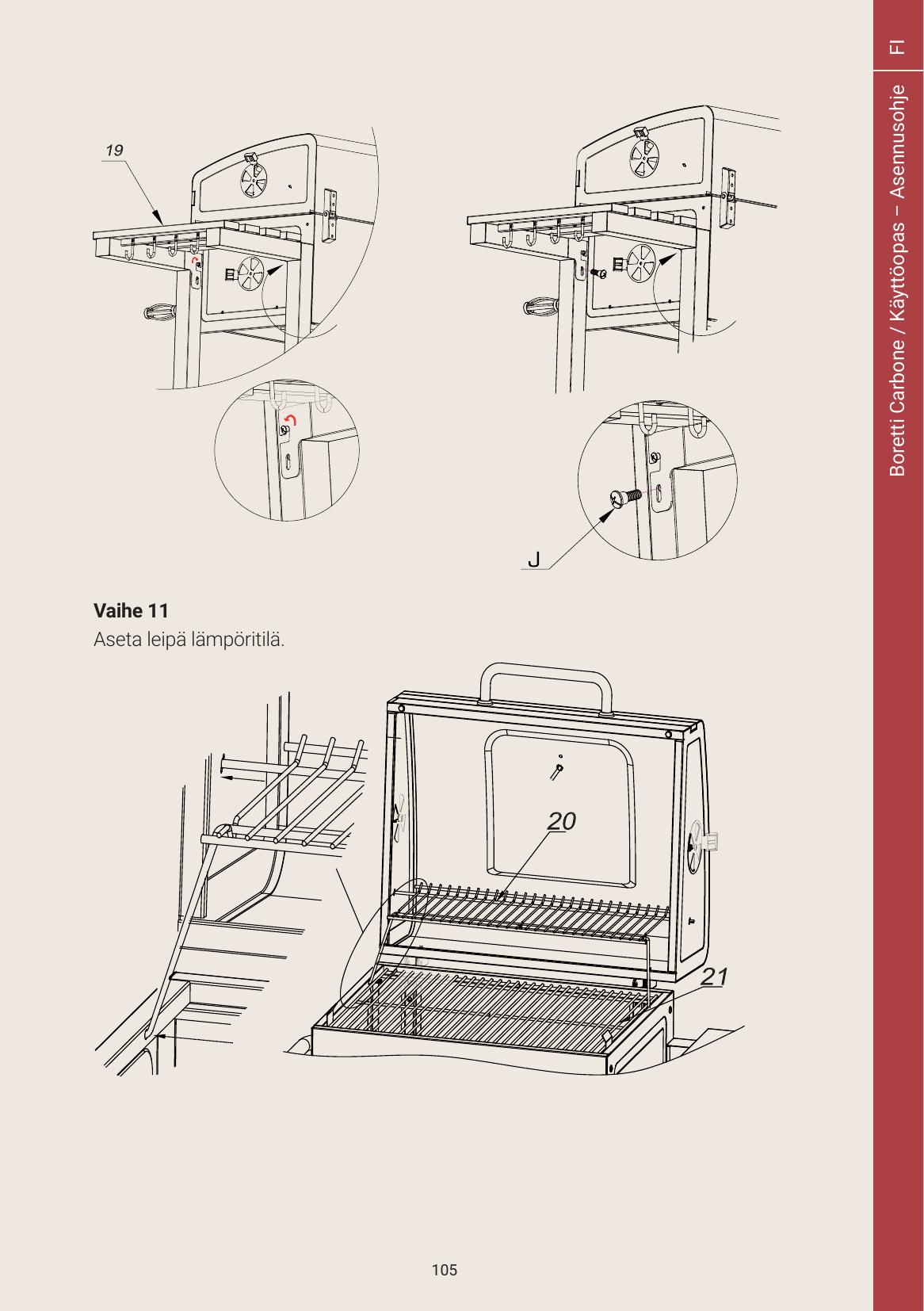

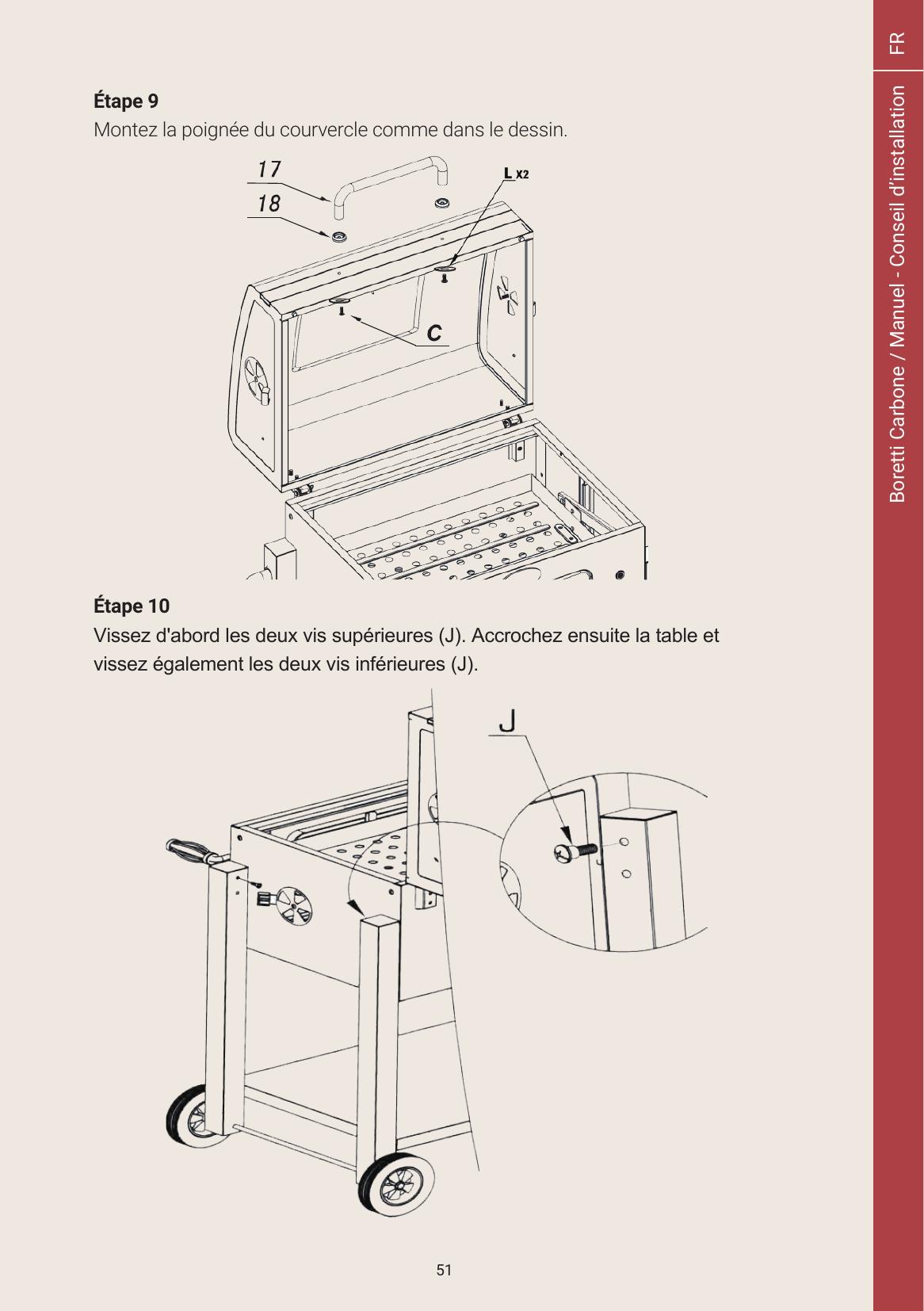

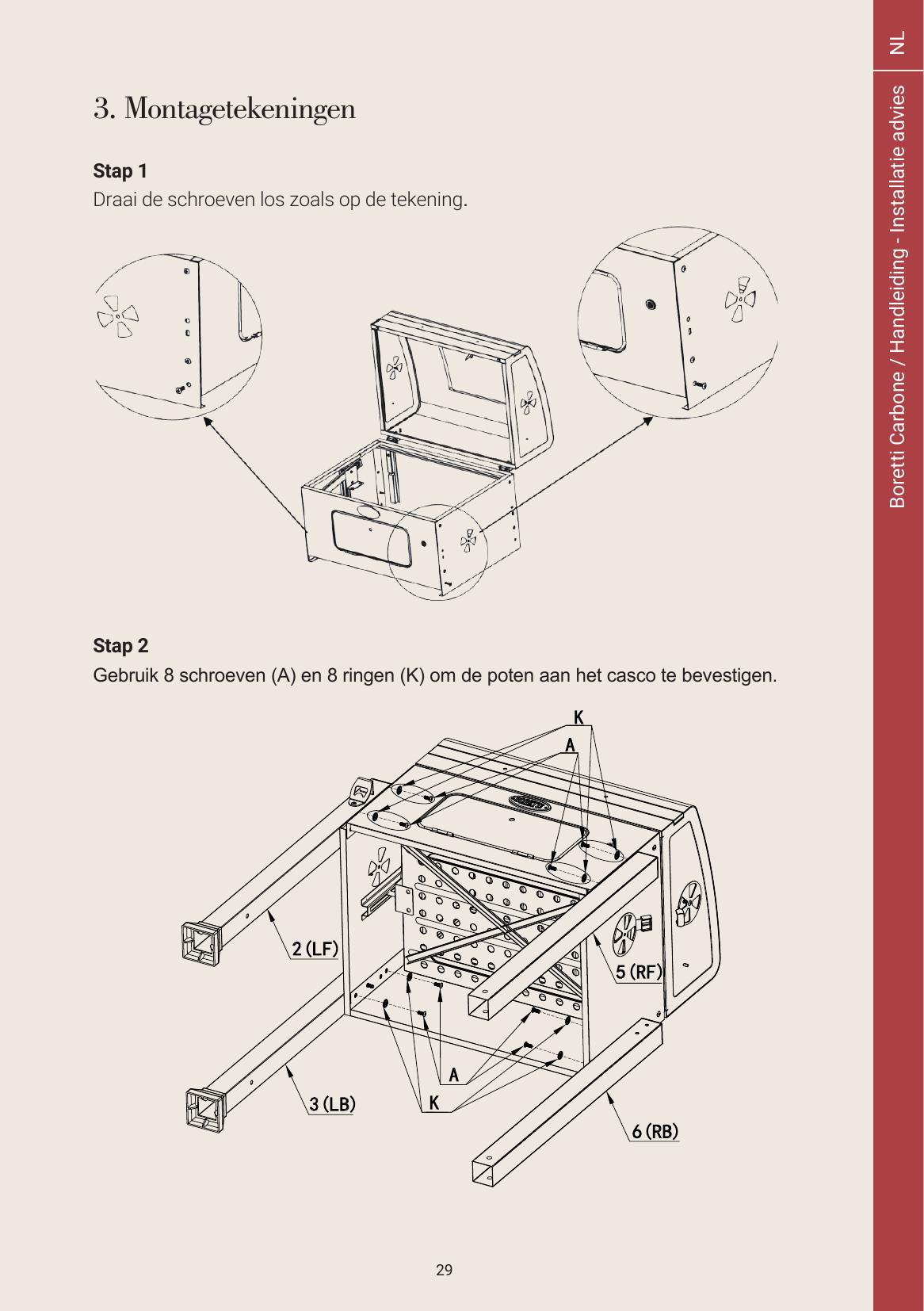

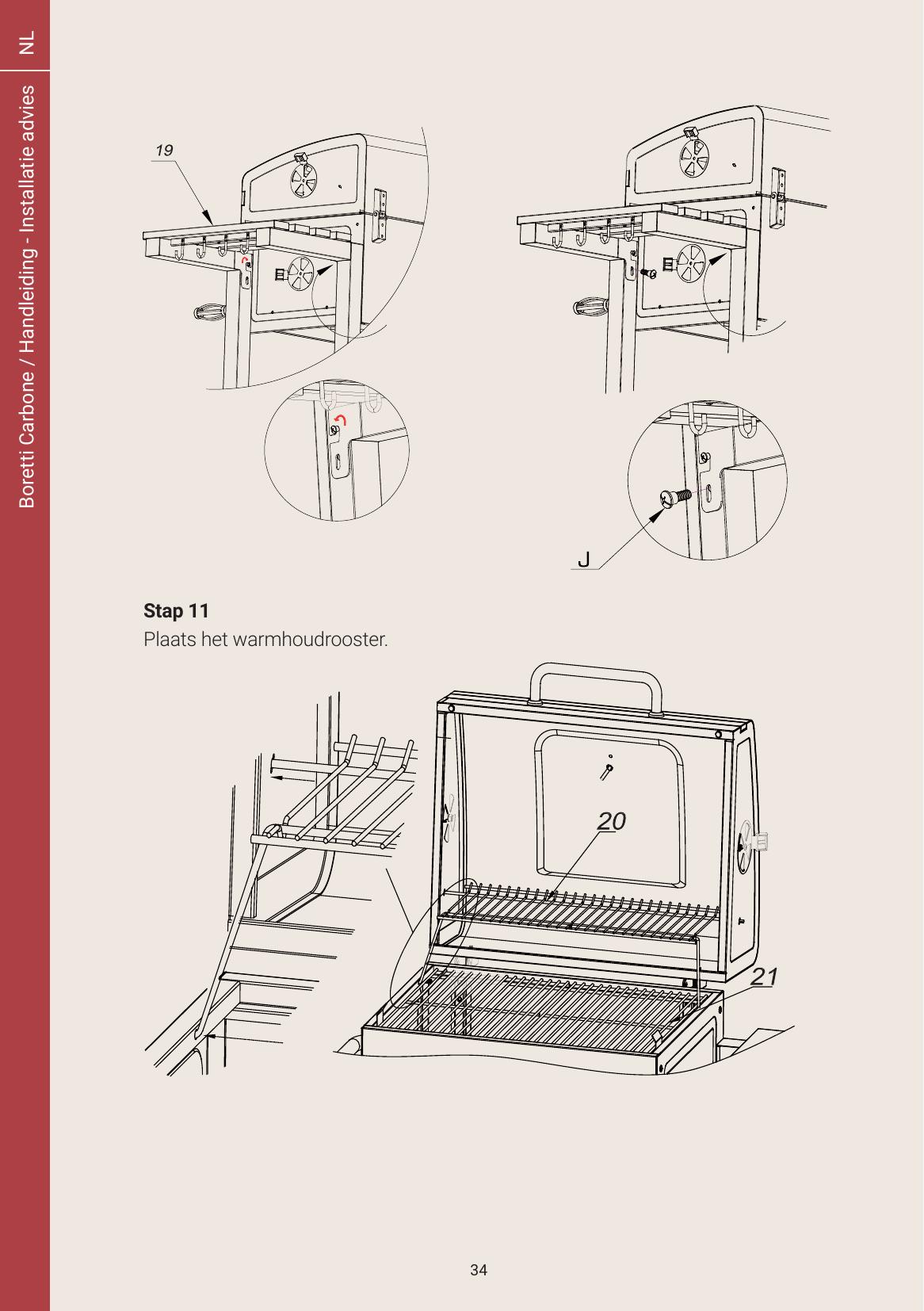

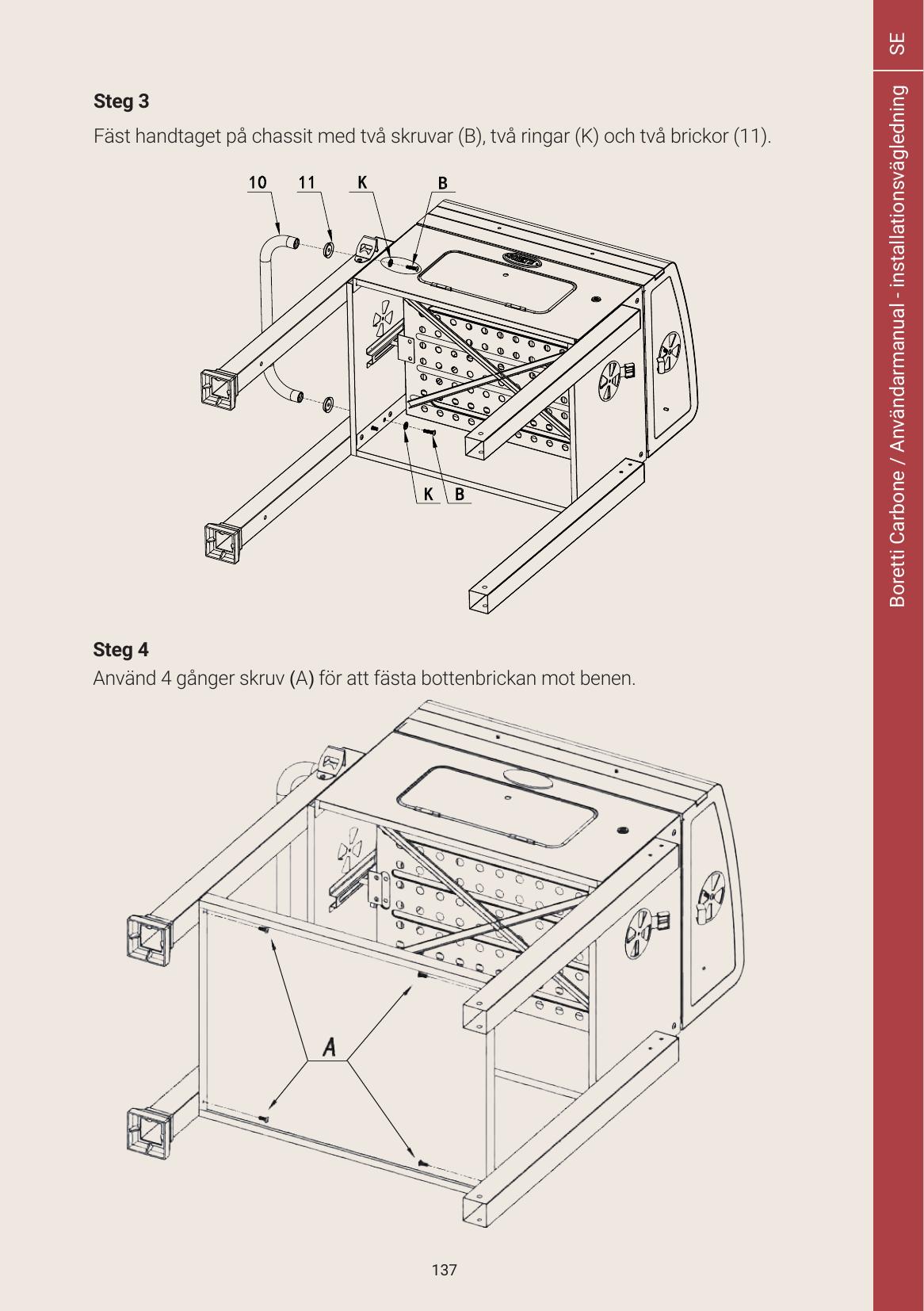

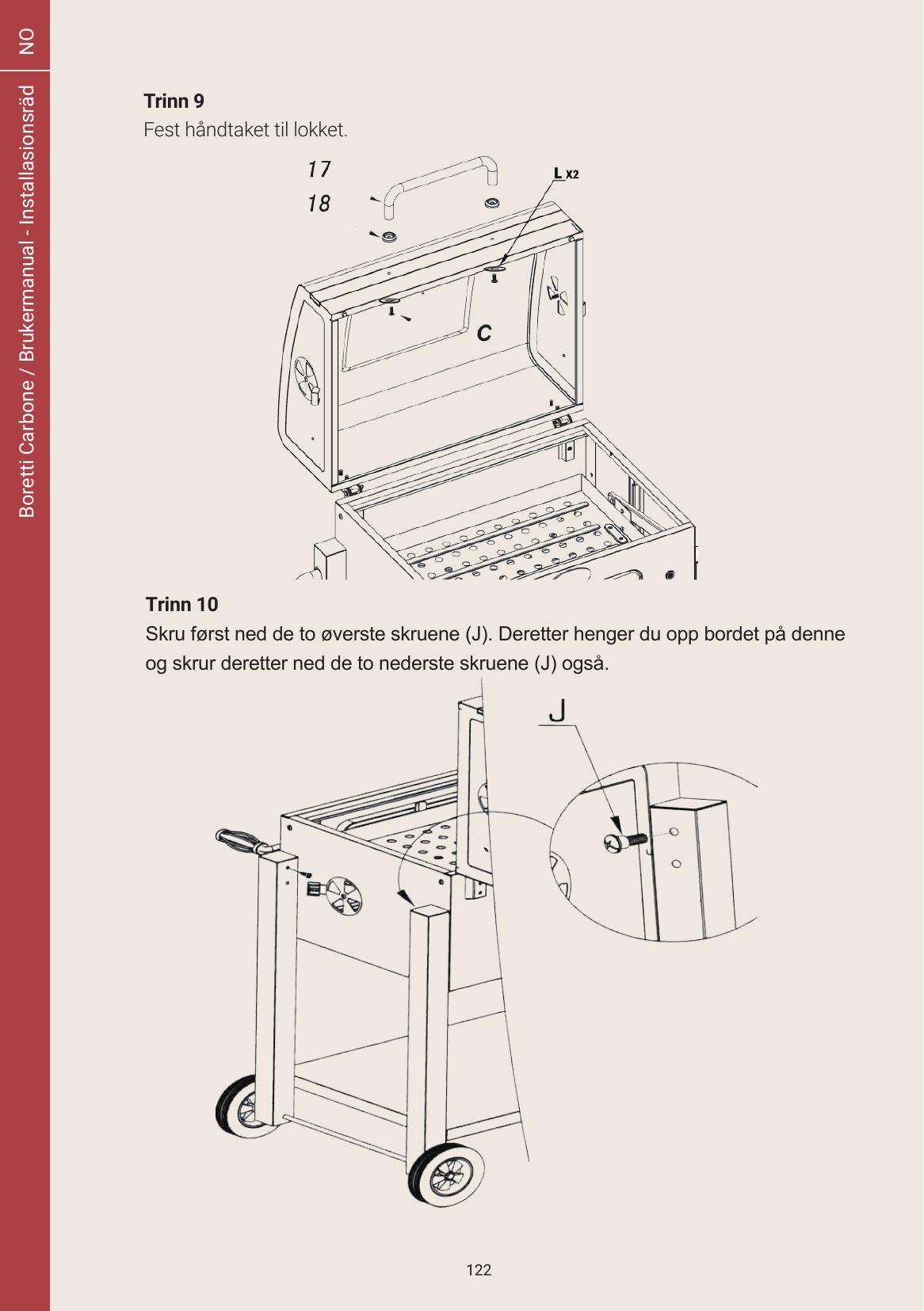

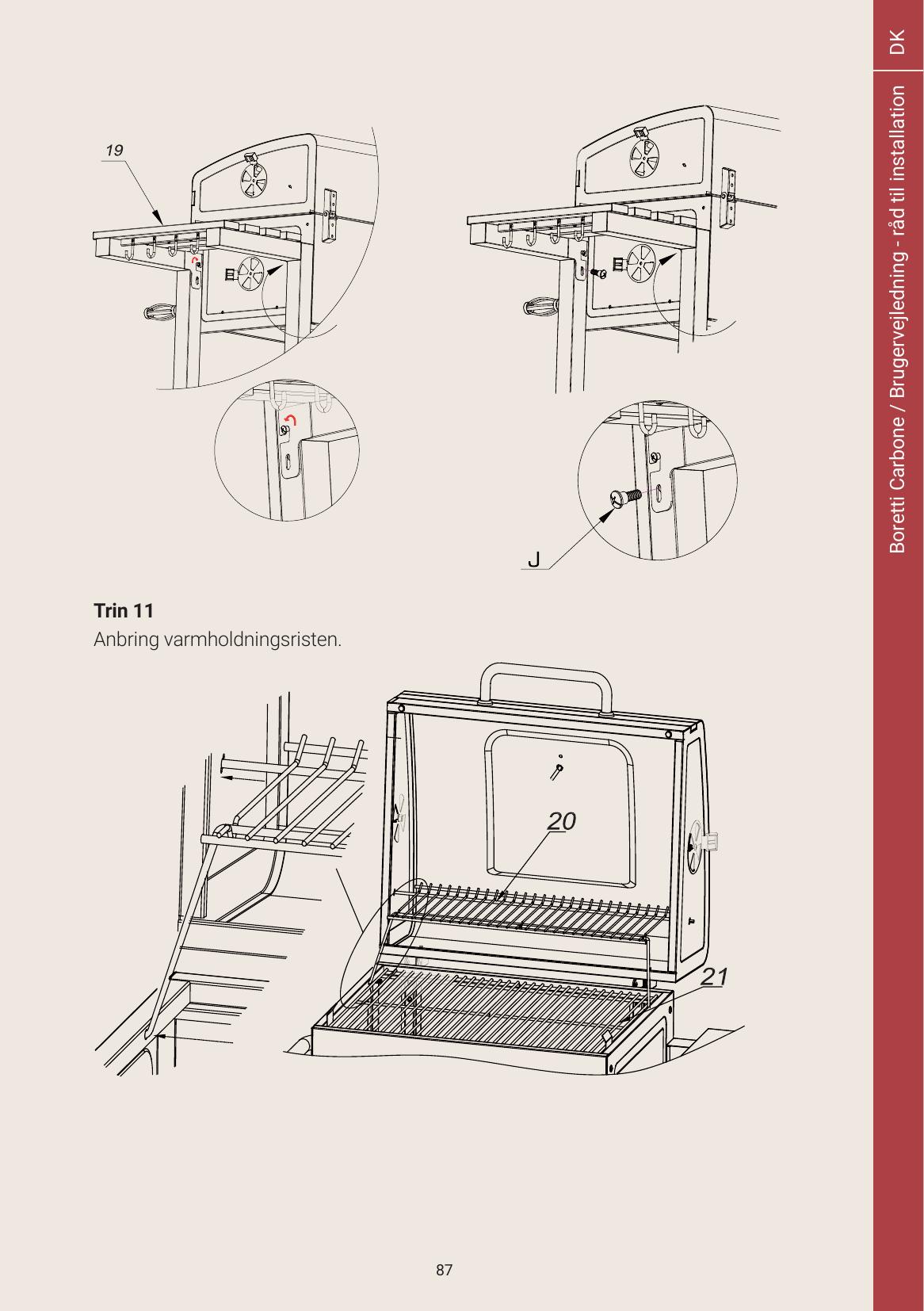

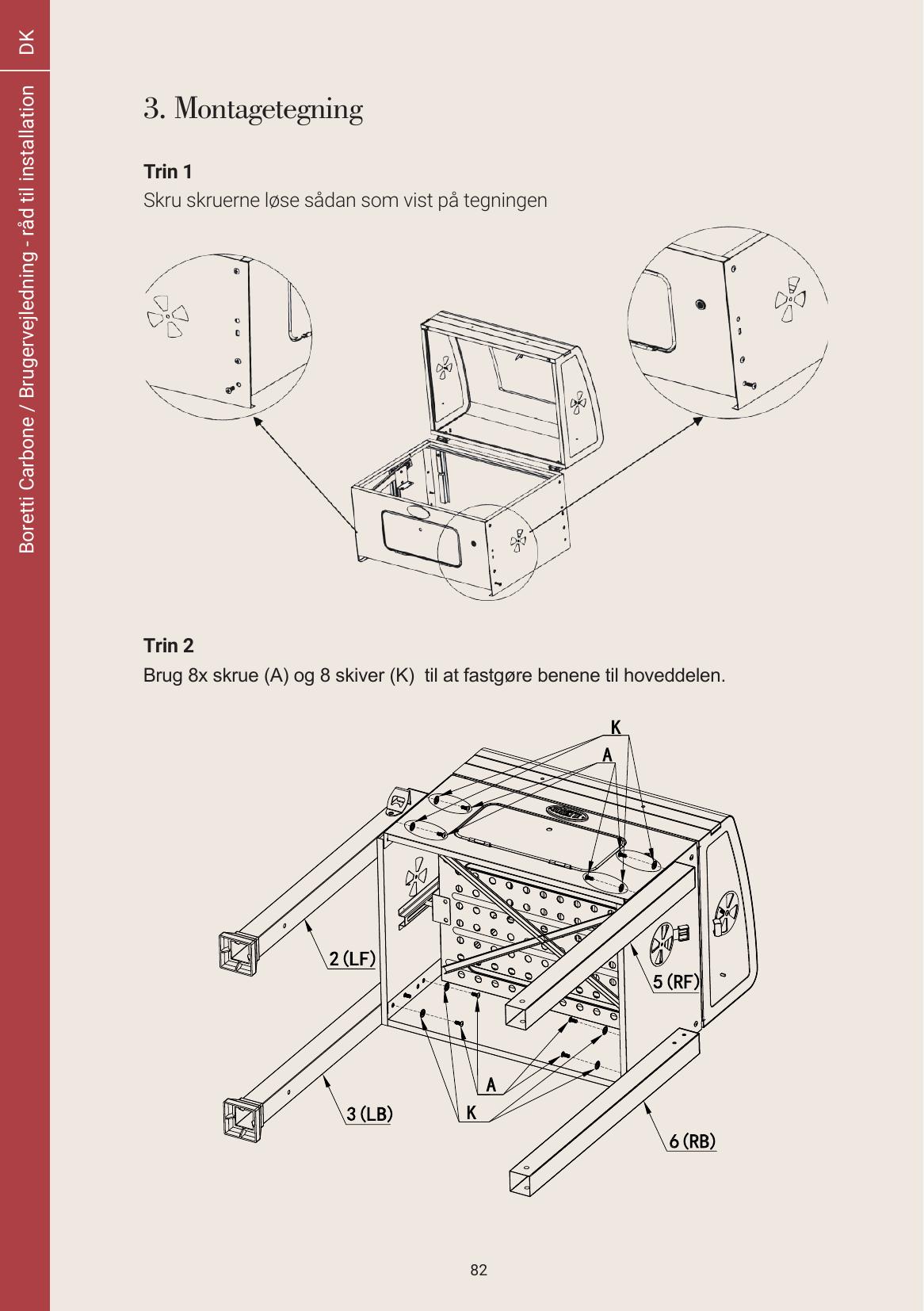

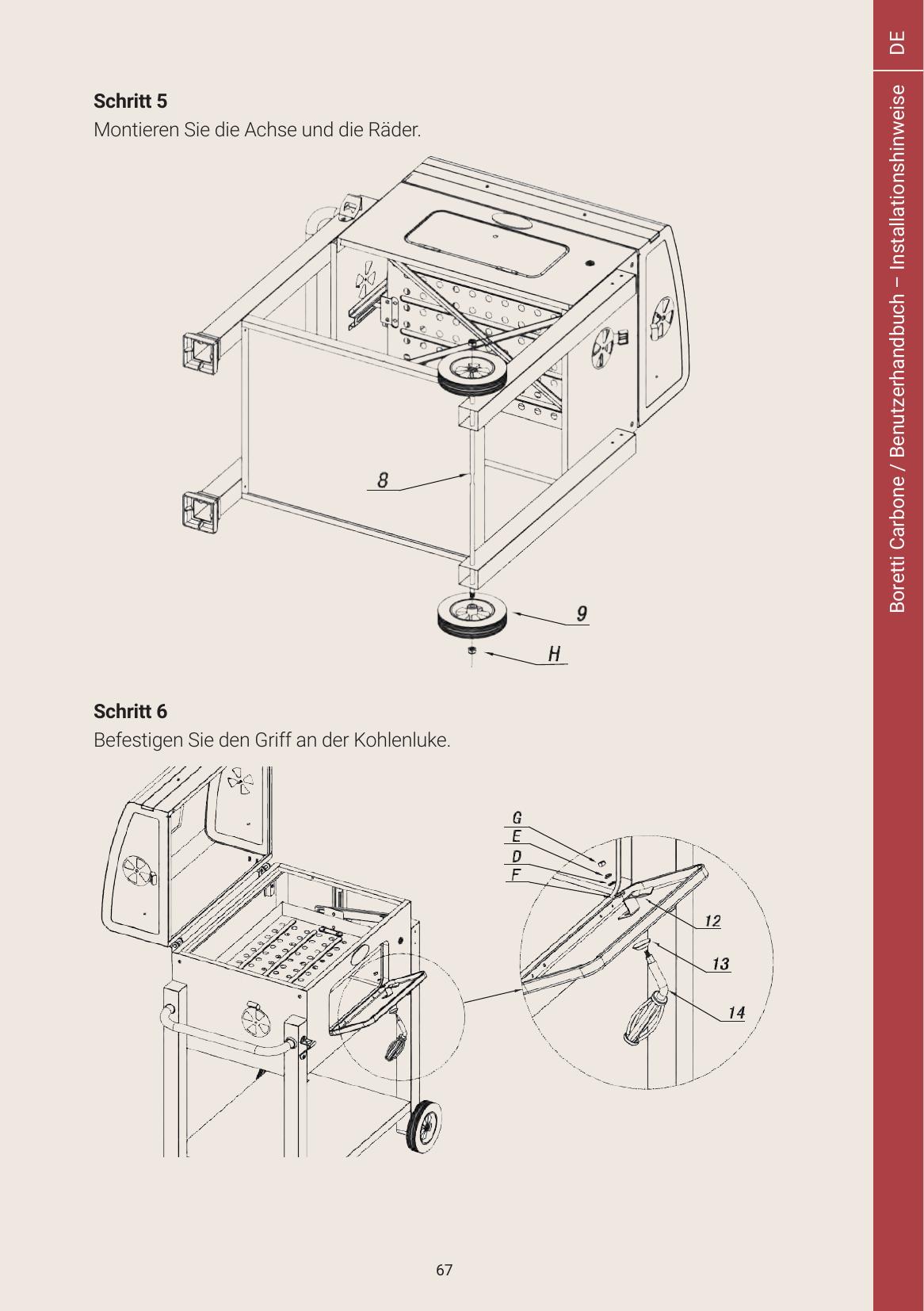

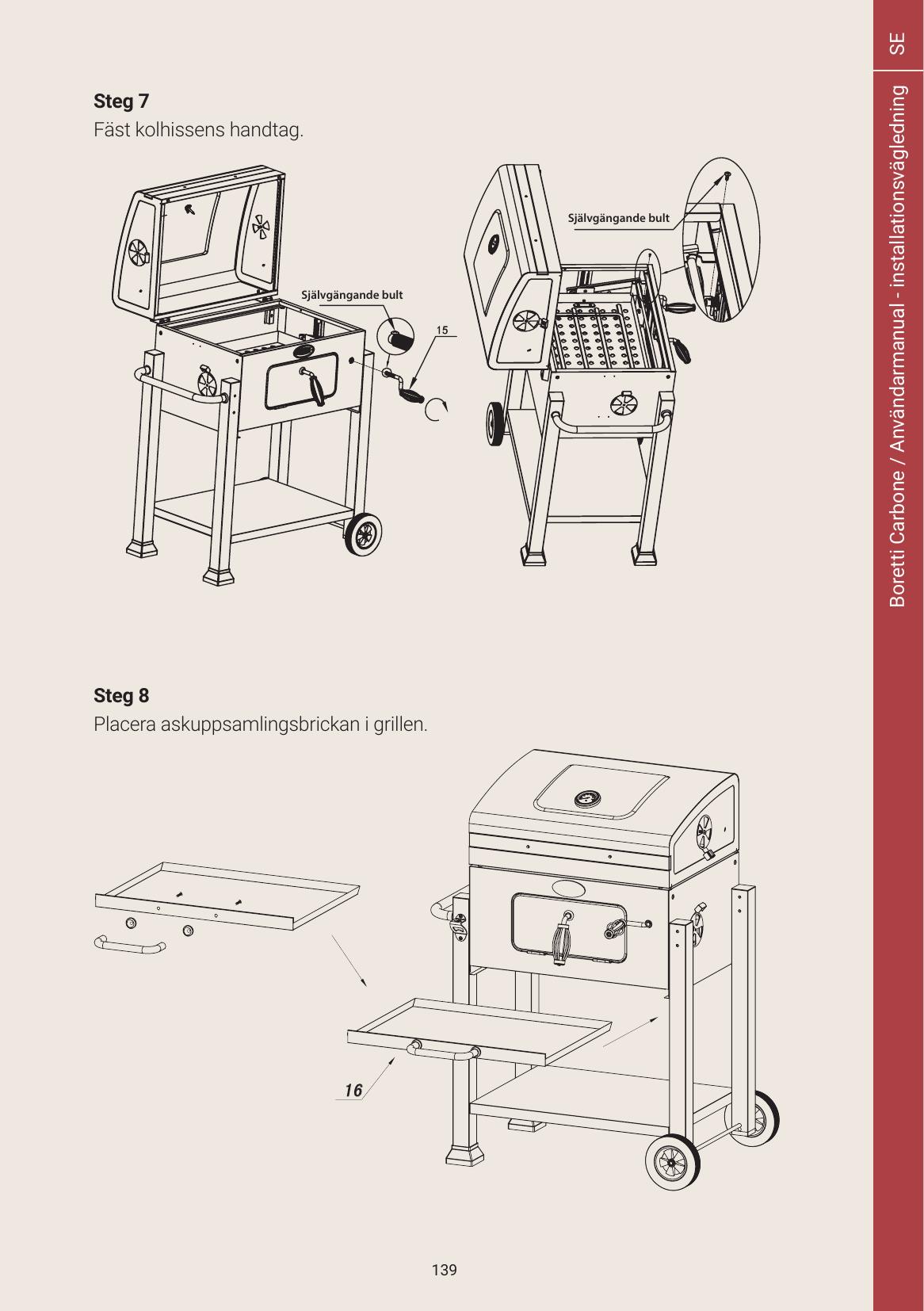

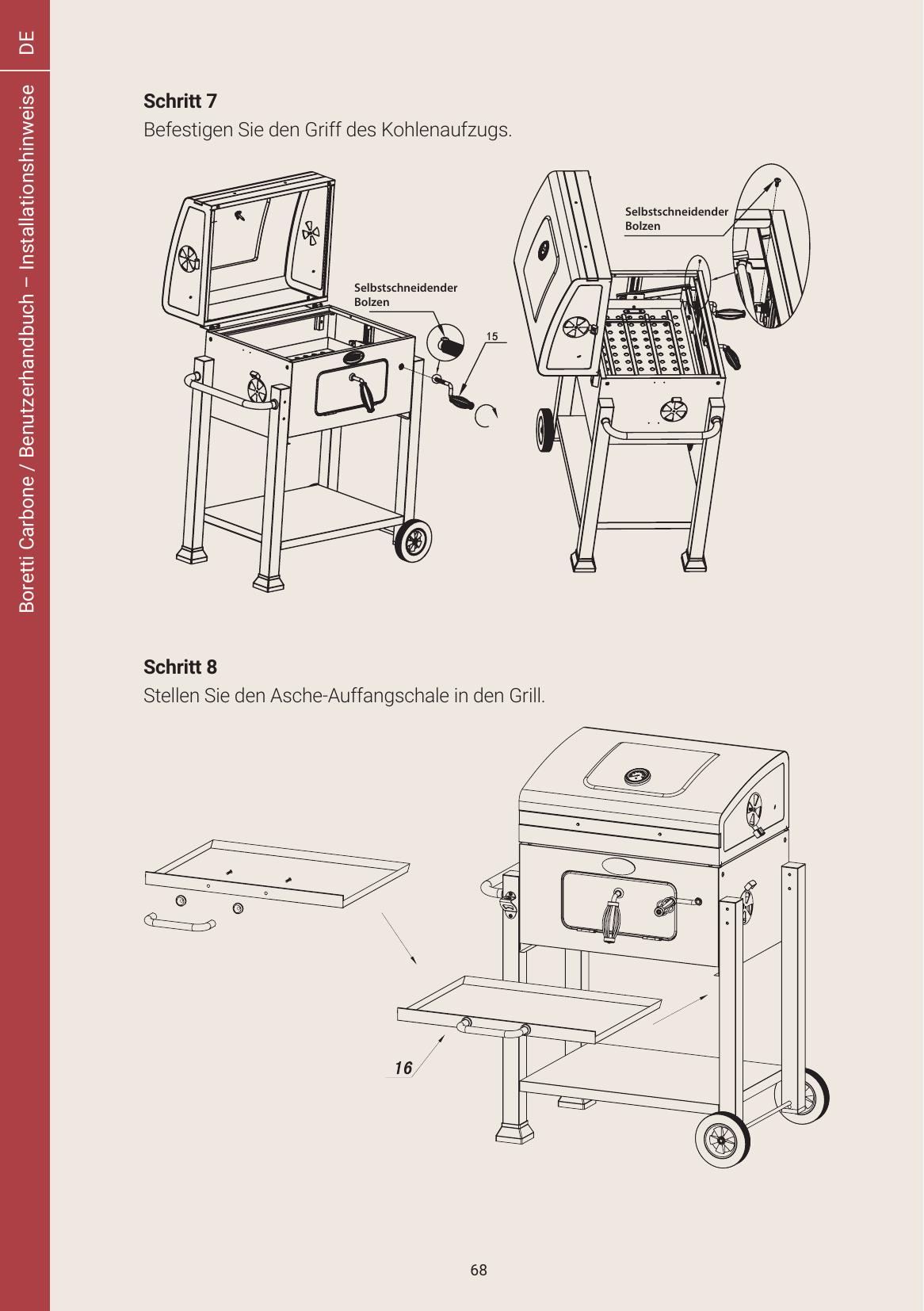

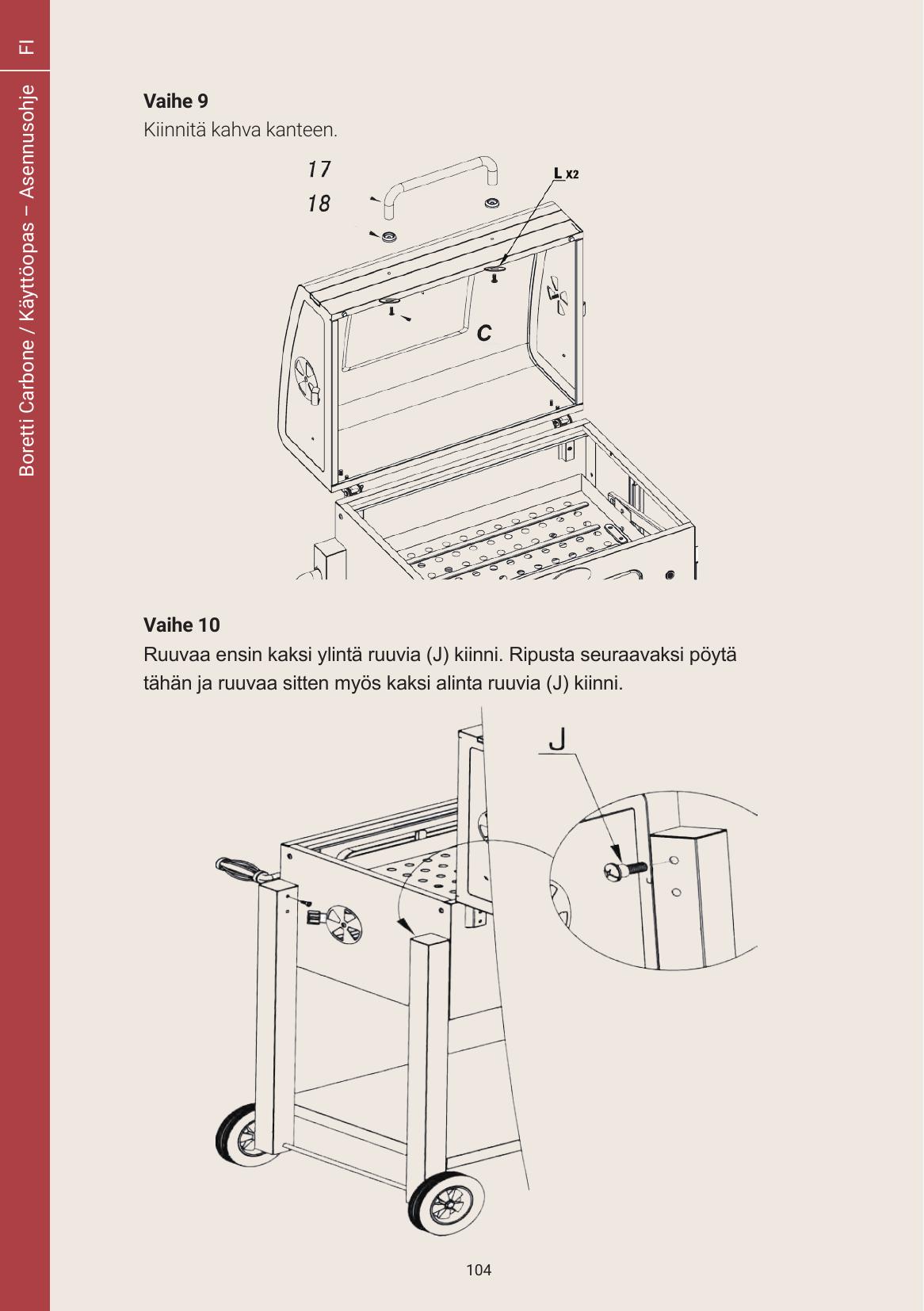

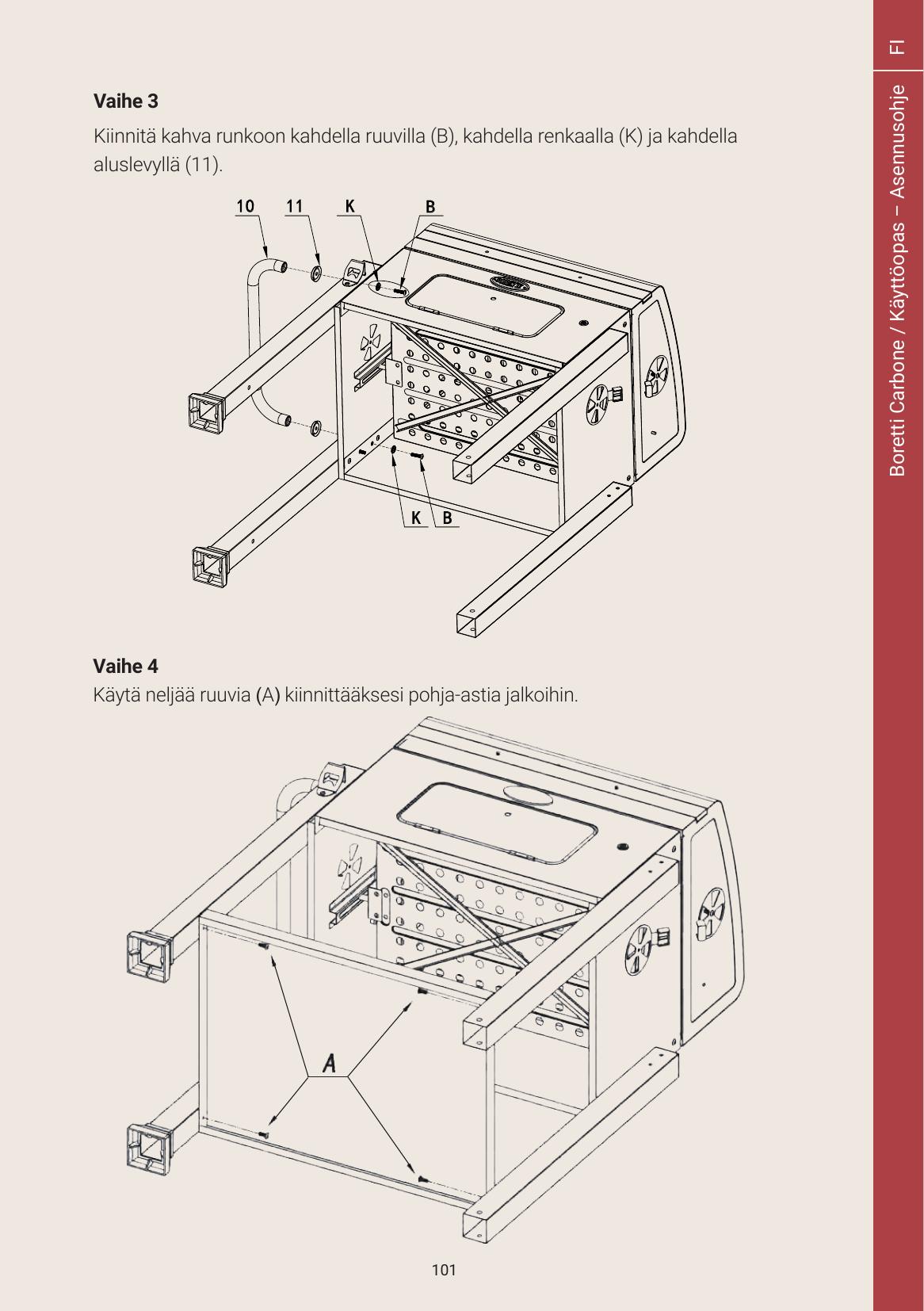

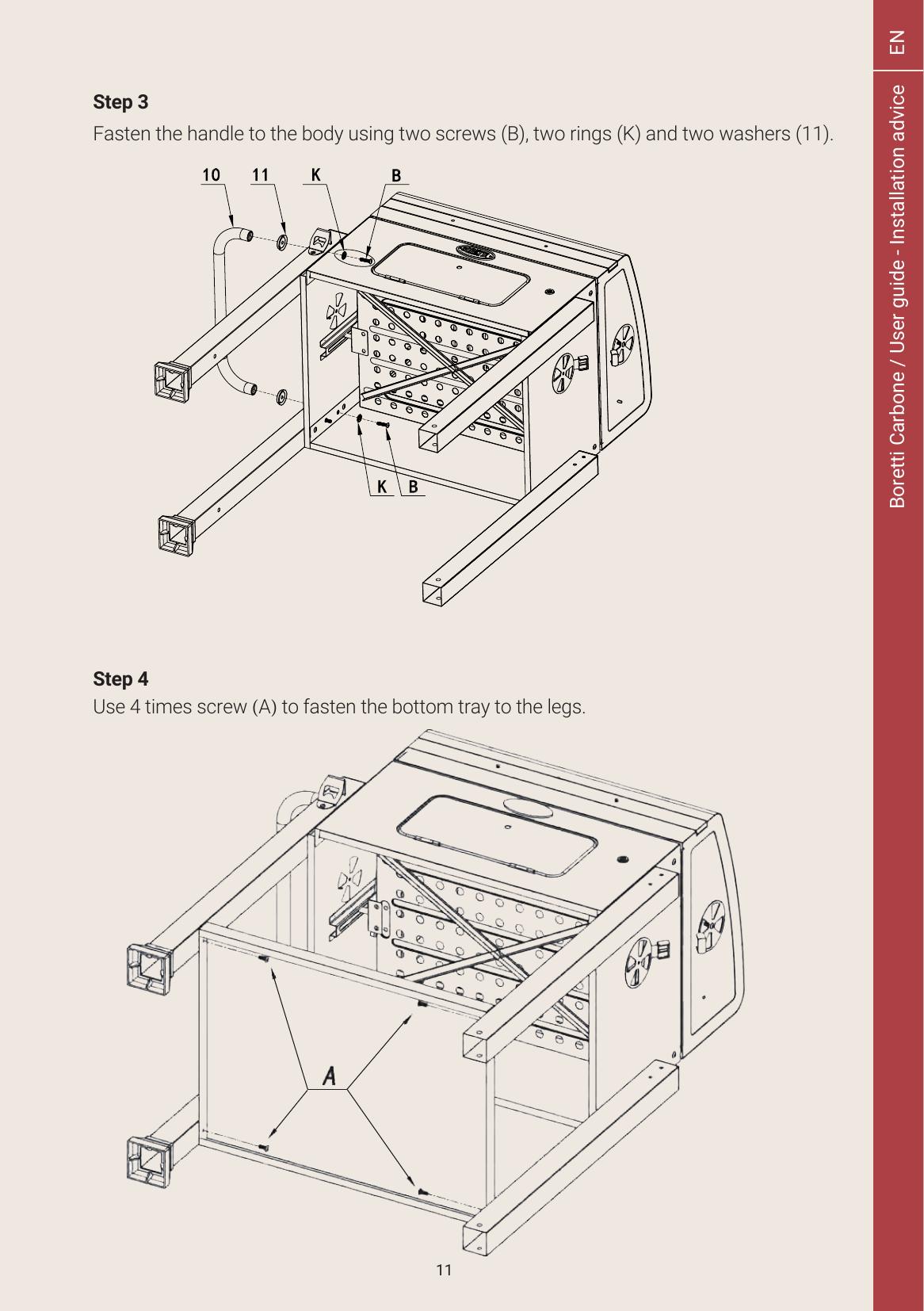

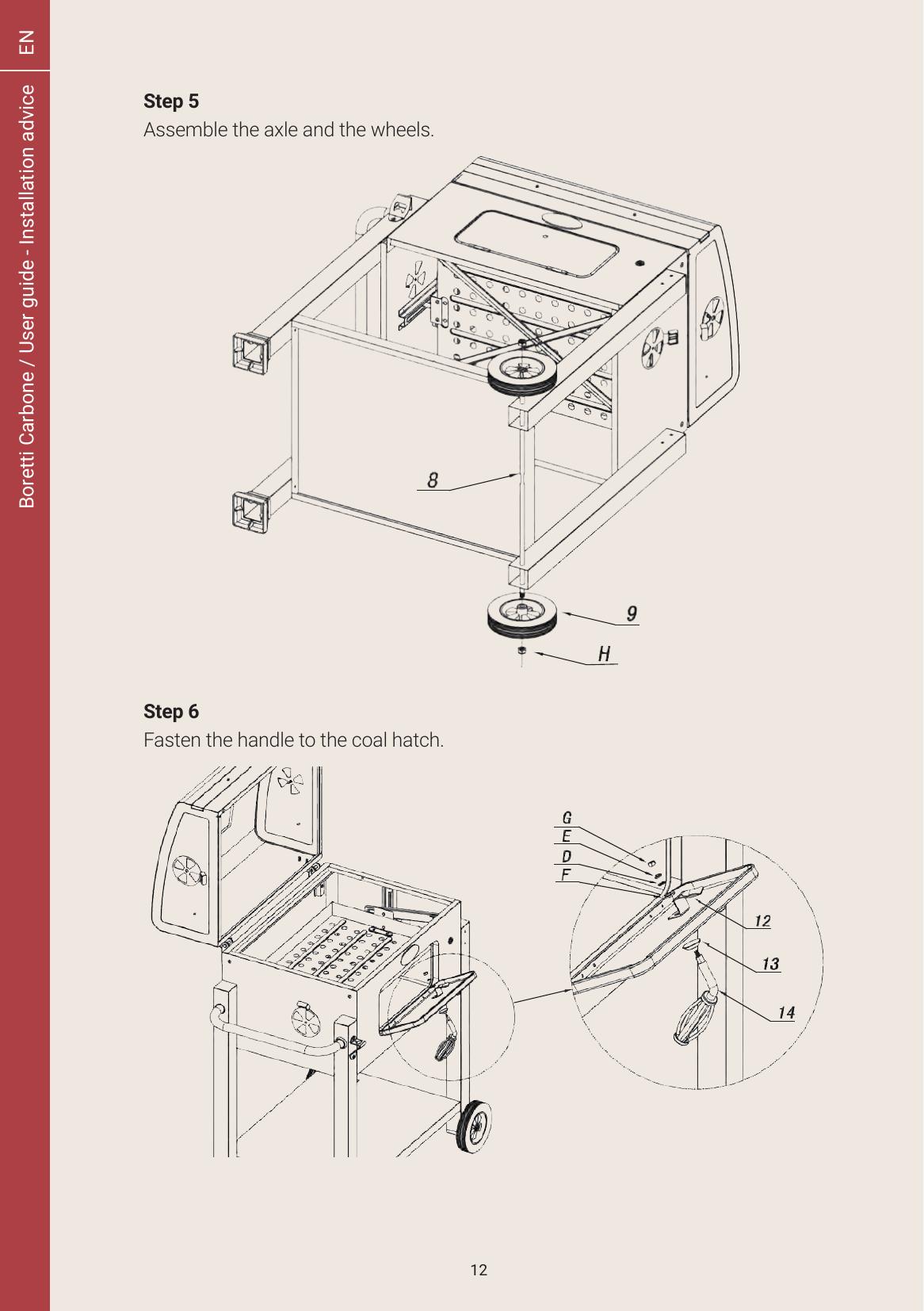

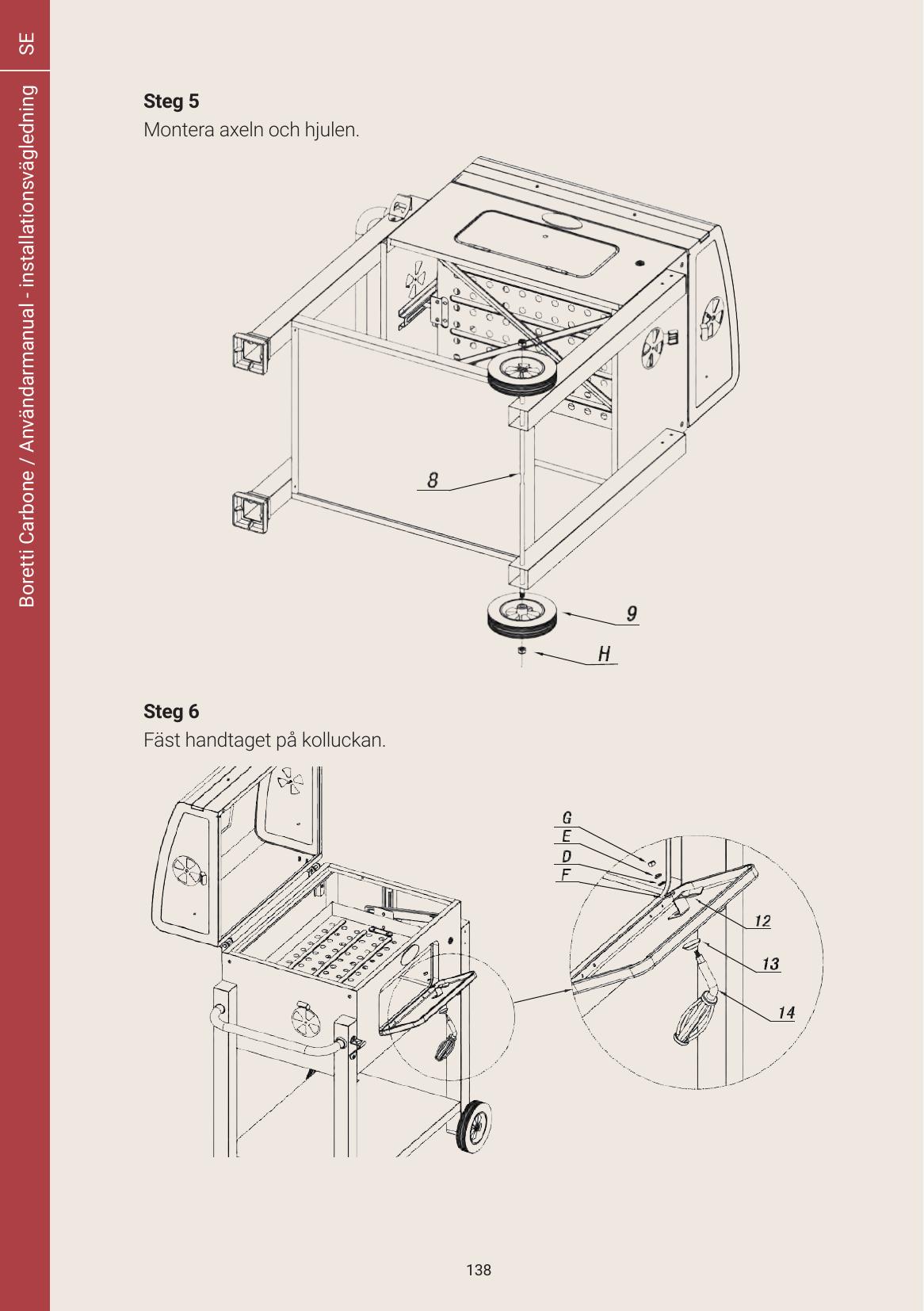

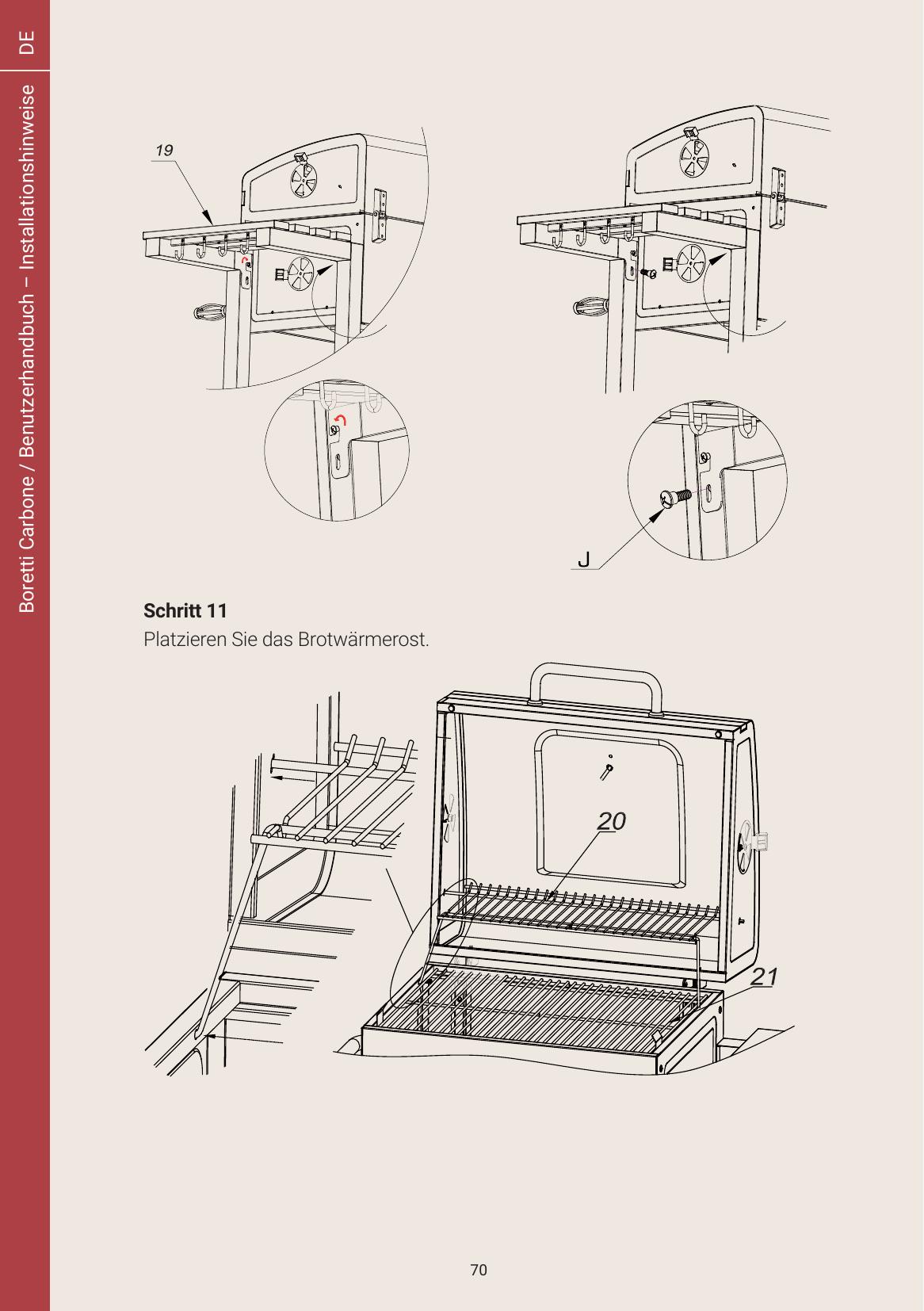

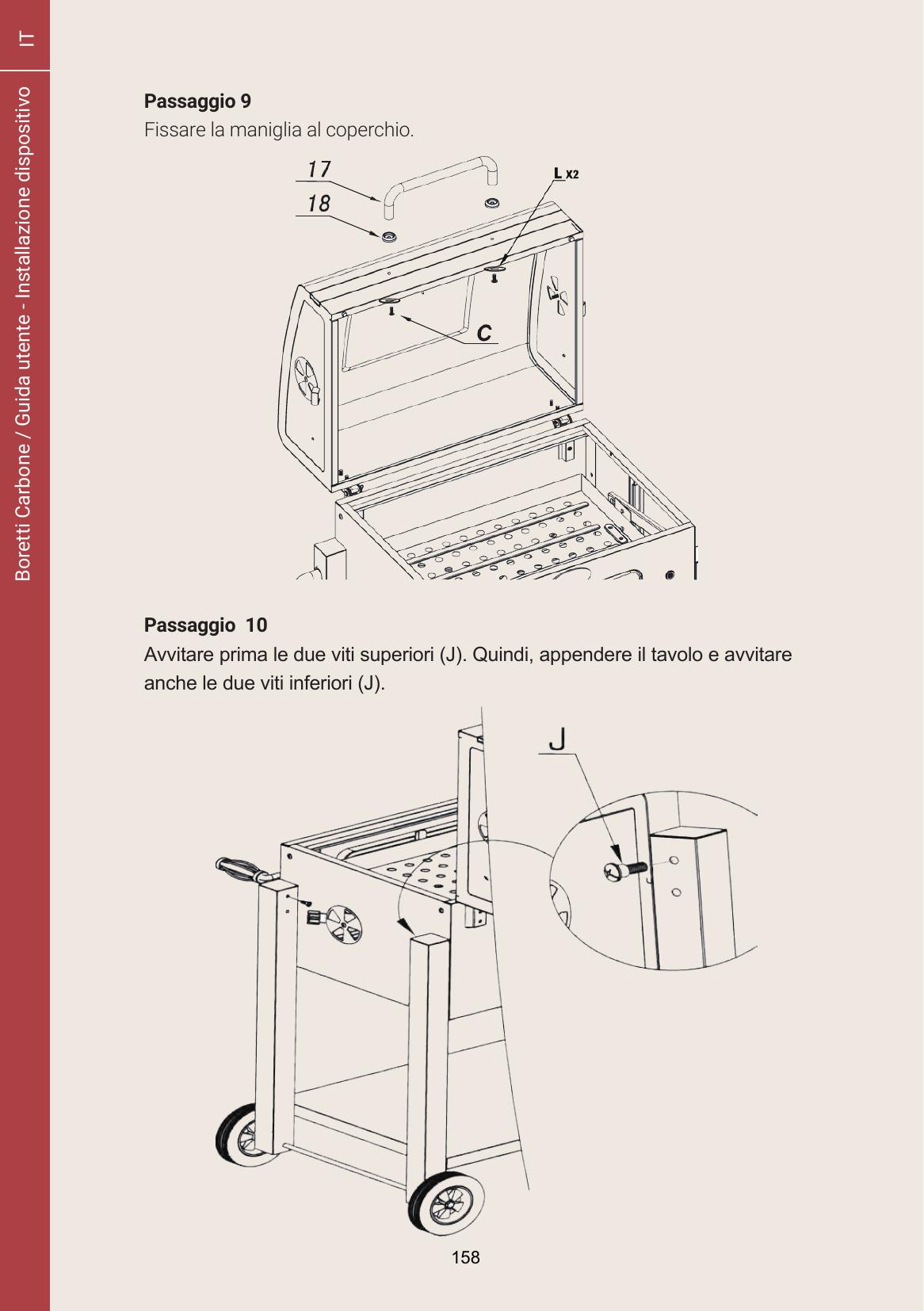

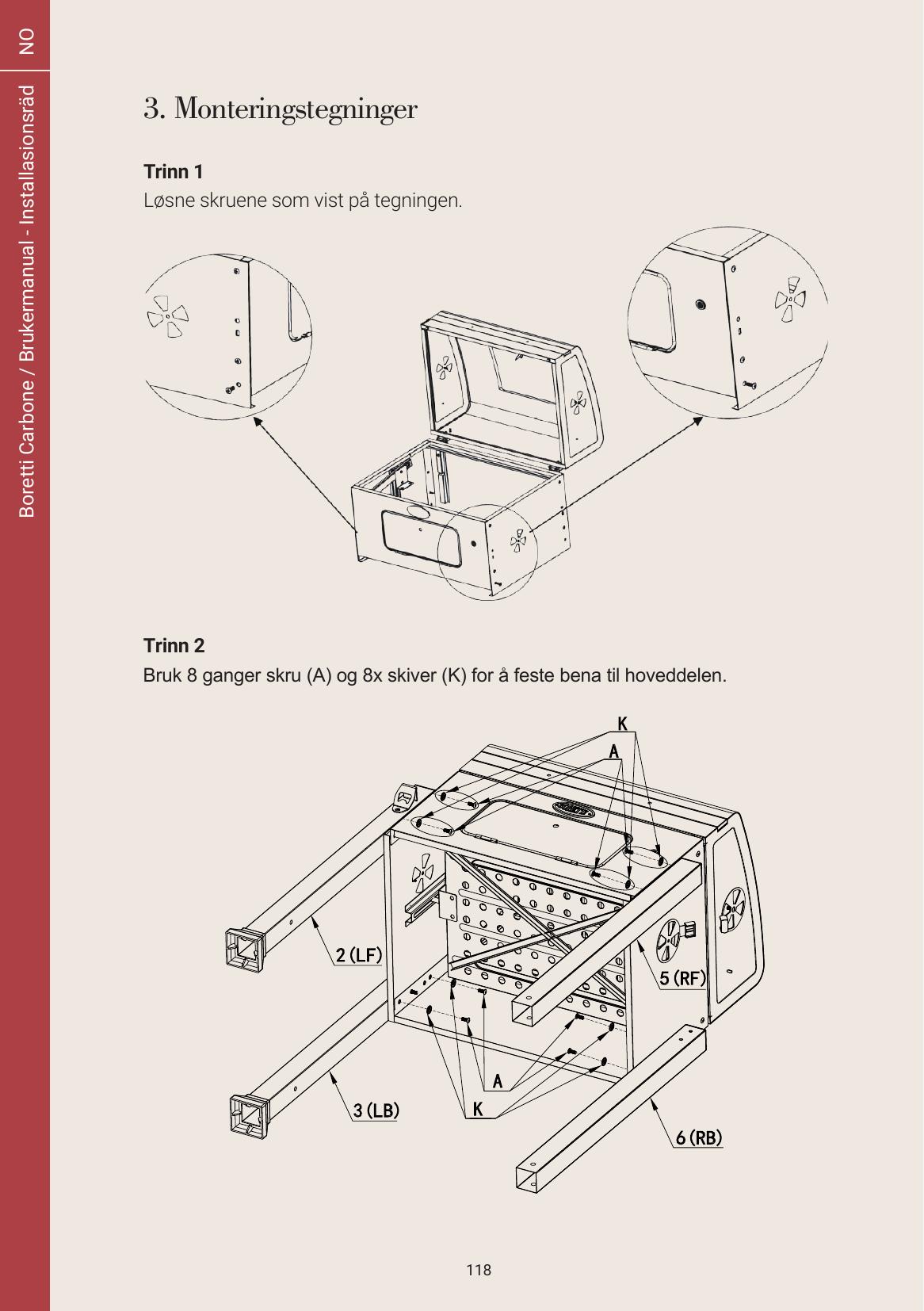

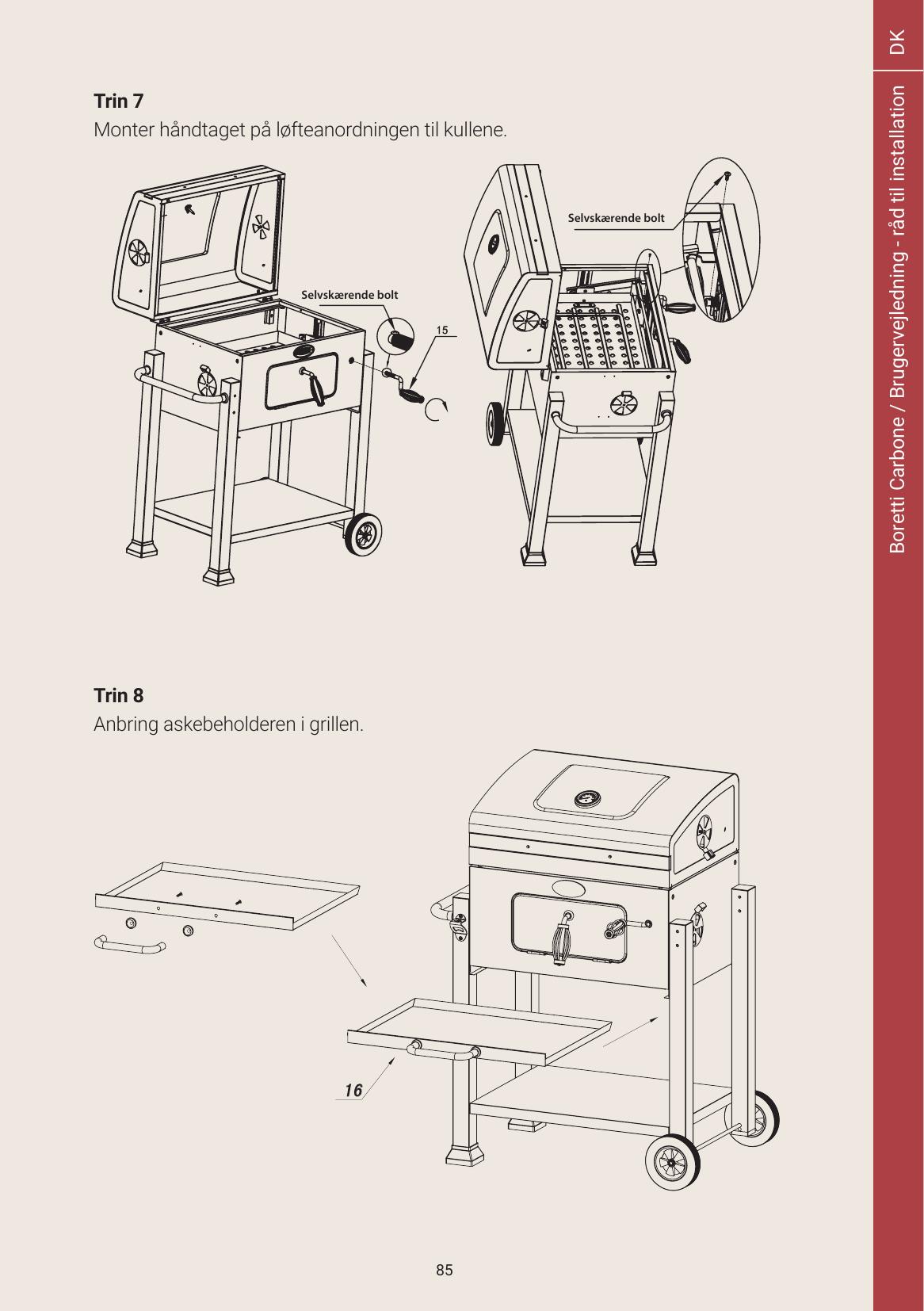

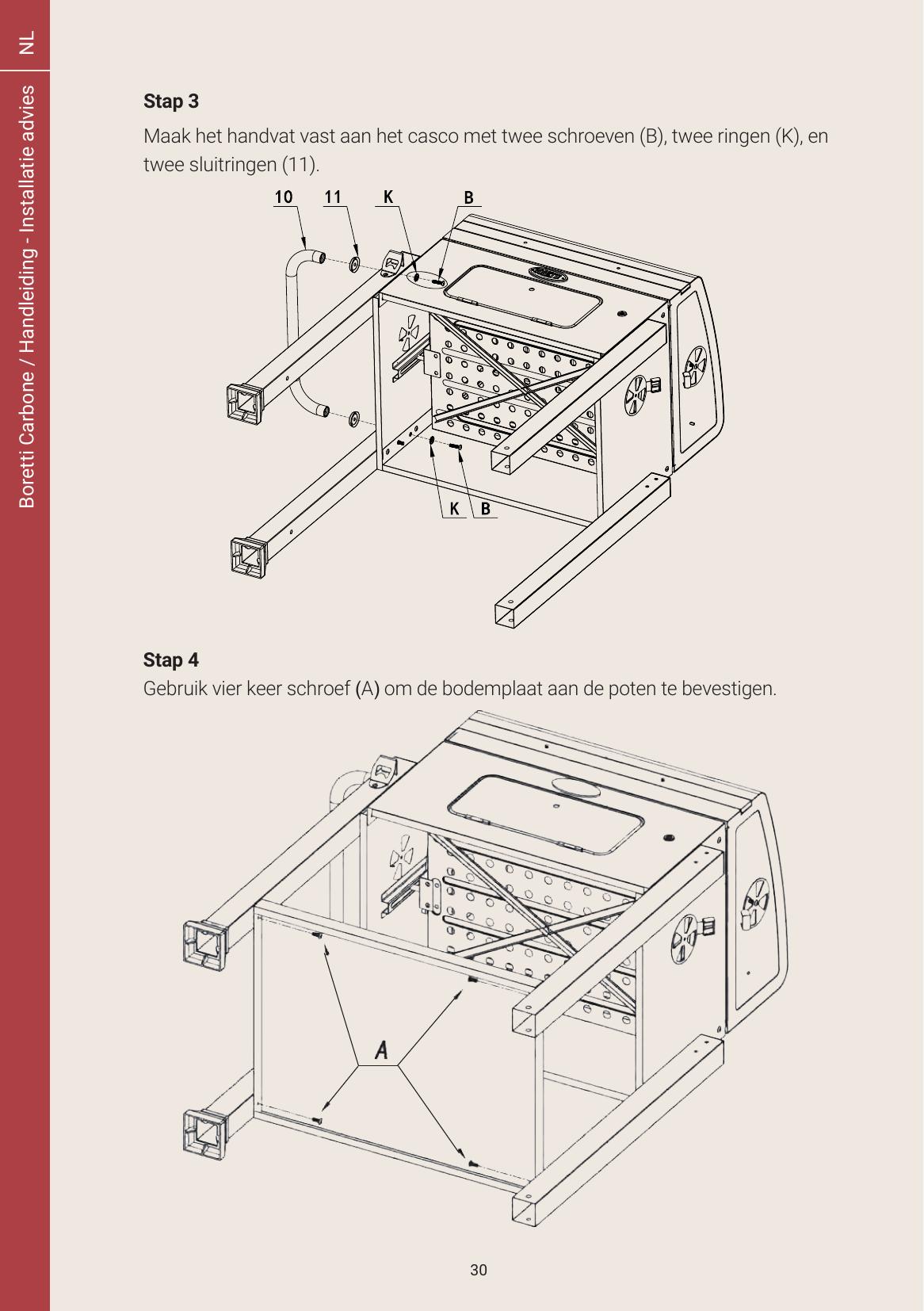

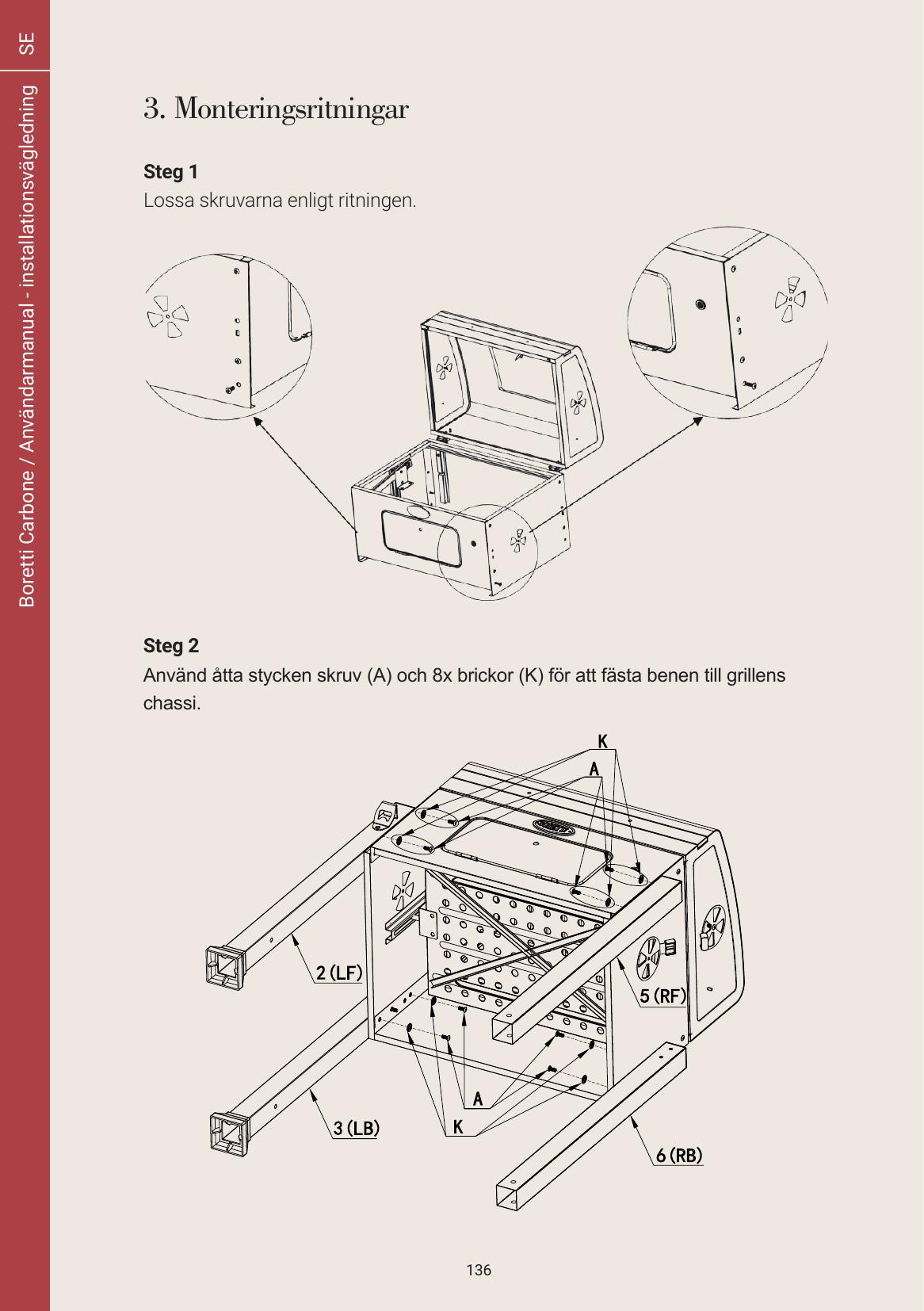

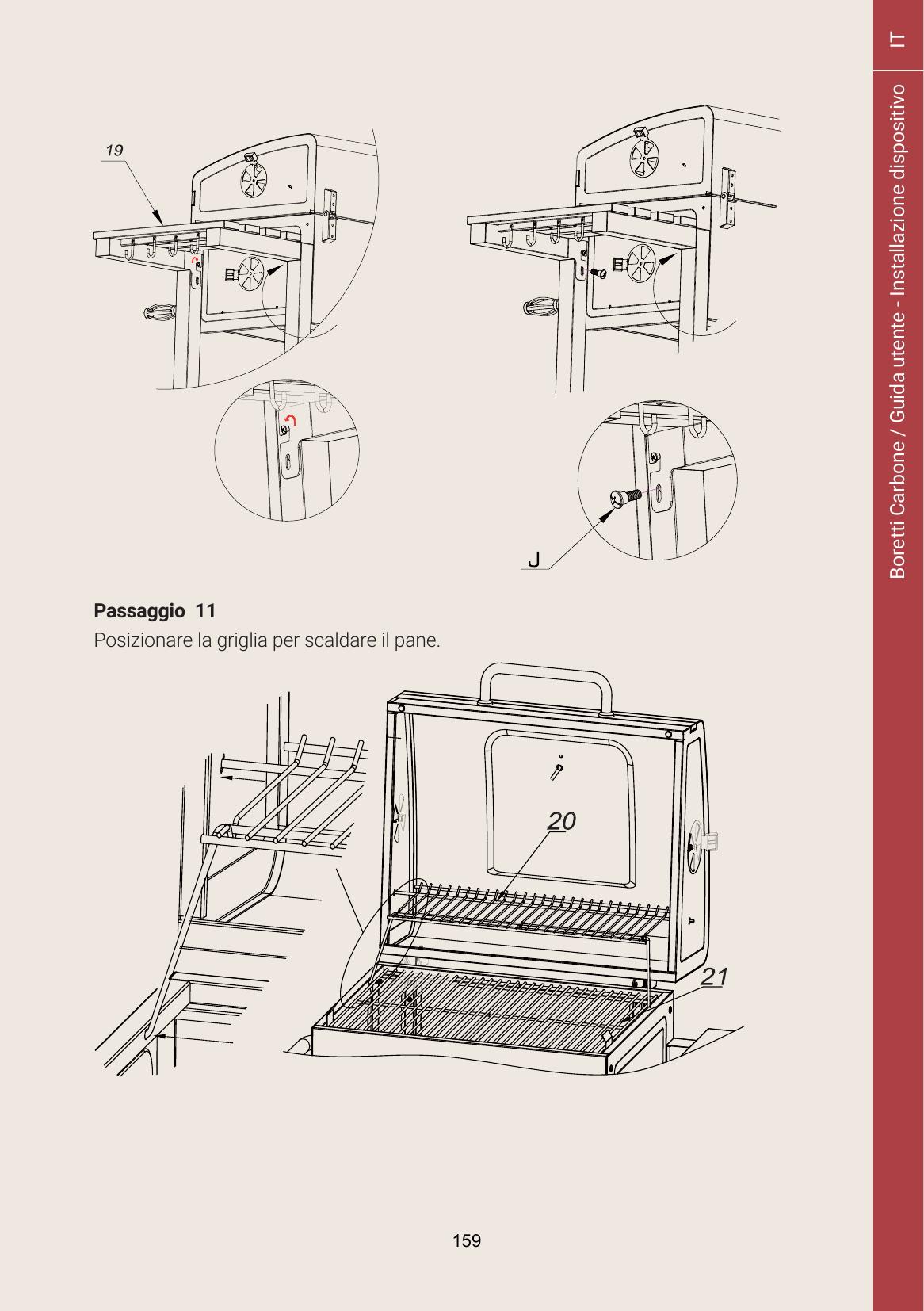

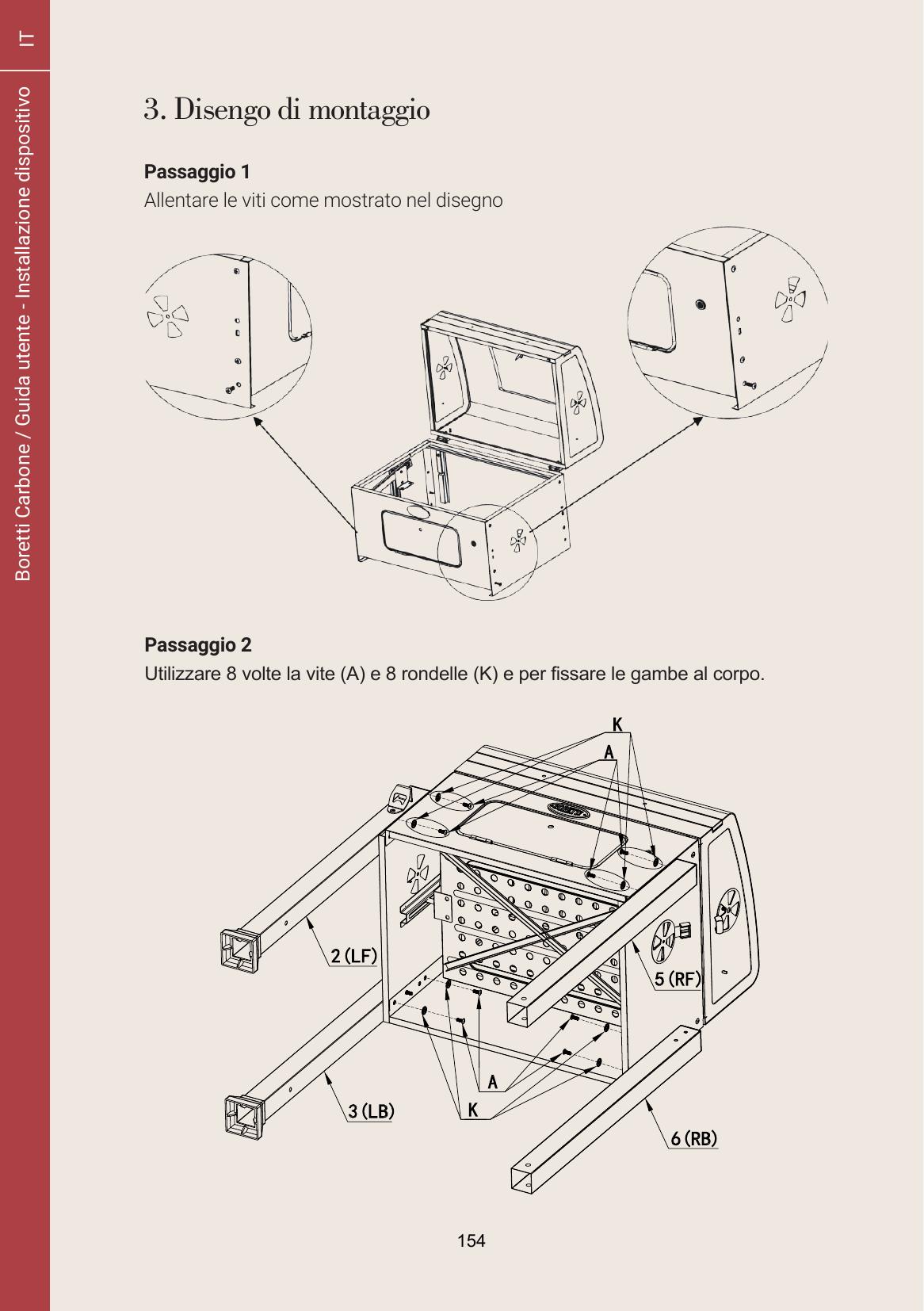

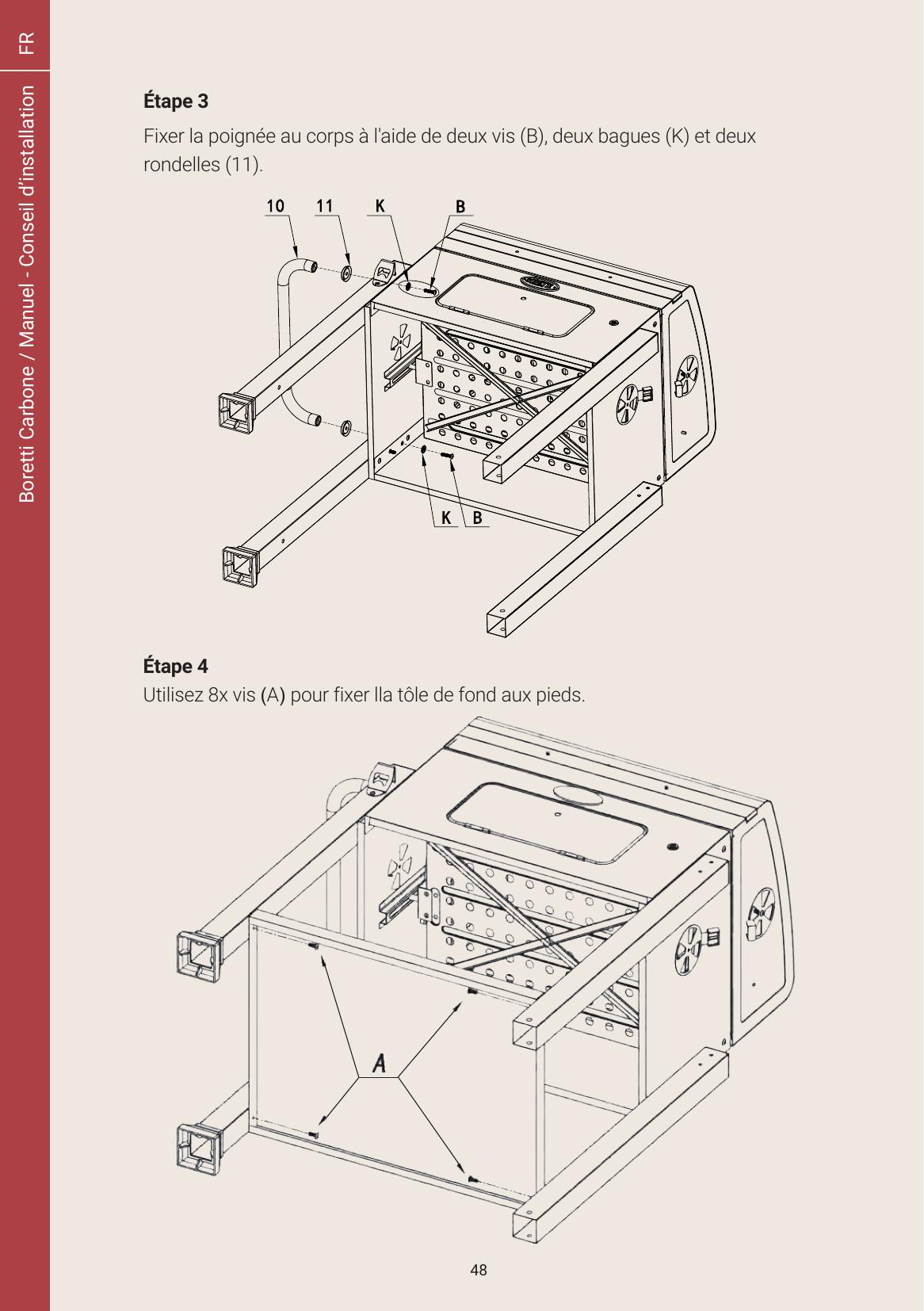

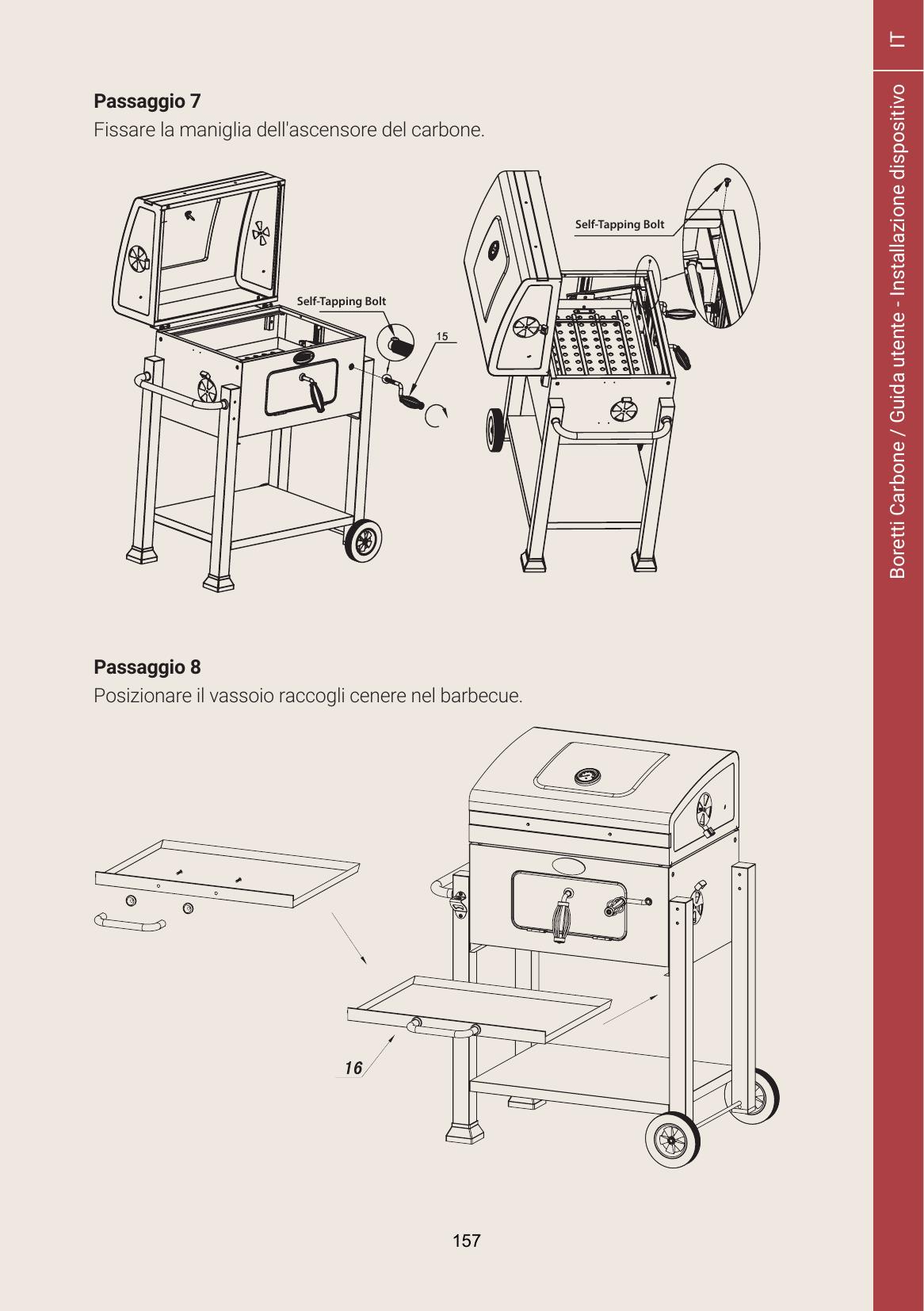

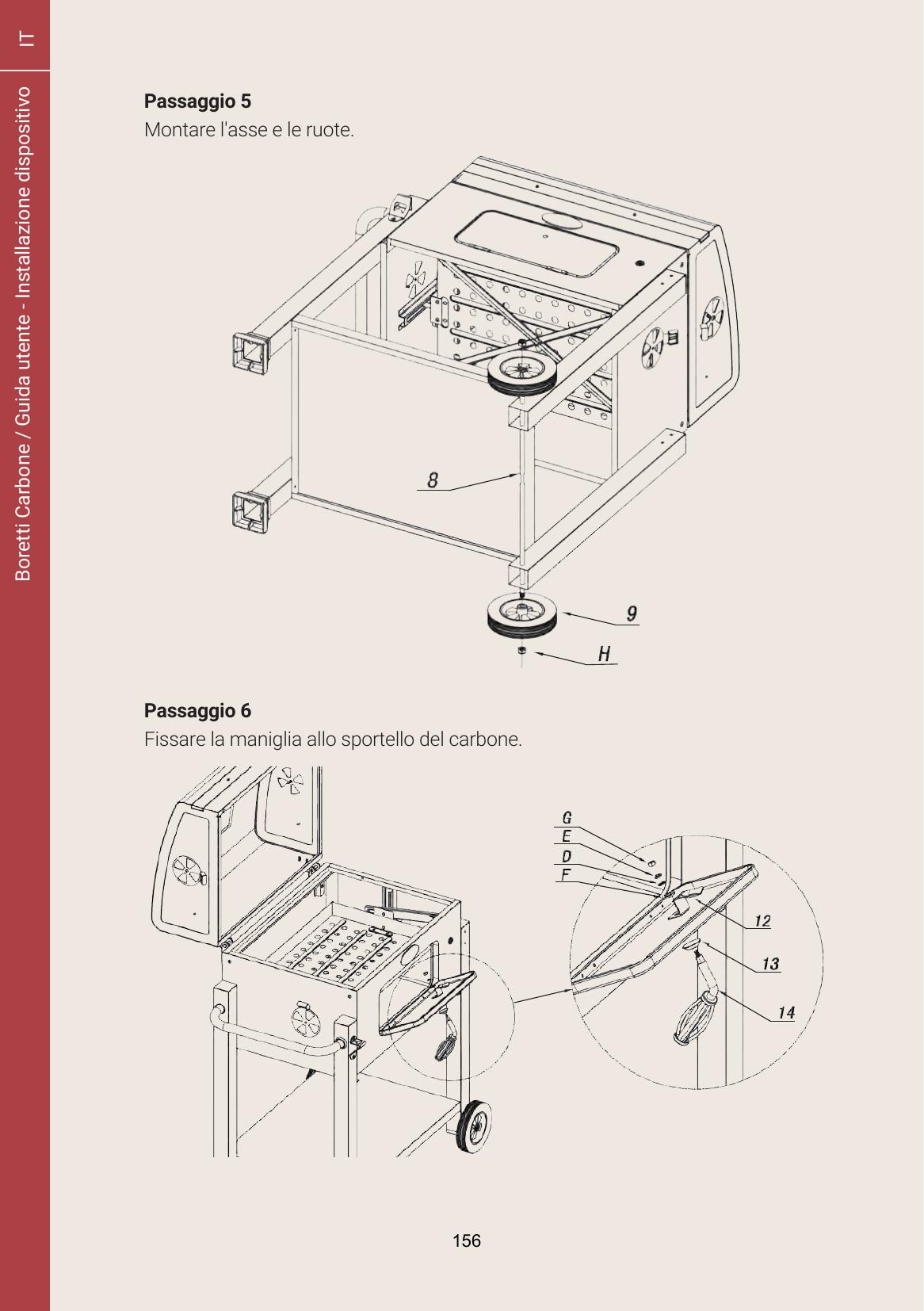

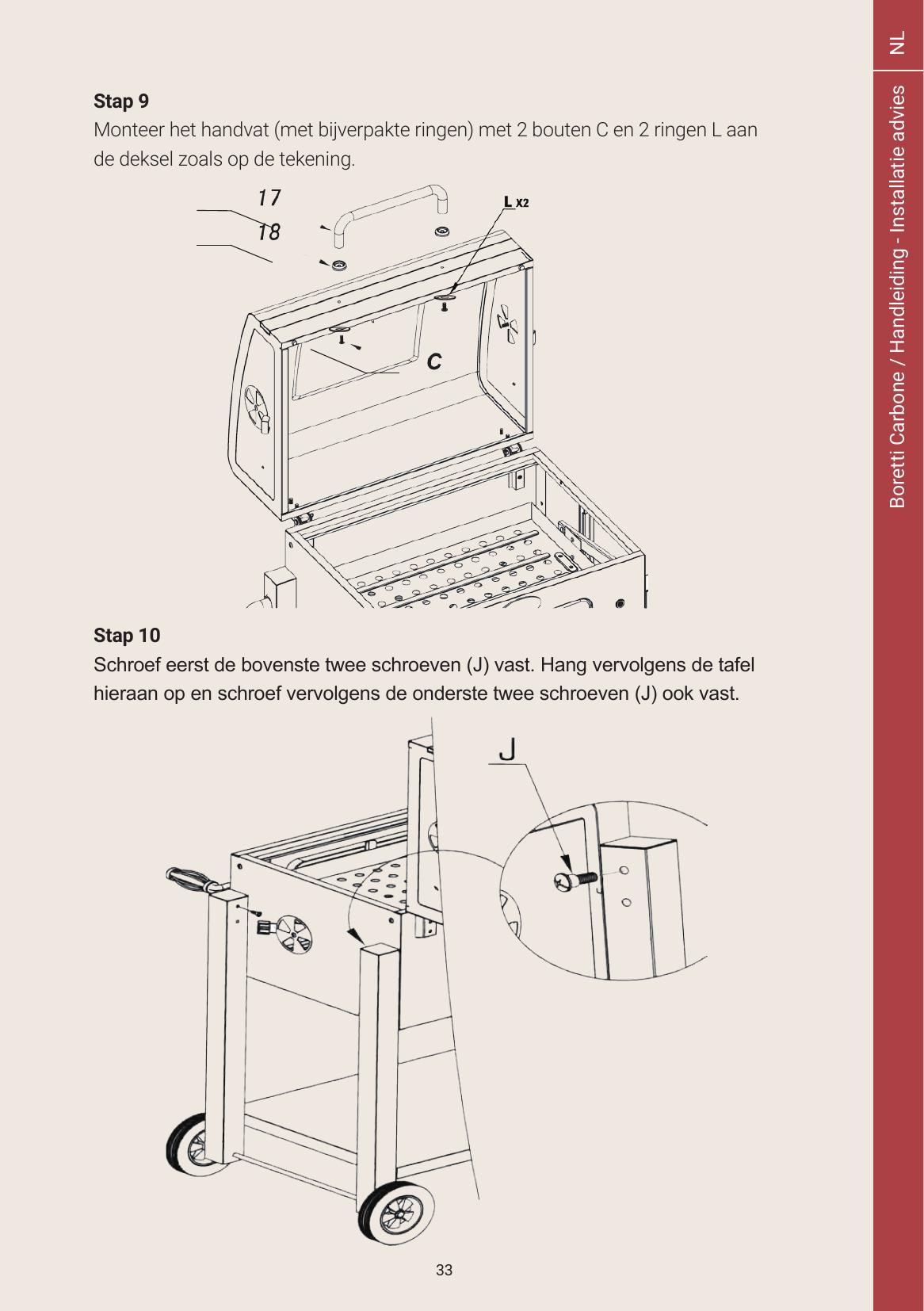

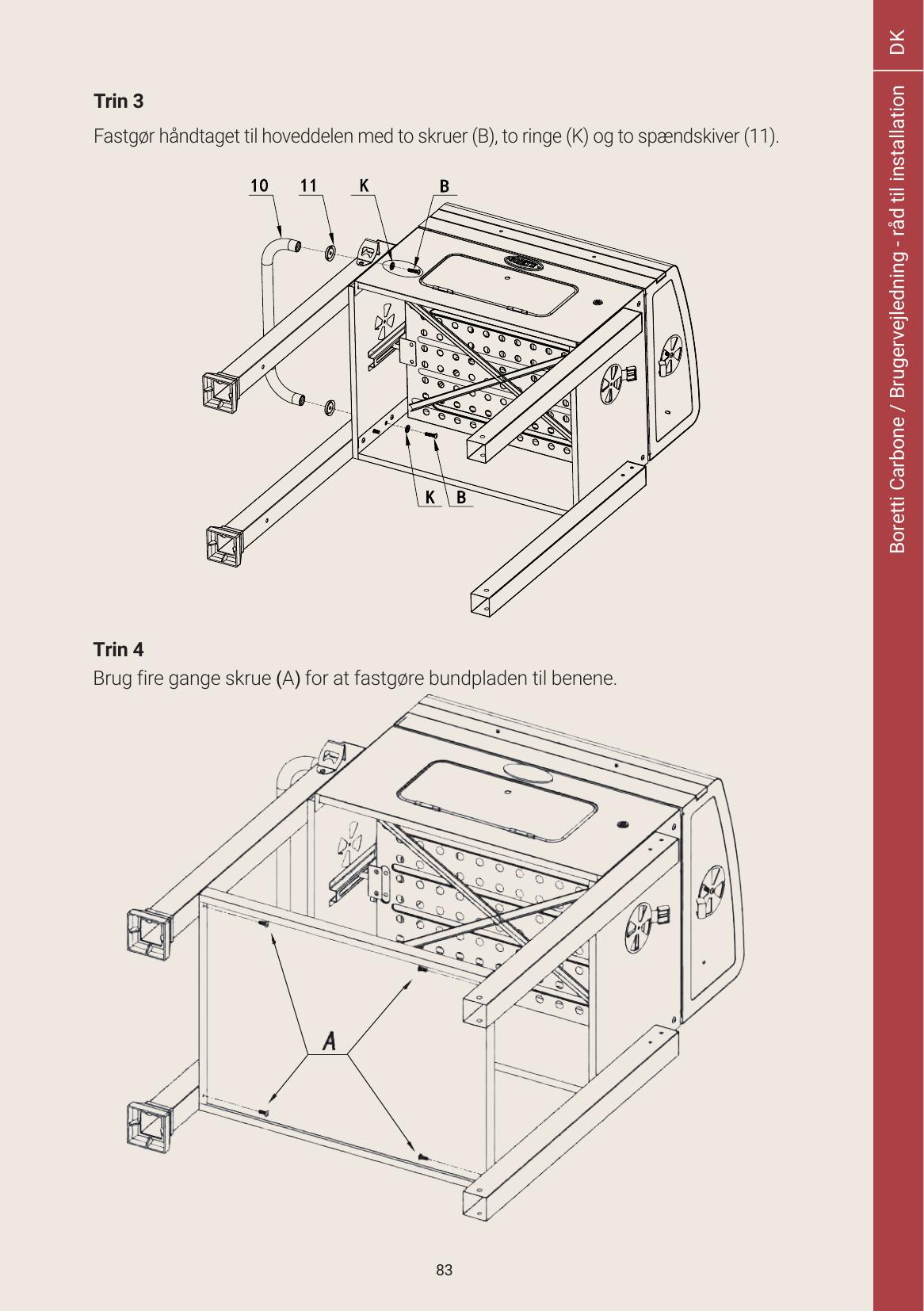

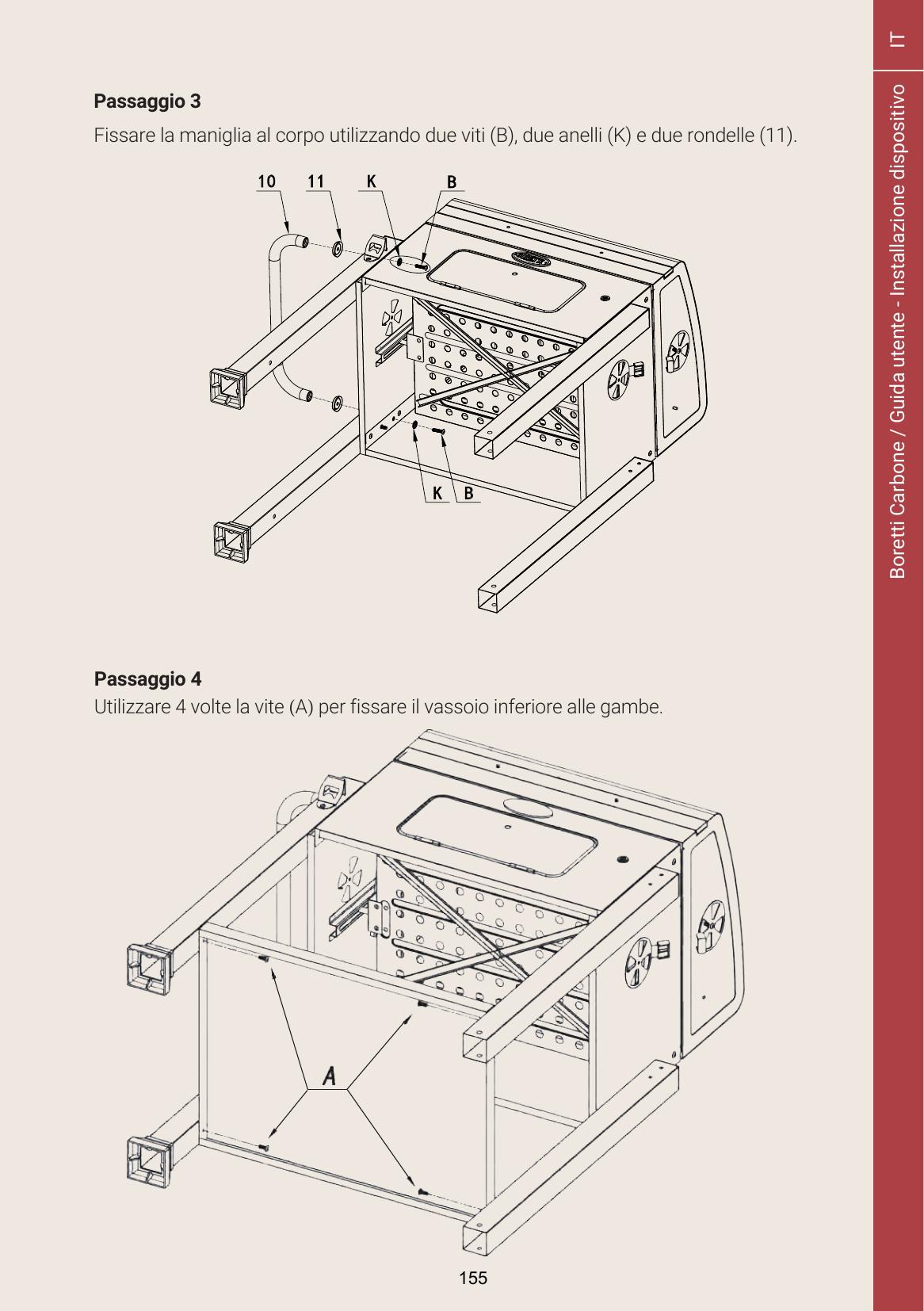

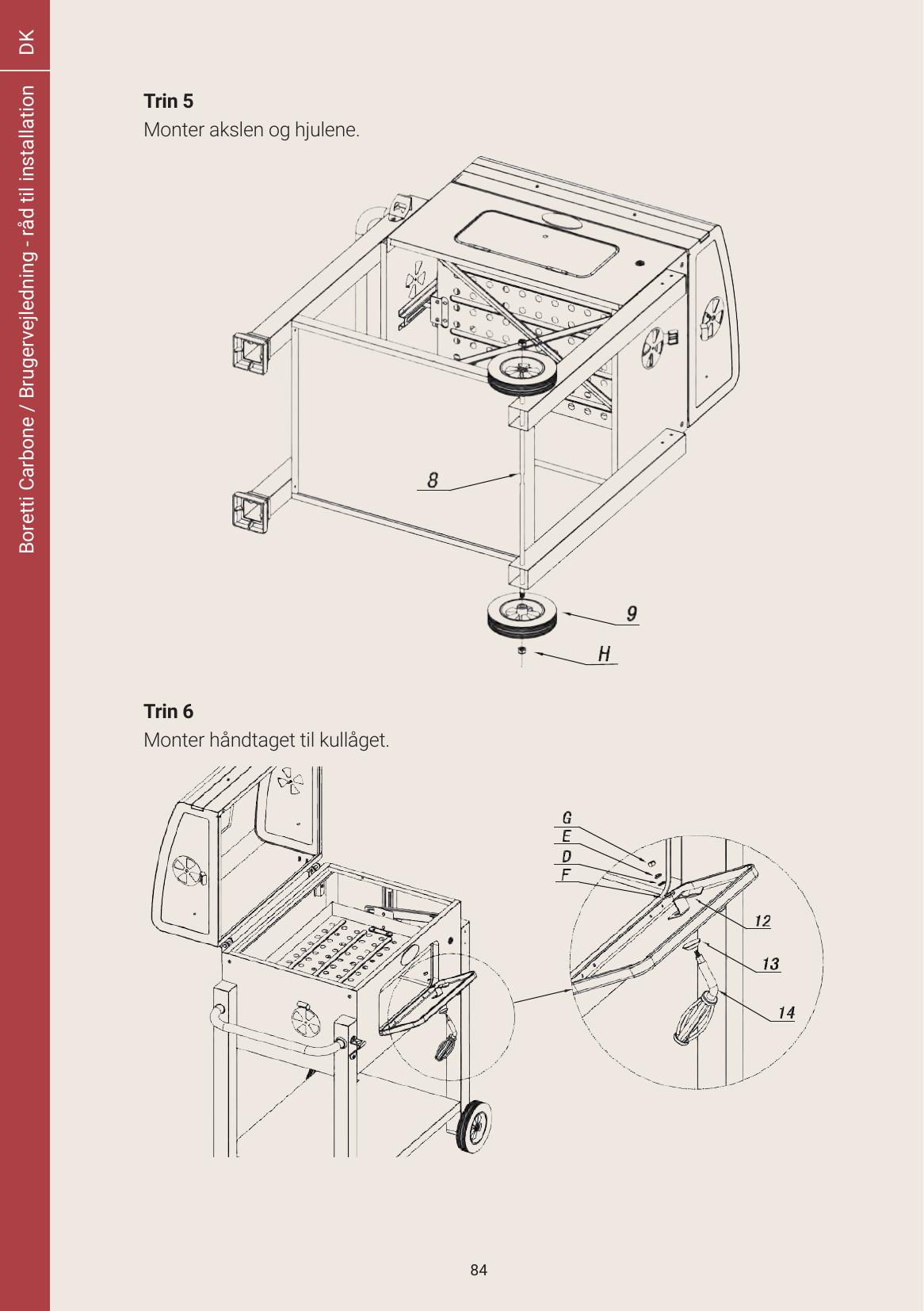

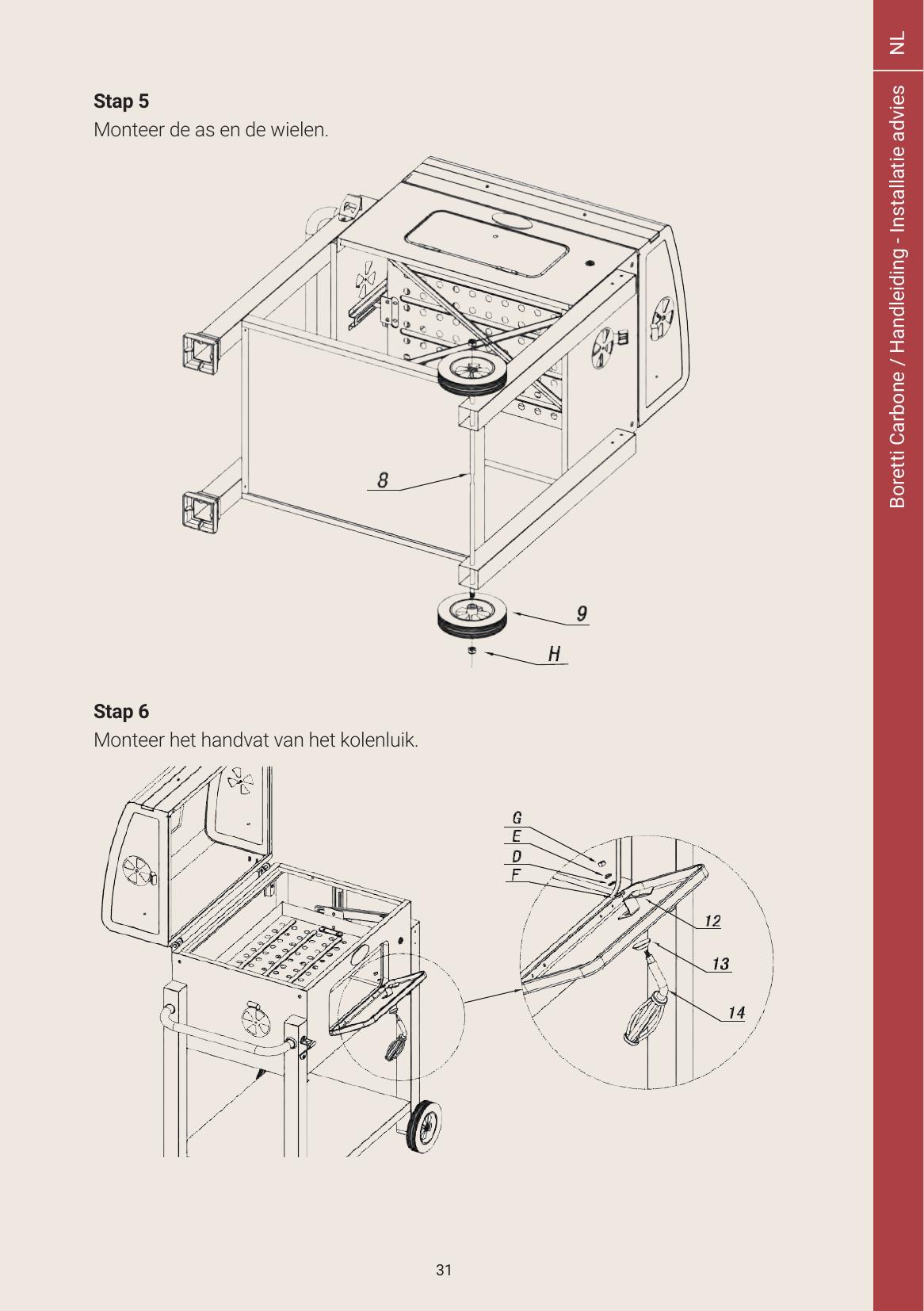

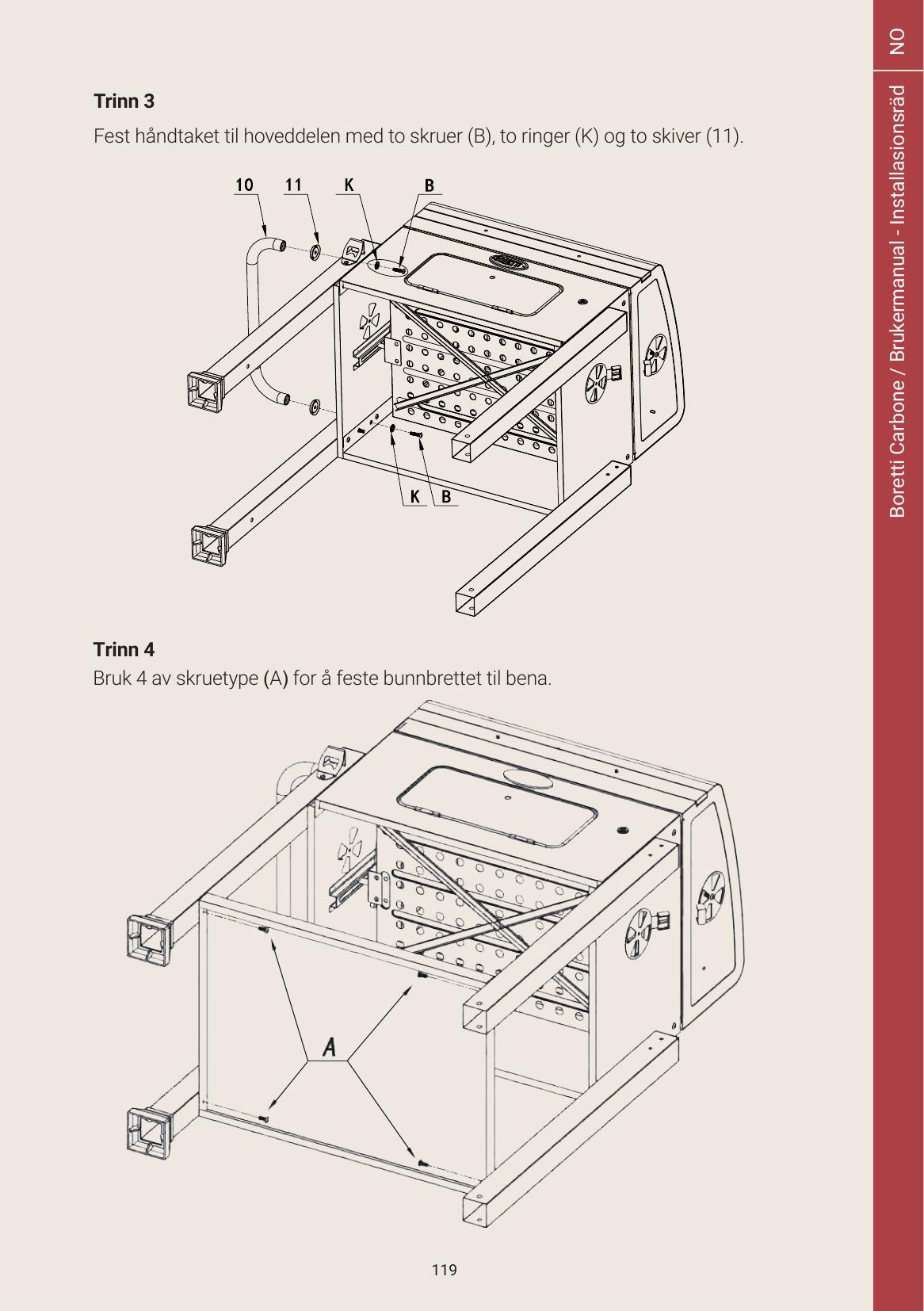

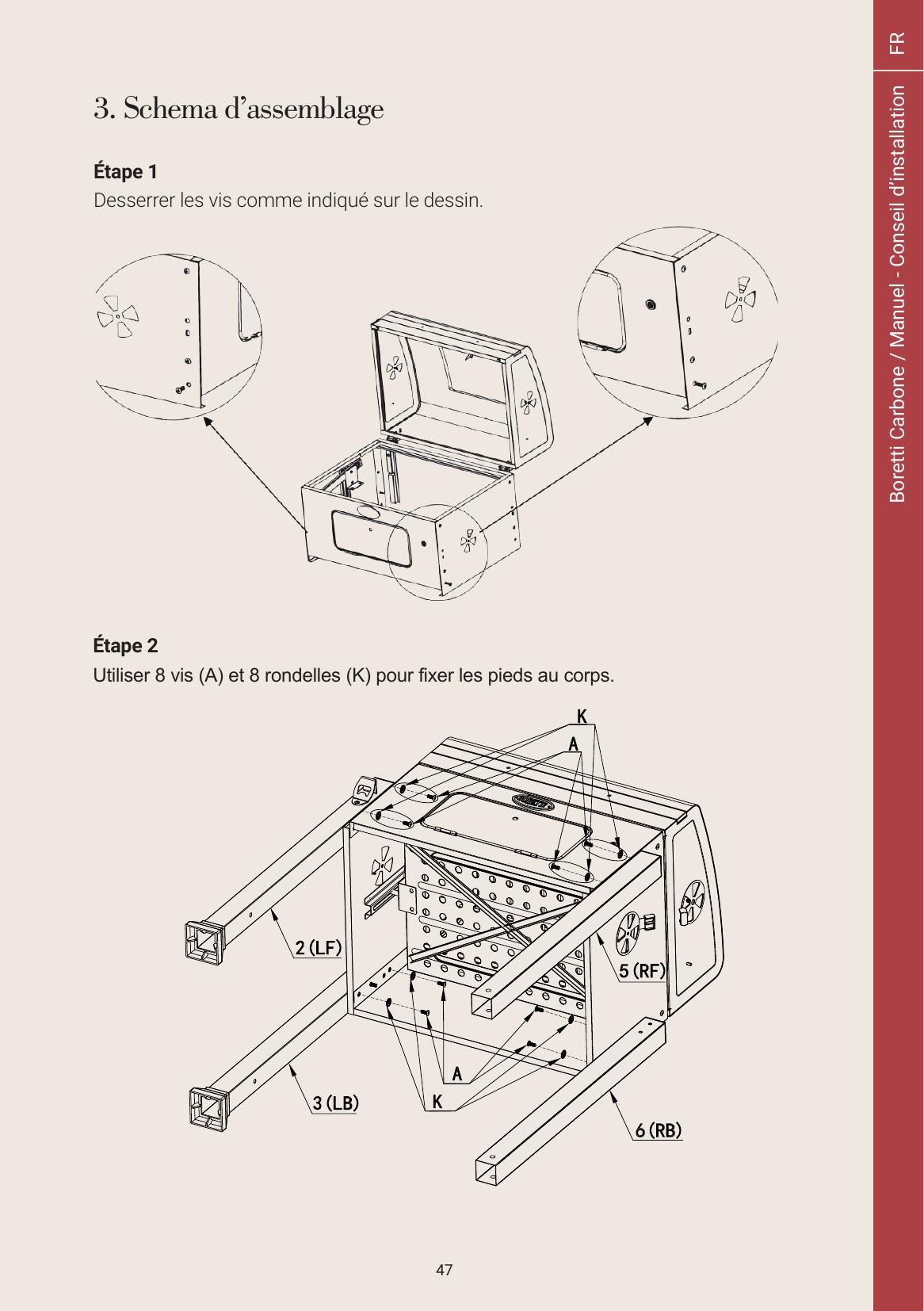

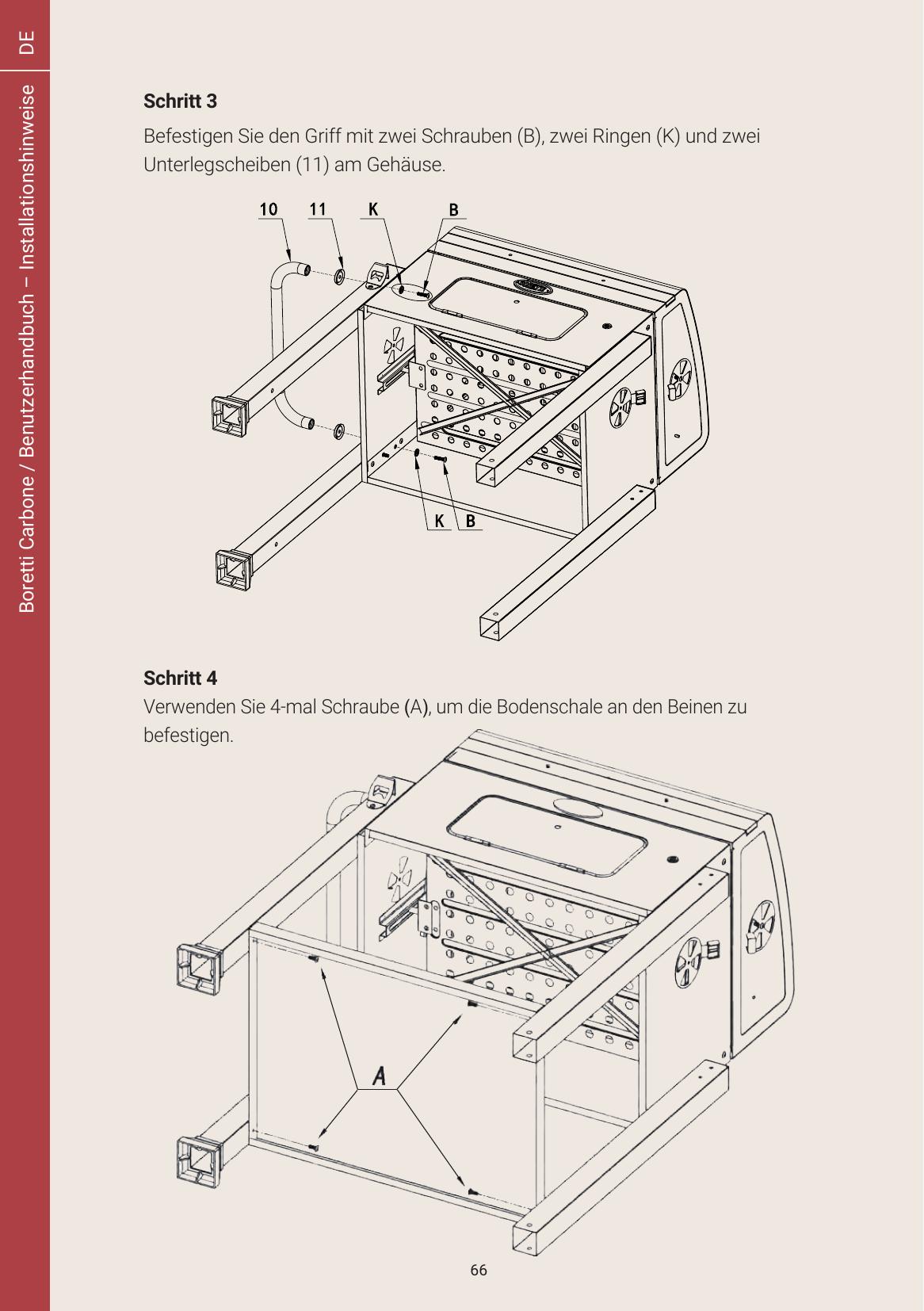

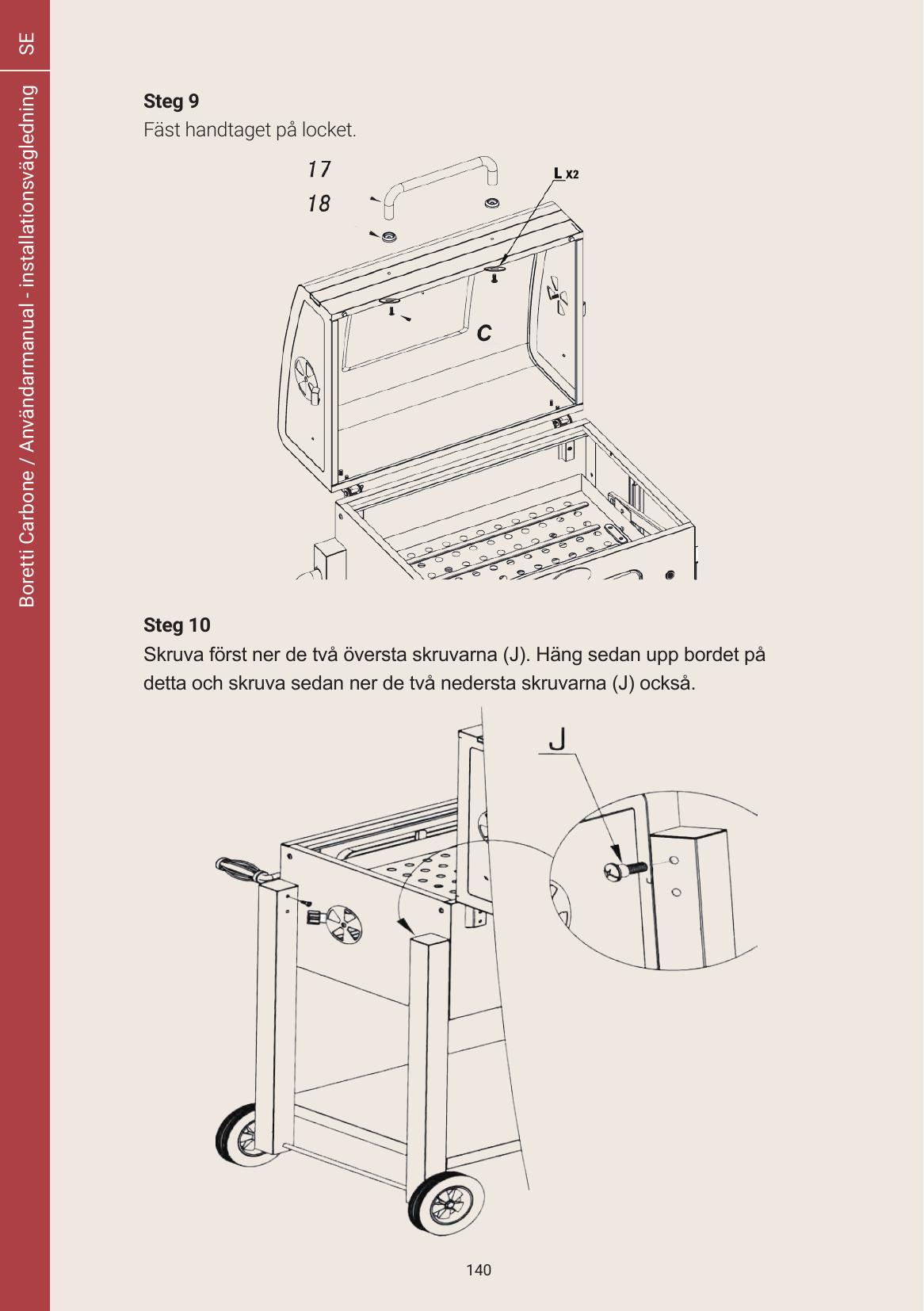

assembly - Page 1 assembly - Page 2 assembly - Page 3 assembly - Page 4 assembly - Page 5 assembly - Page 6 assembly - Page 7 assembly - Page 8 assembly - Page 9 assembly - Page 10 assembly - Page 11 assembly - Page 12 assembly - Page 13 assembly - Page 14 assembly - Page 15 assembly - Page 16 assembly - Page 17 assembly - Page 18 assembly - Page 19 assembly - Page 20 assembly - Page 21 assembly - Page 22 assembly - Page 23 assembly - Page 24 assembly - Page 25 assembly - Page 26 assembly - Page 27 assembly - Page 28 assembly - Page 29 assembly - Page 30 assembly - Page 31 assembly - Page 32 assembly - Page 33 assembly - Page 34 assembly - Page 35 assembly - Page 36 assembly - Page 37 assembly - Page 38 assembly - Page 39 assembly - Page 40 assembly - Page 41 assembly - Page 42 assembly - Page 43 assembly - Page 44 assembly - Page 45 assembly - Page 46 assembly - Page 47 assembly - Page 48 assembly - Page 49 assembly - Page 50 assembly - Page 51 assembly - Page 52 assembly - Page 53 assembly - Page 54
