BCHSB-60 + 90 + 120 - Assembly instructions

  • Updated

This article explains how to assemble the BCHSB-60 + 90 + 120 by Boretti.

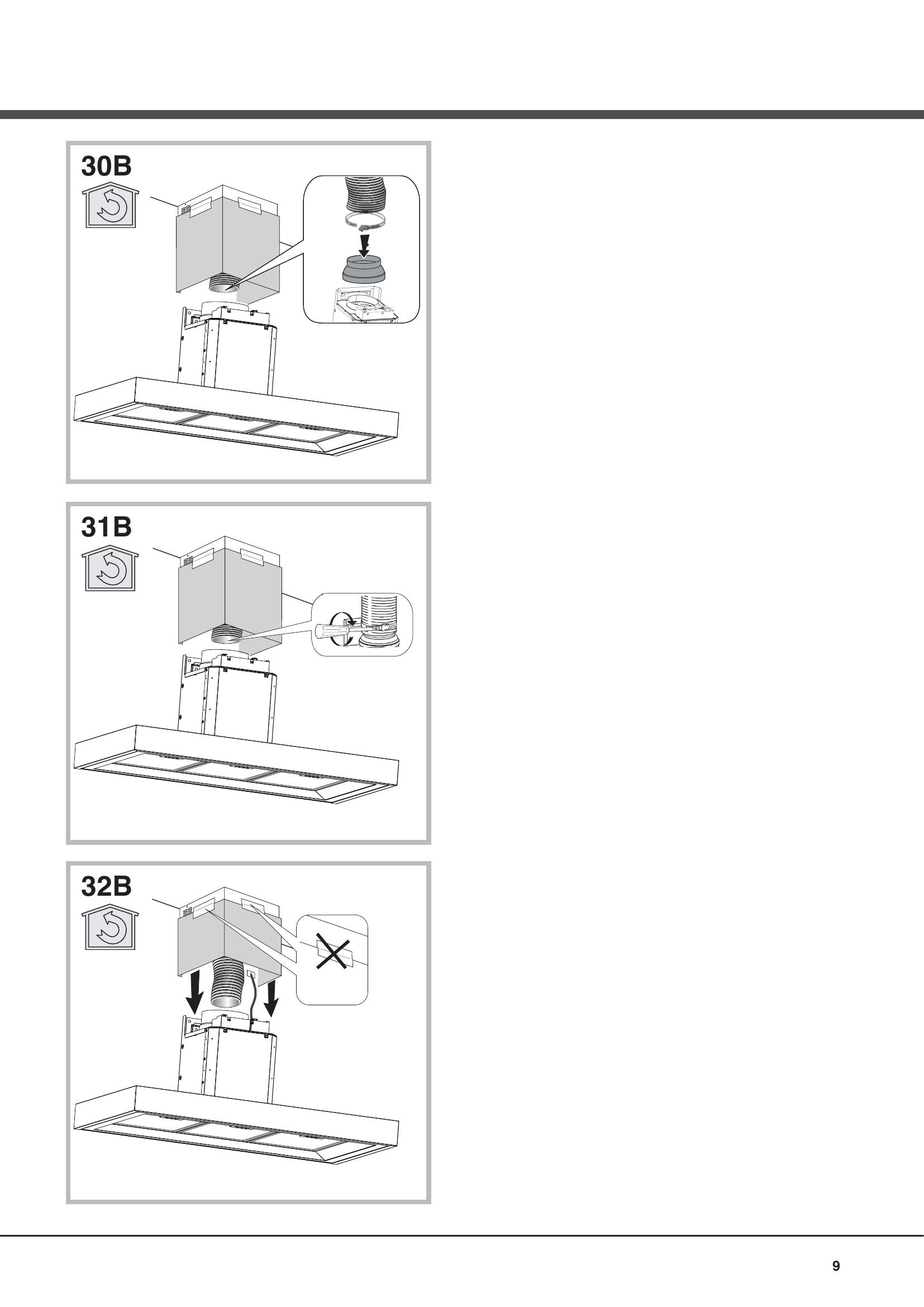

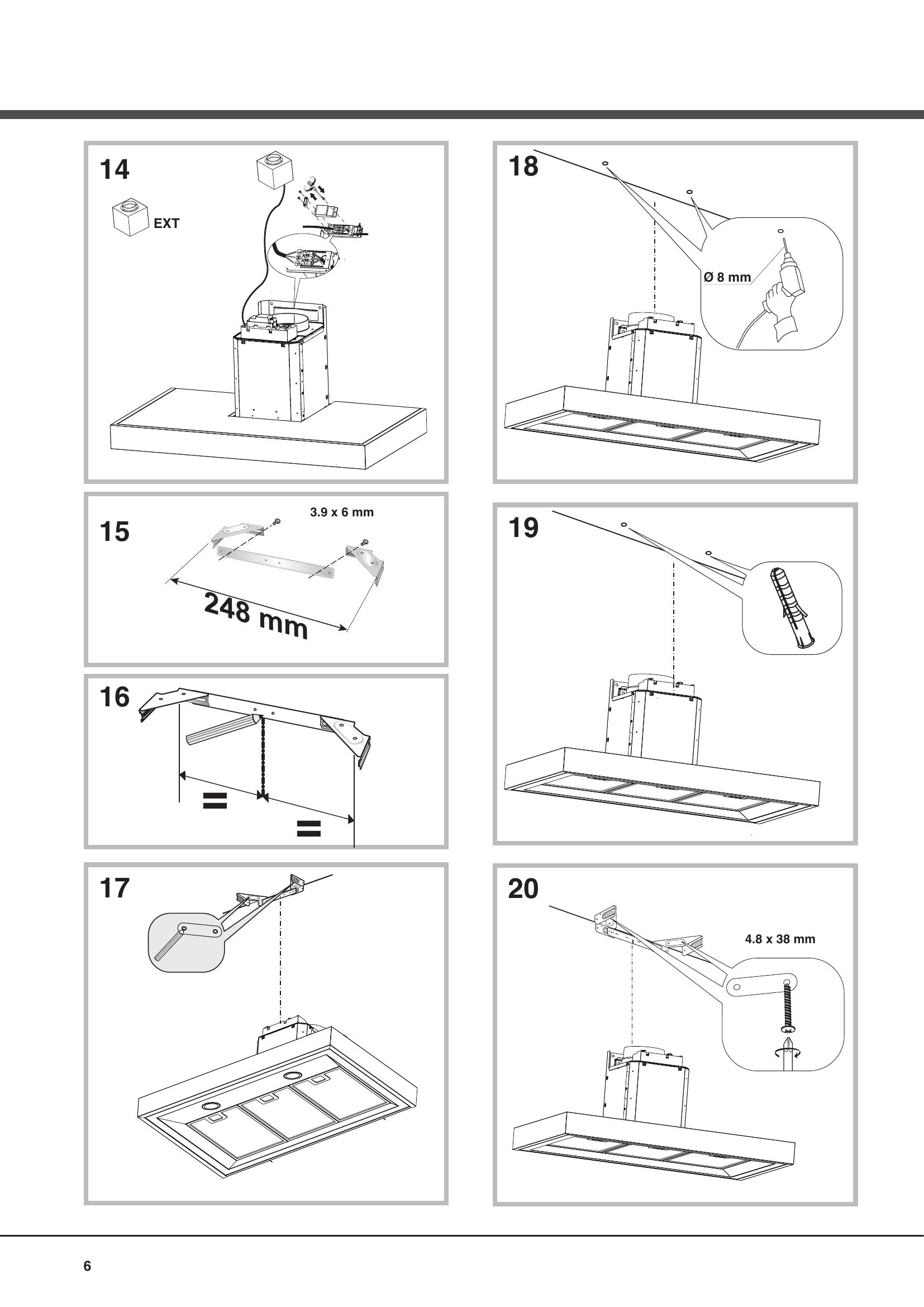

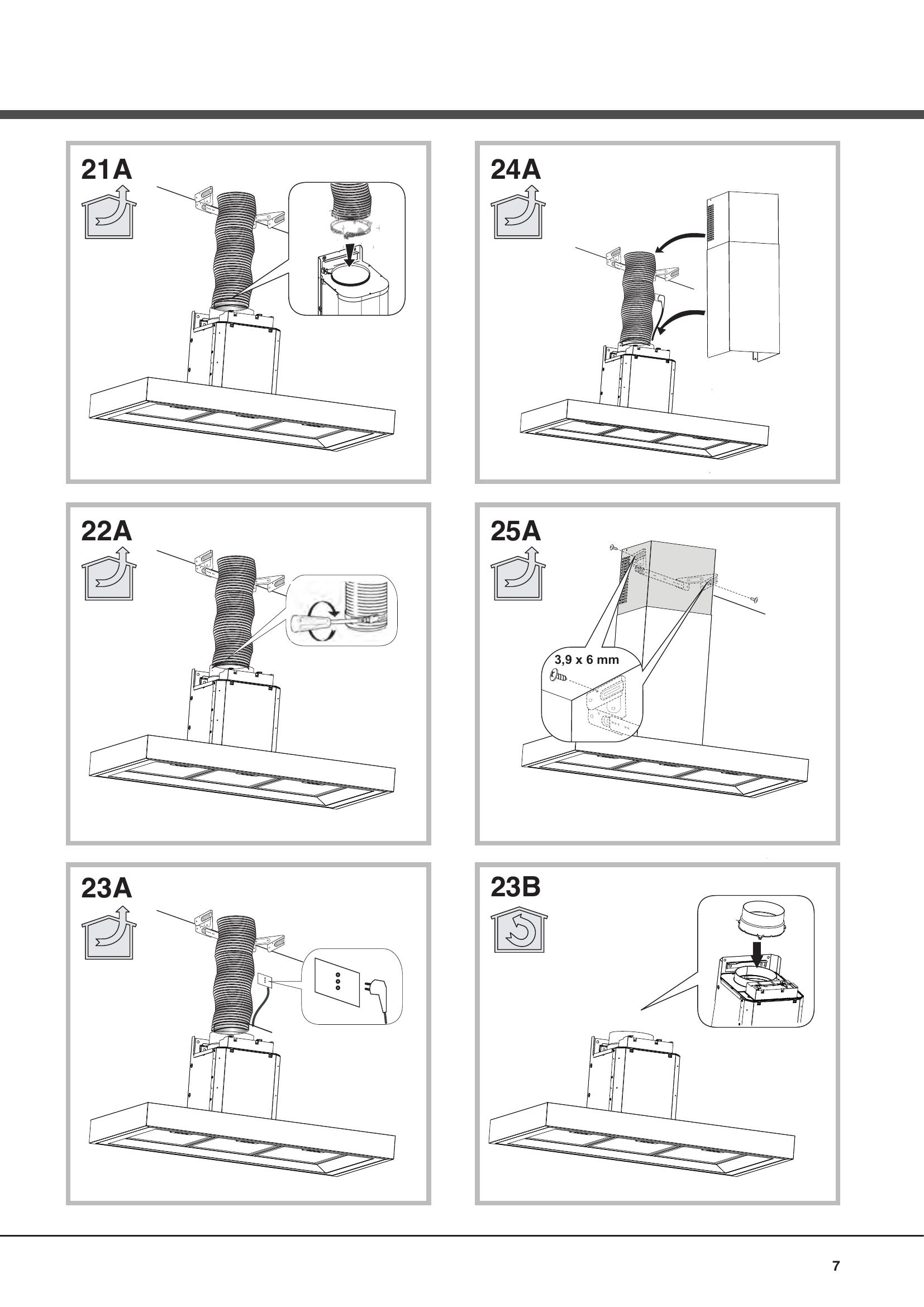

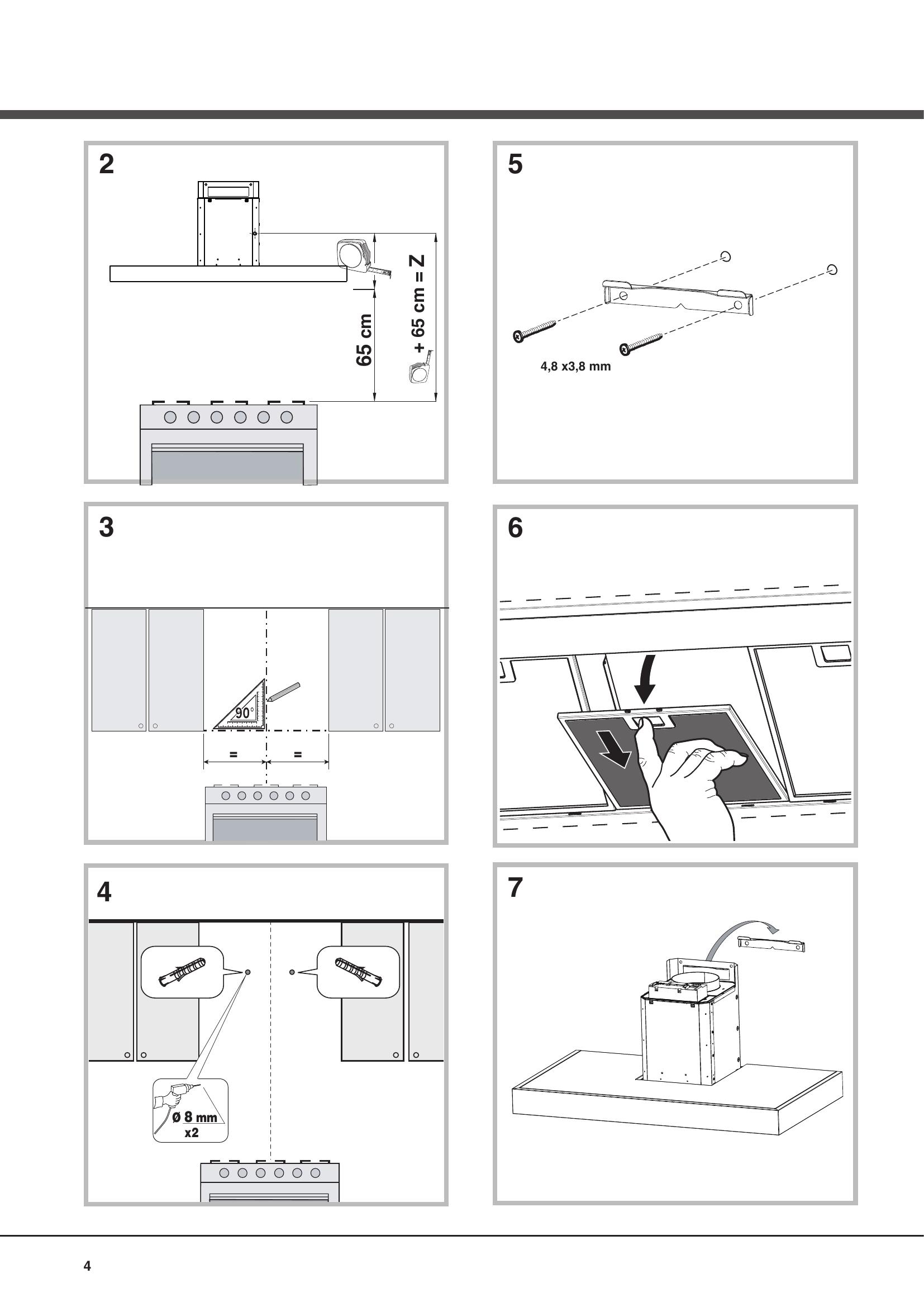

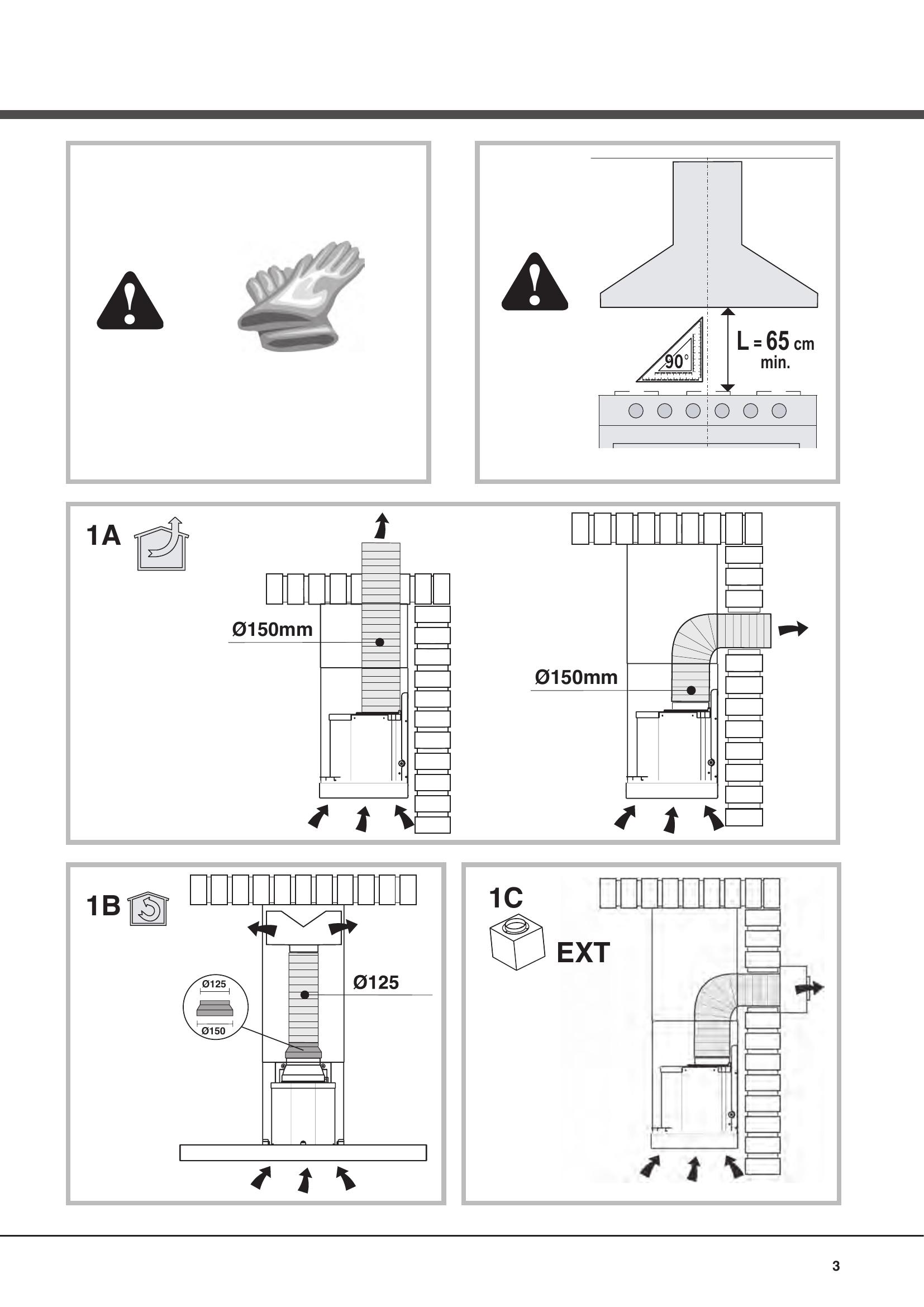

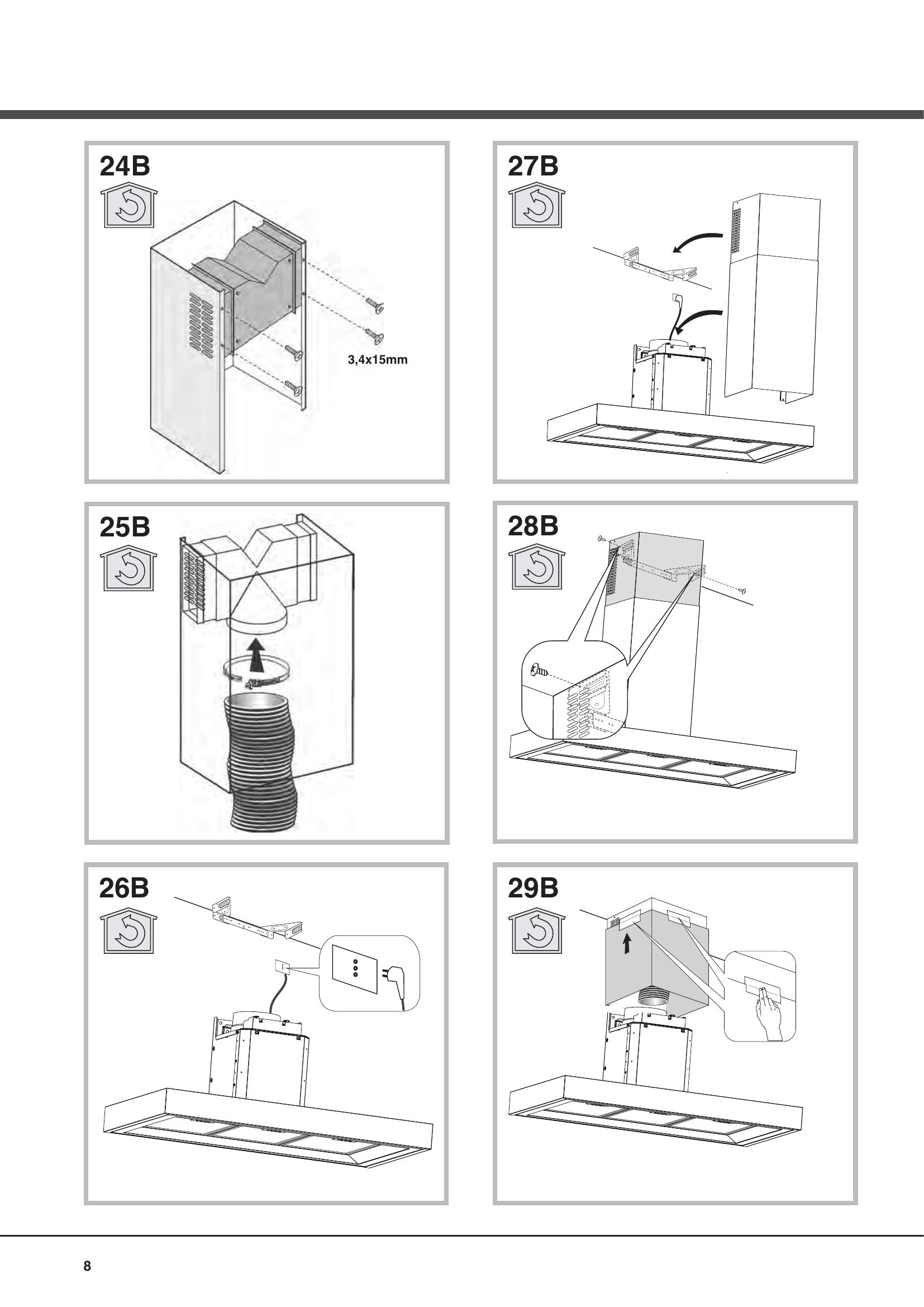

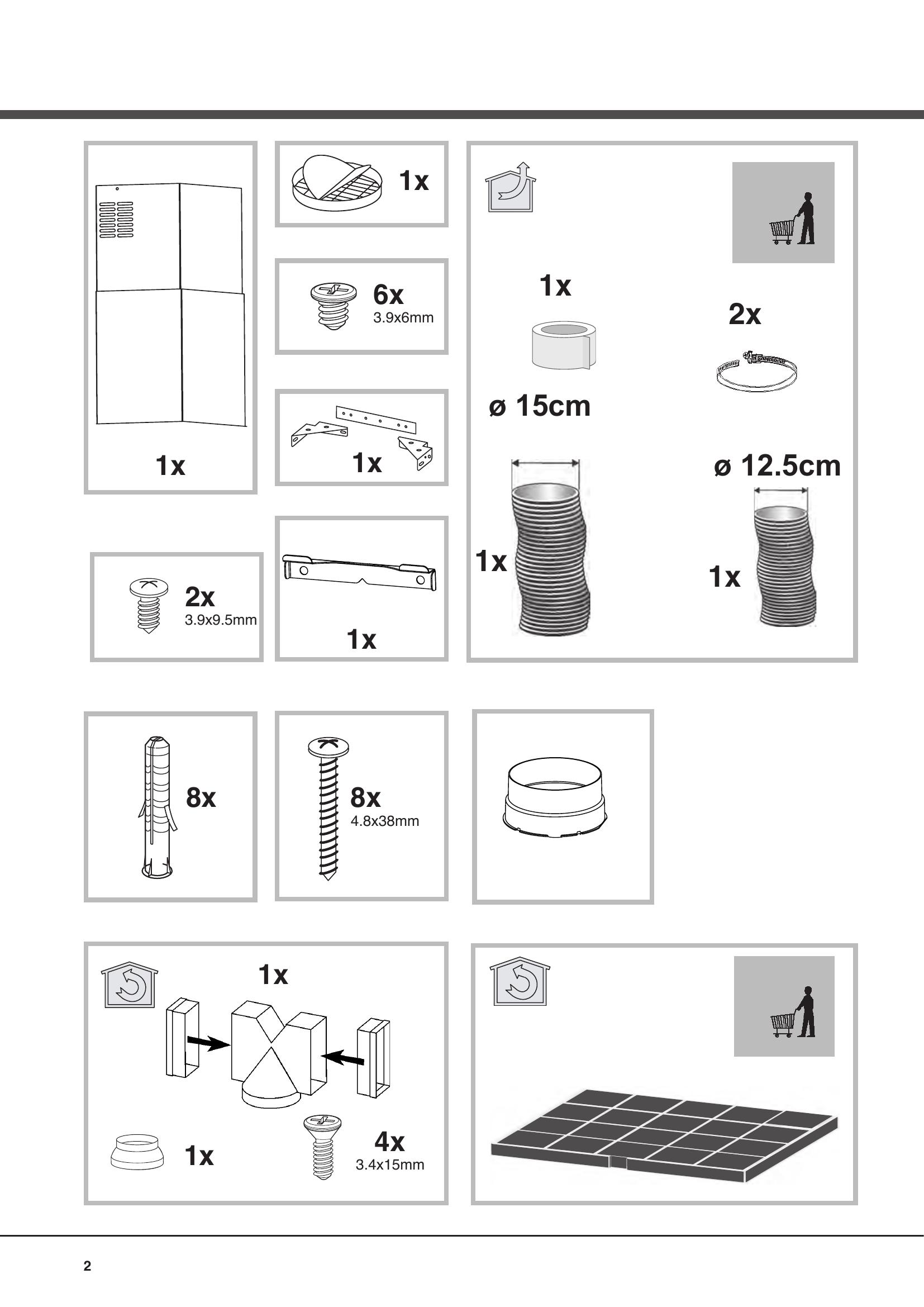

assembly - Page 1 assembly - Page 2 assembly - Page 3 assembly - Page 4 assembly - Page 5 assembly - Page 6 assembly - Page 7 assembly - Page 8
