BGR-88 BGR-116 - Assembly instructions

  • Updated

This article explains how to assemble the BGR-88 BGR-116 by Boretti.

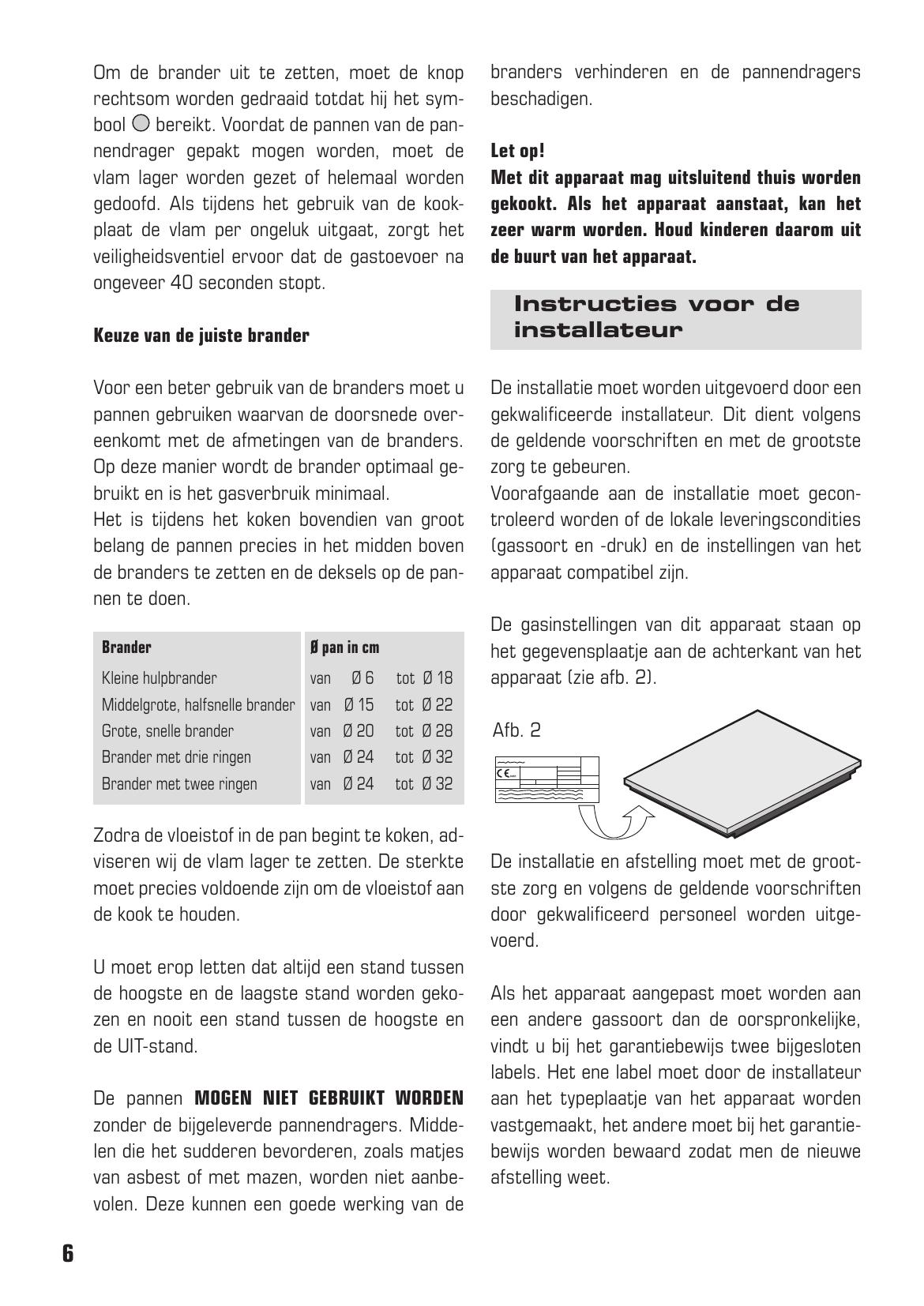

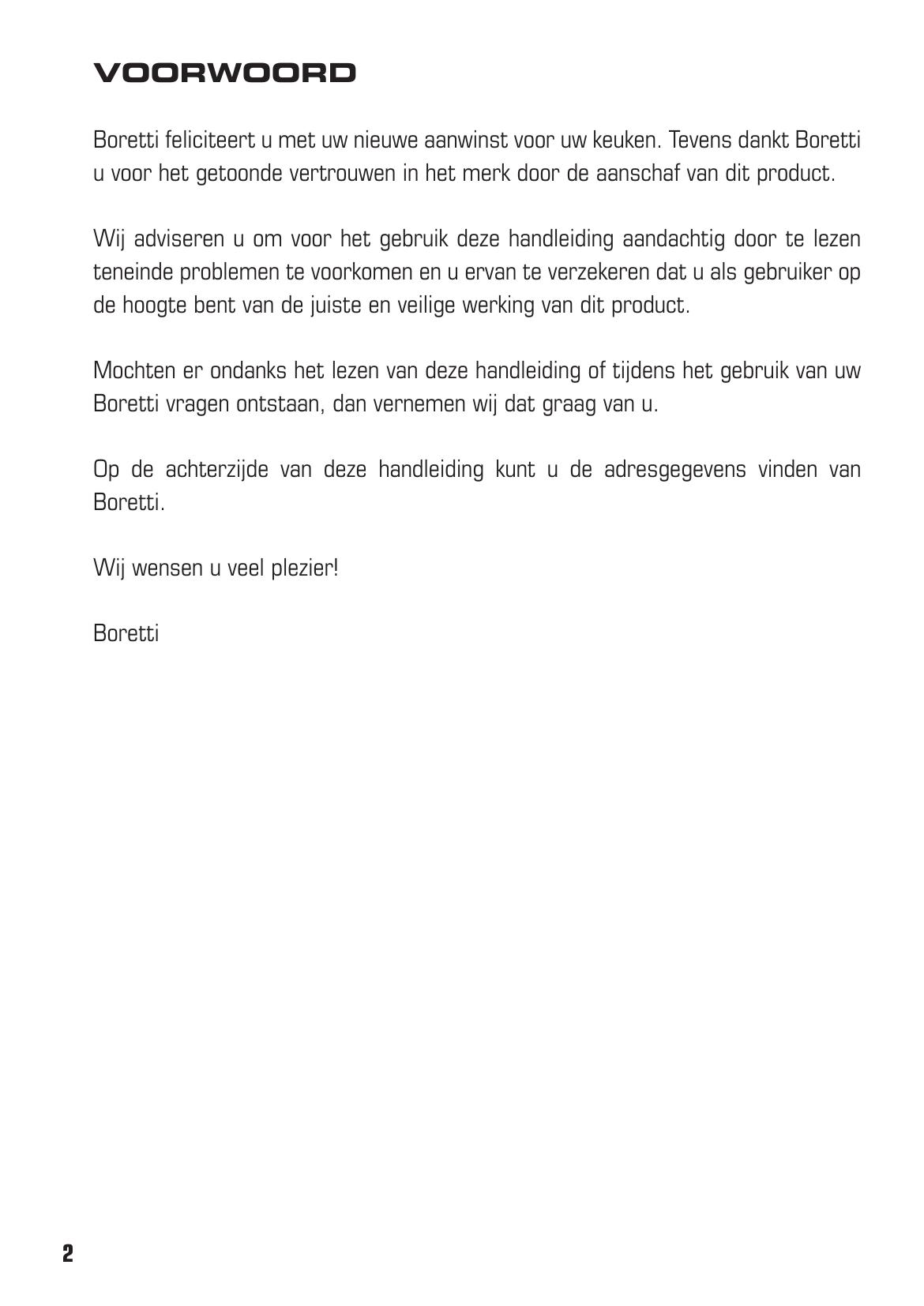

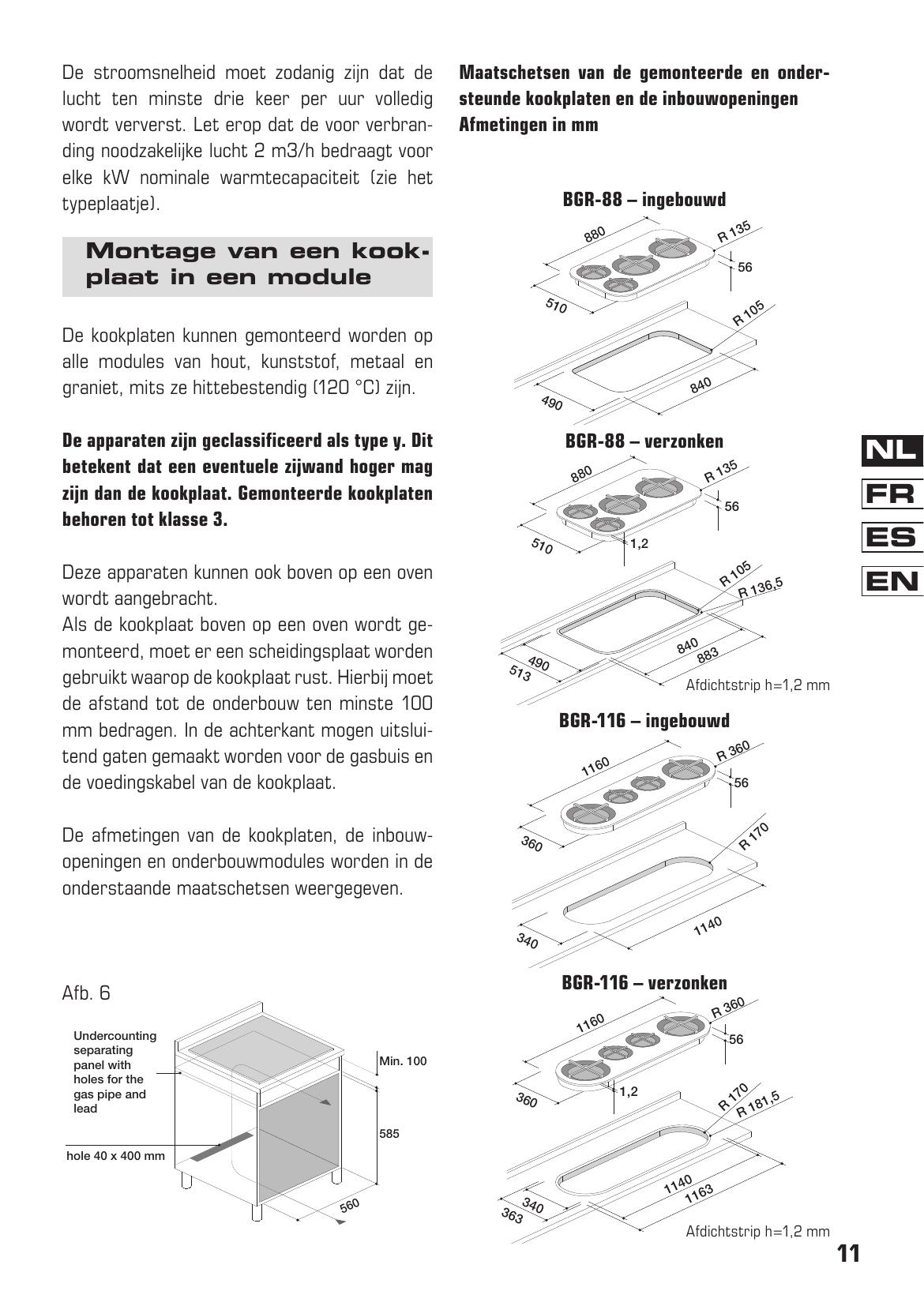

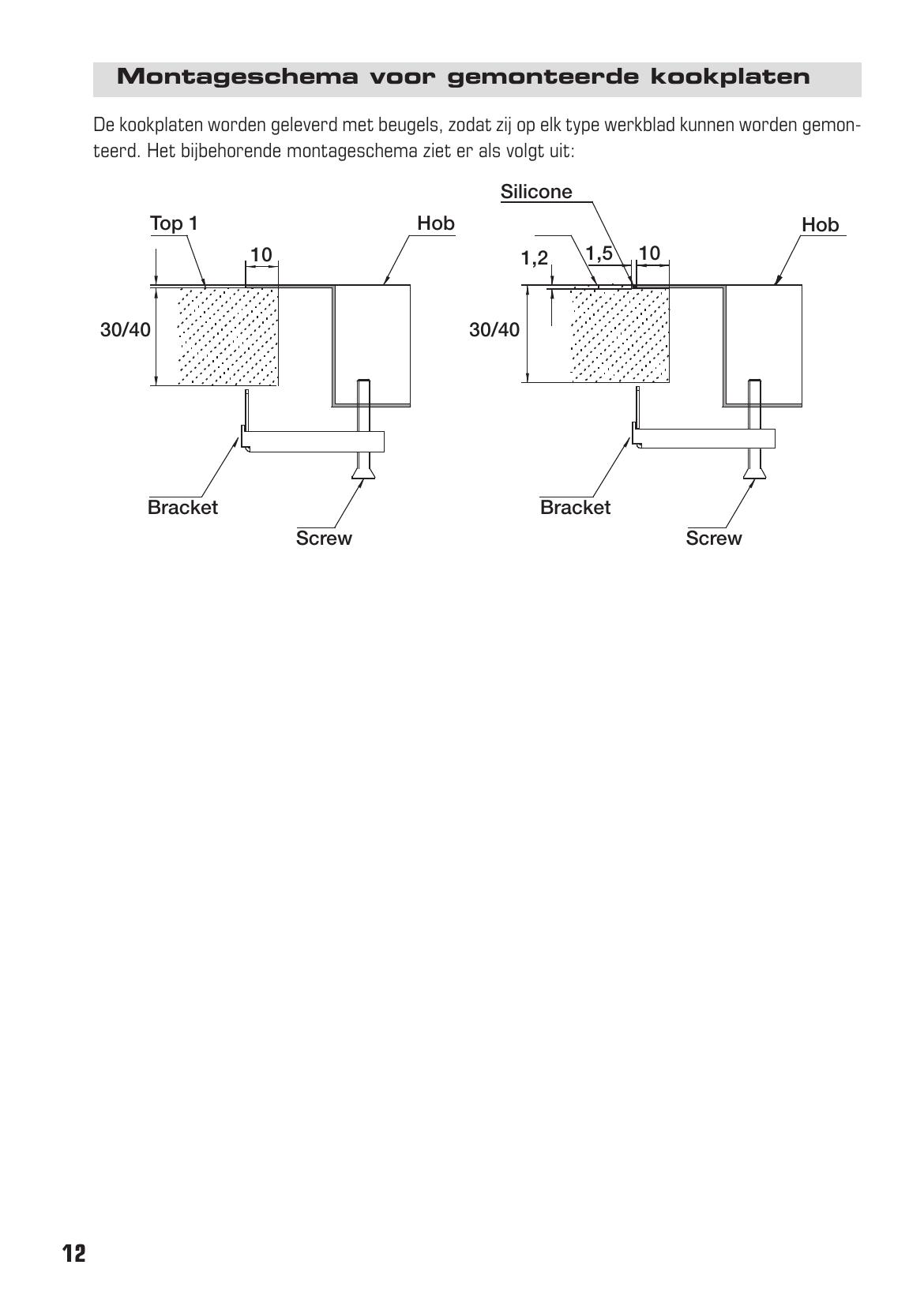

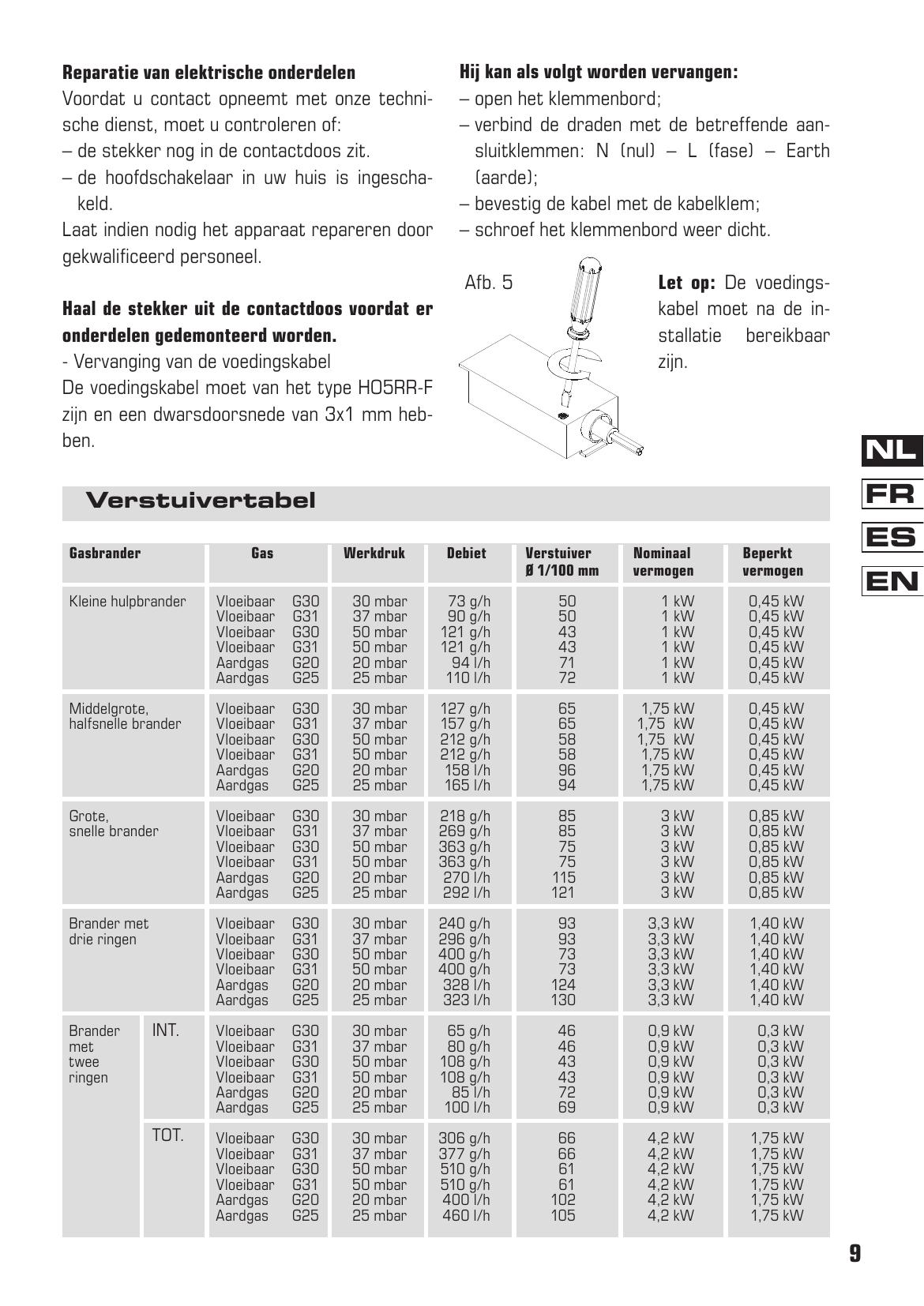

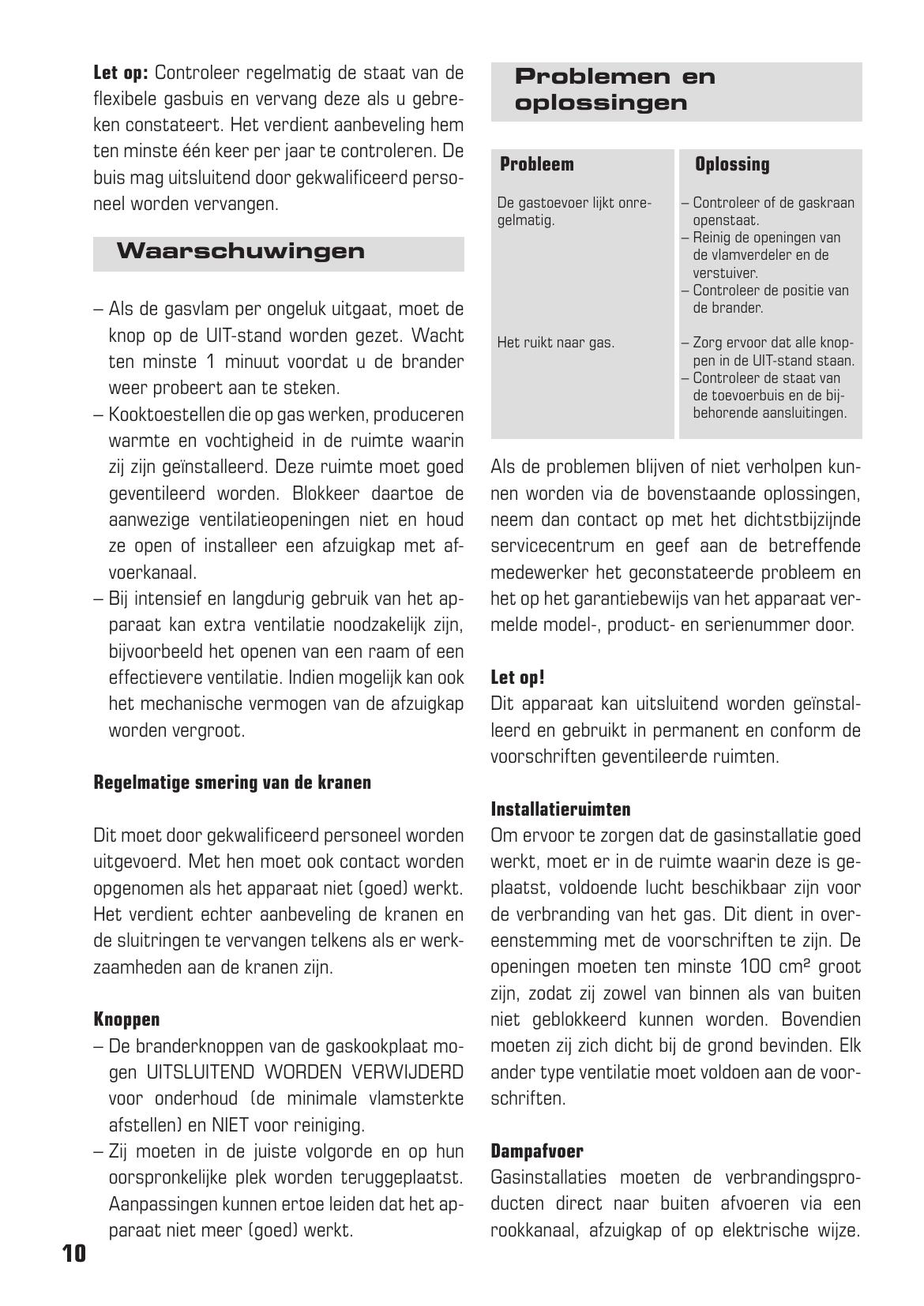

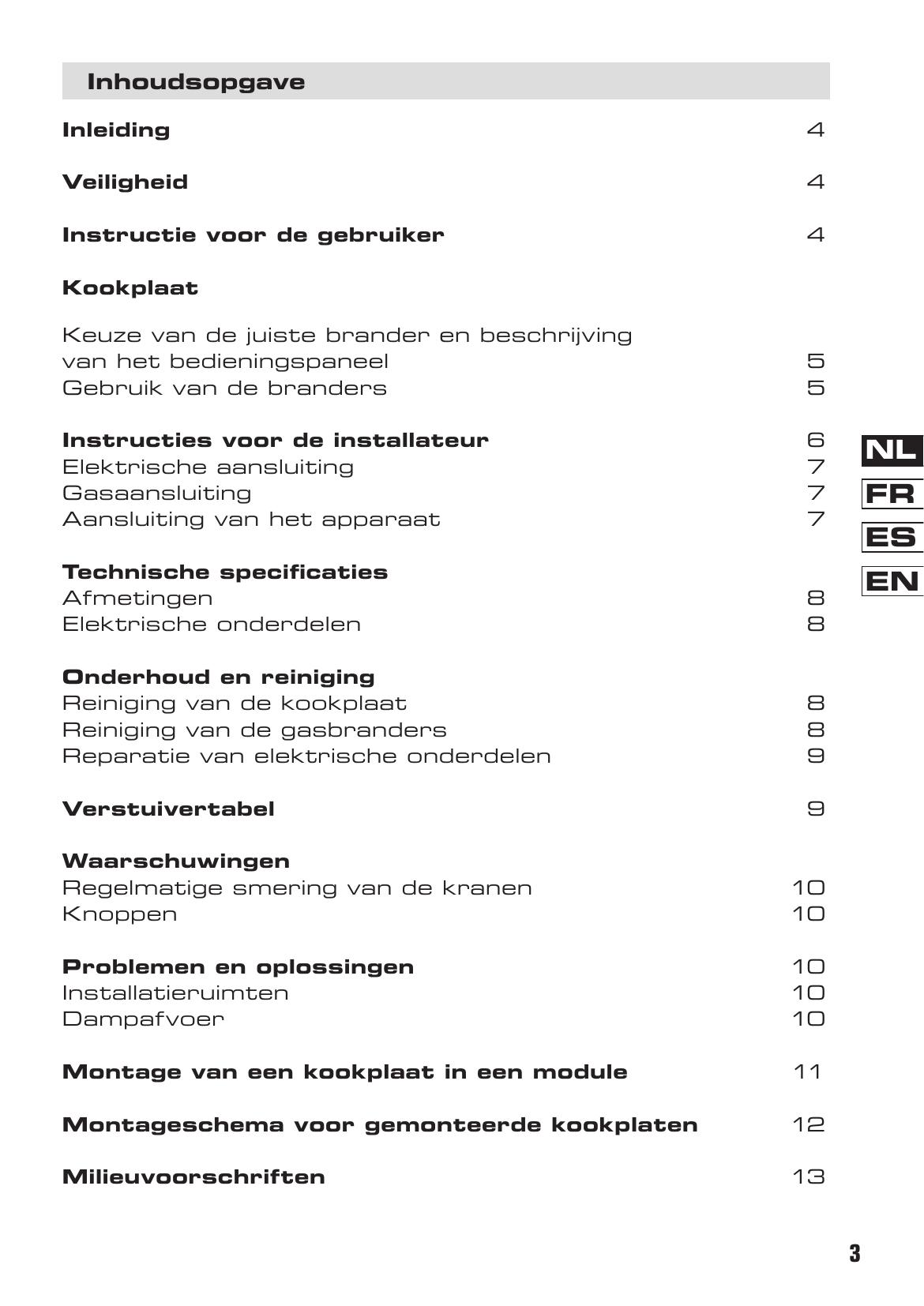

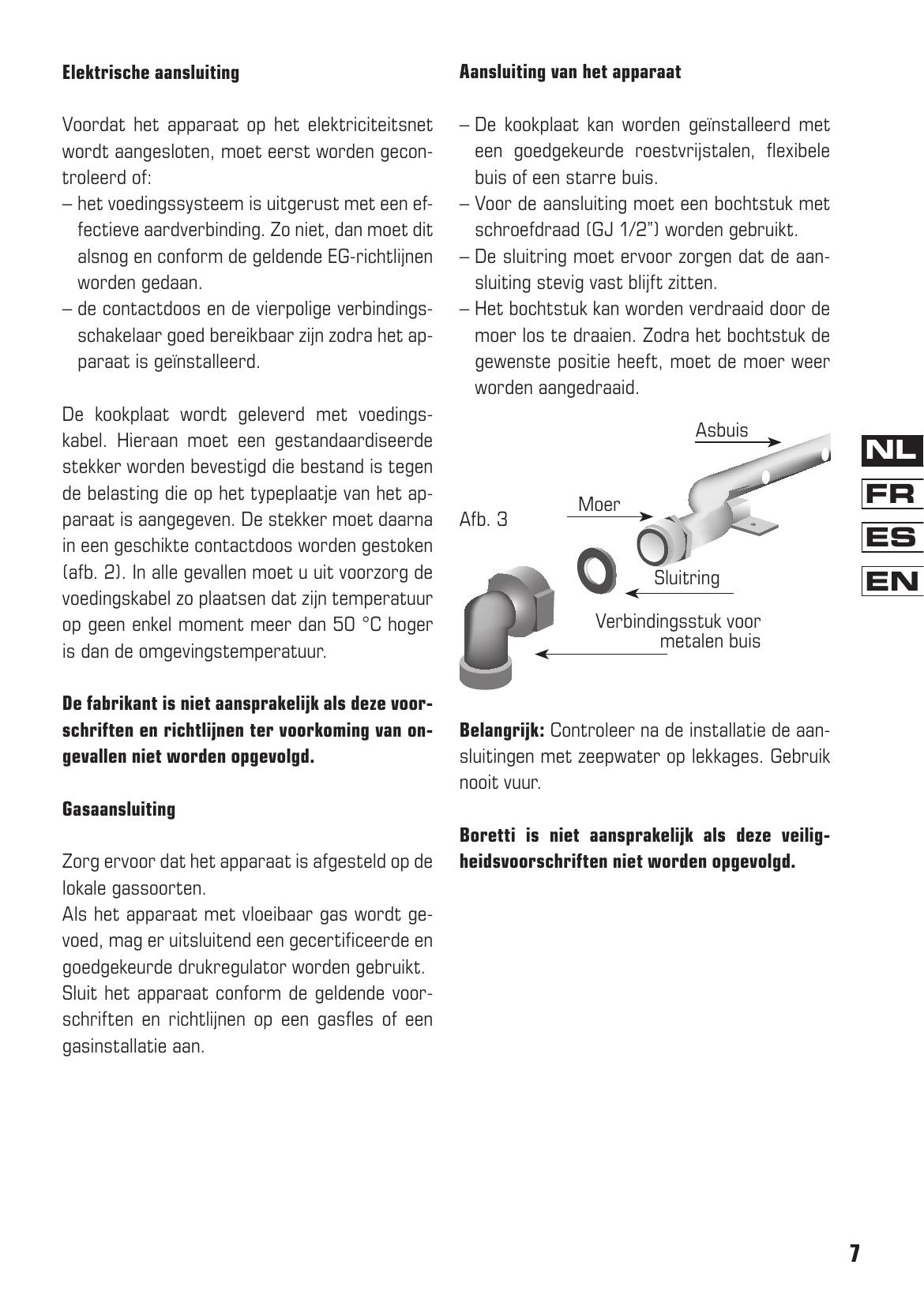

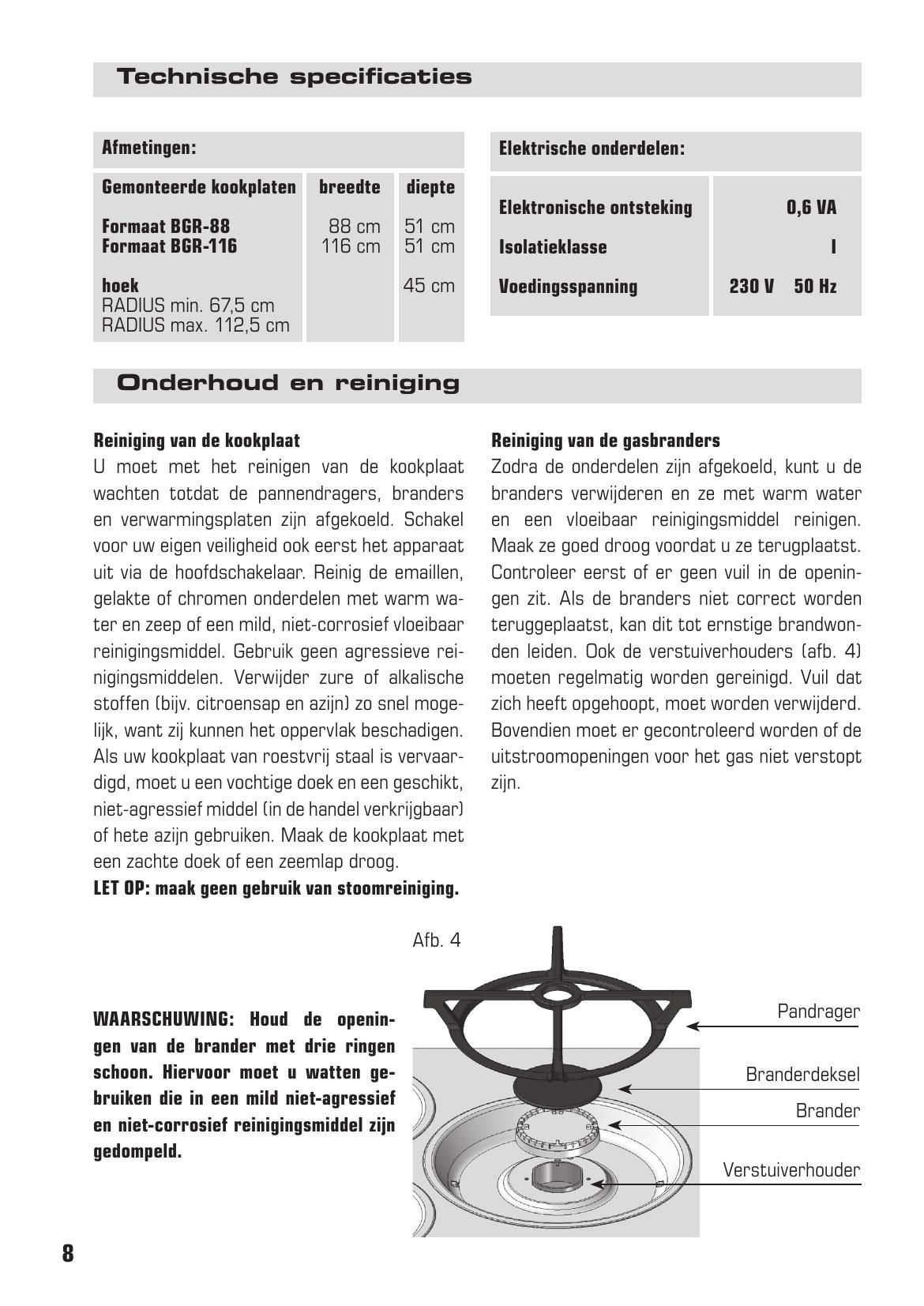

assembly - Page 1 assembly - Page 2 assembly - Page 3 assembly - Page 4 assembly - Page 5 assembly - Page 6 assembly - Page 7 assembly - Page 8 assembly - Page 9
